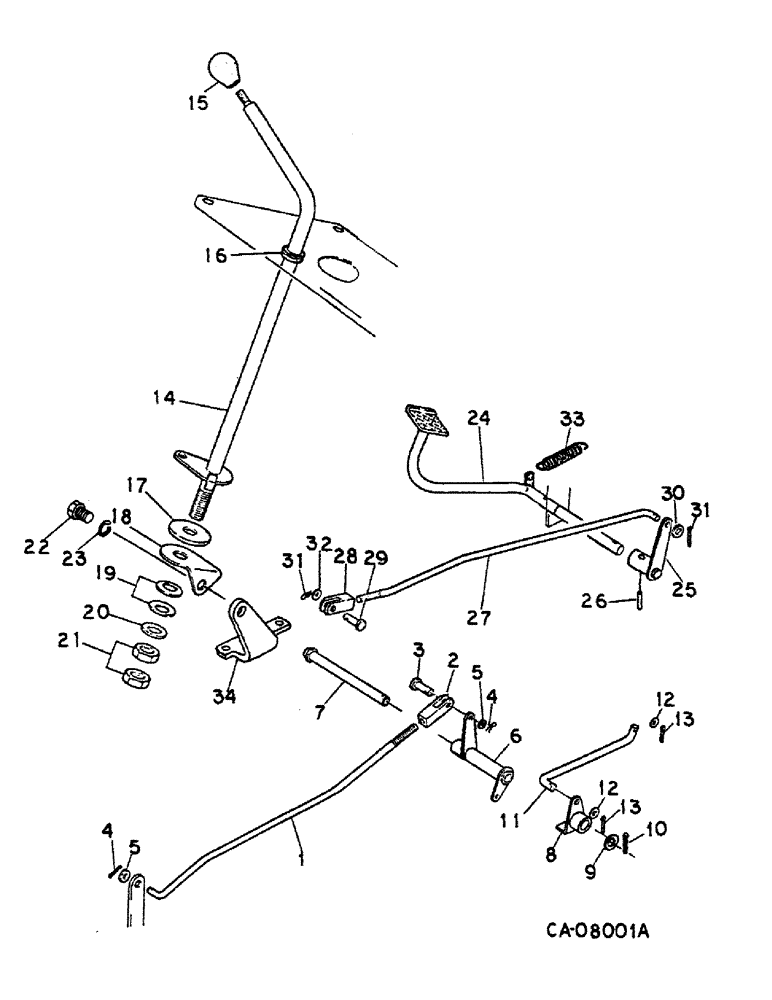

Запчасти Case IH 284 (12-74) - POWER, DIESEL ENGINE, NISSAN, GOVERNOR CONTROL AND FOOT PEDAL ACCELERATOR Power

1

1061731C3

ROD

front

1шт.

2

979839C1

YOKE

1шт.

3

1013637C1

PIN

1шт.

4

988231C1

PIVOT

PIN, cotter

2шт.

5

978085C1

WASHER

M6 x M11.5 x M0.8

2шт.

6

1061734C2

LEVER

BELLCRANK ASSY

1шт.

7

1002807C1

SHAFT

bellcrank

1шт.

8

1061543C3

LEVER

ASSY

1шт.

9

1004527C1

WASHER

M12 x M22 x M2.3

1шт.

10

PIN, 3.2 x 25mm cot., purchase locally

1шт.

11

1061733C2

ROD

1шт.

12

978085C1

WASHER

M6 x M11.5 x M0.8

2шт.

13

988231C1

PIVOT

PIN, cotter

2шт.

14

1434019R1

LEVER

throttle, replaces threaded type lever, 1061735C2 by also ordering knob, 1064560C1 for 2 wheel drive tractors w/serial no. 003010 and below or 4 wheel drive tractors w/serial no. 003046 and below

1шт.

15

1064560C1

KNOB

press fit type, replaces 973707C1

1шт.

16

1014642C3

BUSHING

1шт.

17

394716R1

DISC

GASKET

1шт.

18

974538C2

BRACKET

1шт.

19

1004800C1

SPRING

Belleville

2шт.

20

1014959C1

WASHER

M12 x M26 x M2.3

1шт.

21

1014942C1

NUT

M12

2шт.

22

1014933C1

BOLT

M10 x 20mm

1шт.

23

980493C1

WASHER

M10 lock

1шт.

24

1061726C3

PEDAL

accelerator

1шт.

25

1061738C1

LEVER

1шт.

26

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

27

1061732C1

ROD

rear

1шт.

28

979839C1

YOKE

1шт.

29

1013637C1

PIN

1шт.

30

1061819C1

WASHER

1шт.

31

988231C1

PIVOT

PIN, cotter

2шт.

32

25742R1

WASHER

.531 x .750 x .105

1шт.

33

383997R1

SPRING

pedal return

1шт.

34

1057952C1

BRACKET

hand throttle, tractors w/all wheel drive

1шт.

1060479C1

BOLT

M8 x 35

2шт.

989463C1

WASHER

M10 lock

2шт.

980498C1

BOLT (SPREADER)

BOLT, M10 x 30

1шт.

989464C1

WASHER

M10 x M22 x M3.2

1шт.

980494C1

NUT

M10

1шт.
