(12-60) - POWER, DIESEL ENGINE, NISSAN, FUEL INJECTION PUMP AND FILTER

Запчасти Case IH 284 (12-60) - POWER, DIESEL ENGINE, NISSAN, FUEL INJECTION PUMP AND FILTER Power

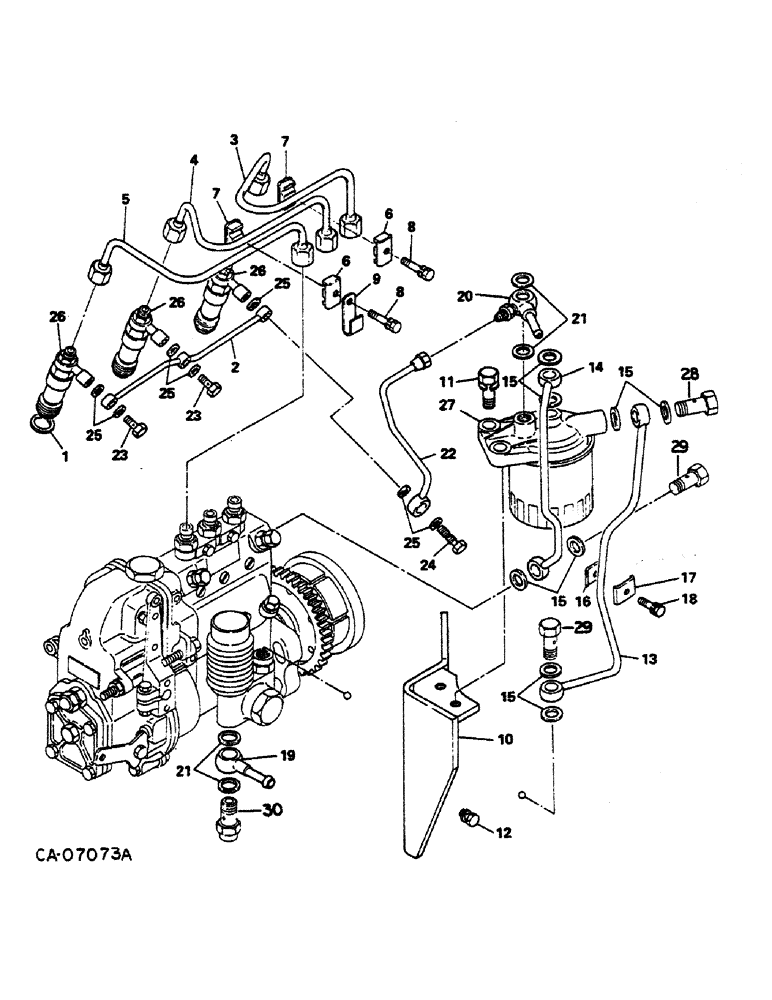

Схема запчастей Case IH 284 - (12-60) - POWER, DIESEL ENGINE, NISSAN, FUEL INJECTION PUMP AND FILTER Power
11
2
26
16
25
7
25
15
5
26
23
4
25
13
23
21
24
29
12
7
26
21
28
9
8
19
6
27
17
1
14
29
30
3
15
22
15
25
10
8
18
20
16
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1058168C1

GASKET

nozzle

3шт.

2

1058176C1

TUBE

fuel return

1шт.

3

1058180C1

TUBE

ASSY, injection no. 1

1шт.

4

1058181C1

TUBE

ASSY, injection no. 2

1шт.

5

1058182C1

TUBE

ASSY, injection no. 3

1шт.

6

1058183C1

SUPPORT

tube

2шт.

7

1058184C1

SUPPORT

tube

2шт.

8

1058405C1

BOLT

WITH WASHER, M6 x 30mm

2шт.

9

1058327C1

CLIP

harness

1шт.

10

1058101C2

BRACKET

fuel filter

1шт.

11

478543C1

BOLT

WITH WASHER, M10 x 30mm

2шт.

12

478542C1

BOLT

M8 x 20mm, replaces 487296C1

2шт.

1058388C1

WASHER

M8 lock

2шт.

13

1058217C1

TUBE

ASSY, fuel

1шт.

14

1058218C1

TUBE

ASSY, fuel, Serial Range: filter-pump

1шт.

15

1058360C1

GASKET

8шт.

16

1058177C1

CLIP

tube

1шт.

17

1058178C1

CLIP

tube

1шт.

18

1058367C1

BOLT

WITH WASHER, M6 x 20mm

1шт.

19

1058174C1

CONNECTOR, ELEC

CONNECTOR

1шт.

20

1058175C1

CONNECTOR, ELEC

CONNECTOR

1шт.

21

1058360C1

GASKET

4шт.

22

1058179C1

TUBE

fuel return

1шт.

23

486810C1

BOLT

eye

2шт.

24

486812C1

BOLT

eye

1шт.

25

486811C1

GASKET

replaces 1058403C1

7шт.

26

486813C91

INJECTOR ASSY.

NOZZLE & HOLDER ASSY, for details see list of parts under details of fuel injection nozzle

1шт.

27

1062100C91

FILTER CARTRIDGE

FILTER ASSY, fuel, for components see list of parts under details of fuel filter

1шт.

28

1058106C1

CONNECTOR, ELEC

CONNECTOR

1шт.

29

504260C1

BOLT

eye

2шт.

30

478461C91

BOLT

W/SCREEN, eye

1шт.
