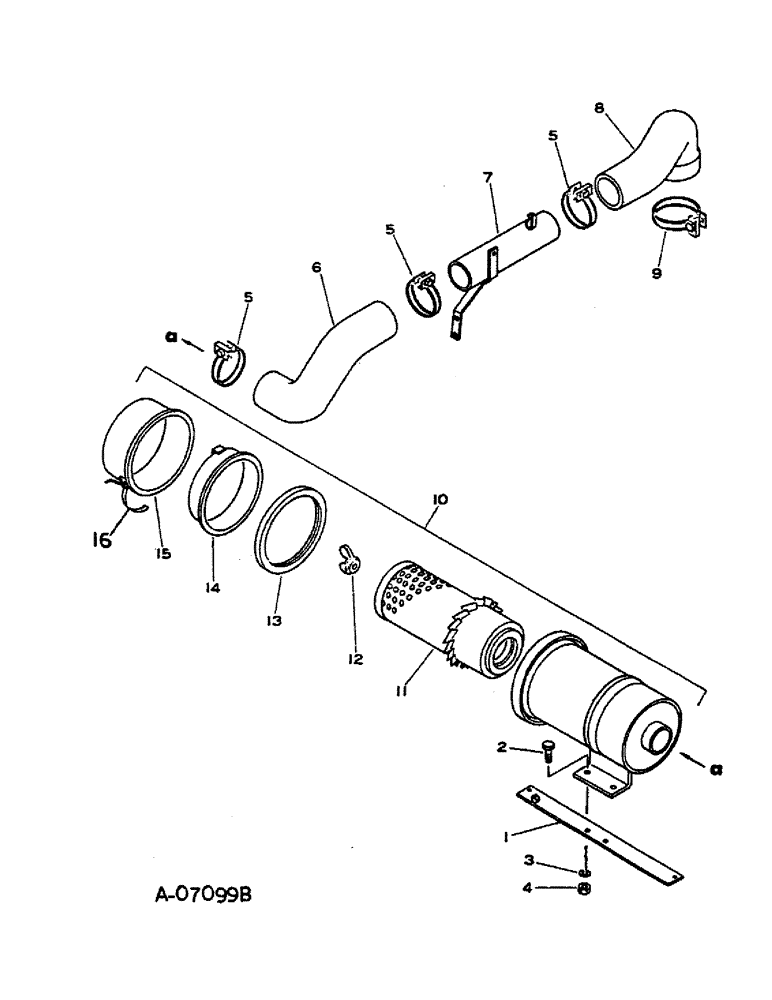

Запчасти Case IH 284 (12-59) - POWER, DIESEL ENGINE, NISSAN, AIR CLEANER AND CONNECTIONS Power

1

1064592C2

BRACKET

air cleaner

1шт.

2

980490C1

BOLT

M8 x 25mm

2шт.

3

897948C1

WASHER

M8 lock

2шт.

4

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

2шт.

5

CLAMP, purchase locally

3шт.

6

1064590C3

HOSE ASSY.

HOSE, air cleaner

1шт.

7

1064582C2

PIPE

air cleaner, serial no. 00537 and below

1шт.

7

1434471R1

PIPE

air cleaner, replaces 1057339C2, serial no. 000538 and above

1шт.

980490C1

BOLT

M8 x 25

1шт.

1057124C1

WASHER

flat

1шт.

897948C1

WASHER

lock

1шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.

8

1064591C1

HOSE

air cleaner

1шт.

9

970446C1

CLAMP

replaces 1064598C1

1шт.

10

1064594C92

CLEANER

AIR CLEANER ASSY

1шт.

11

1064609C1

ELEMENT

1шт.

12

1064610C1

WING NUT

NUT, wing

1шт.

1432347R1

SEAL

WASHER, seal

1шт.

13

1064618C1

SEAL

dust

1шт.

14

1064617C1

CAP

dust

1шт.

15

1064608C2

COVER

1шт.

16

1432173R1

CLIP

1шт.
