(12-46) - POWER, DIESEL ENGINE, NISSAN, OIL PAN

Запчасти Case IH 284 (12-46) - POWER, DIESEL ENGINE, NISSAN, OIL PAN Power

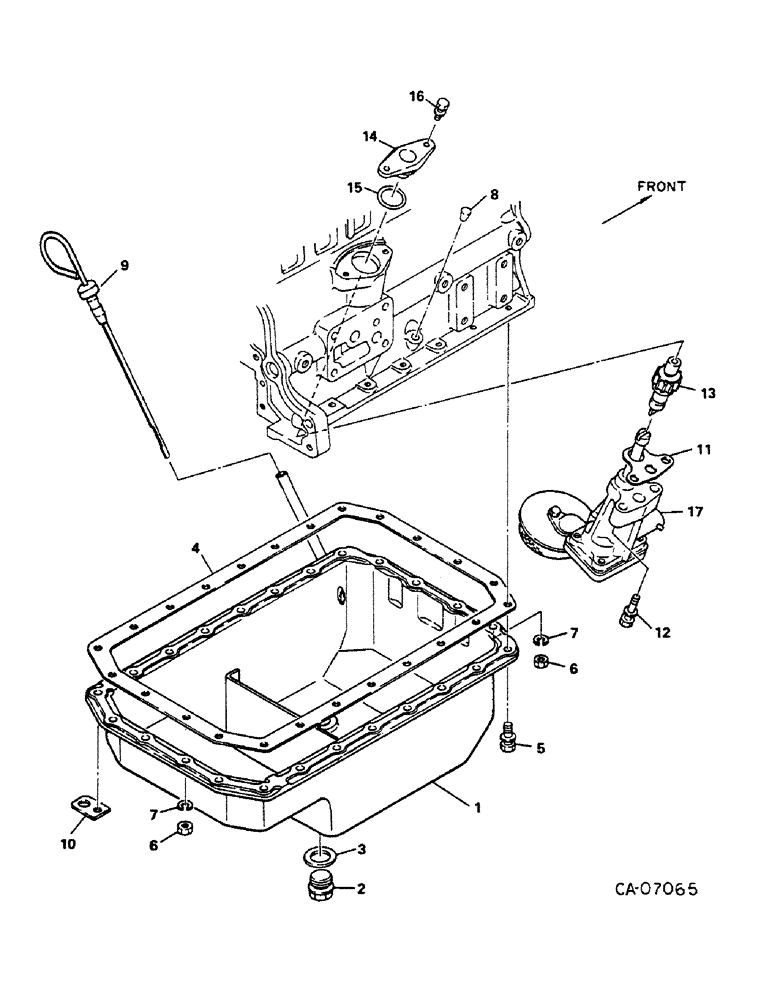

Схема запчастей Case IH 284 - (12-46) - POWER, DIESEL ENGINE, NISSAN, OIL PAN Power
2
12
13
6
3
7
7
15
1
17
4
16
5
14
11
8
9
6
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1058012C1

PAN

ASSY, oil

1шт.

2

478563C1

PLUG

drain

1шт.

3

478564C1

DISC

WASHER, drain plug

1шт.

4

1058013C1

GASKET

oil pan

1шт.

5

1058369C1

BOLT

M8 x 25mm

14шт.

6

30167R1

NUT,M8, Cl 10

M8 PHC class 10

10шт.

7

1058388C1

WASHER

M8 lock

10шт.

8

1058088C1

PLUG

taper

1шт.

9

1058086C1

GAUGE ASSY.

GAUGE ASSY, oil level

1шт.

10

1058300C1

CLAMP

hose

1шт.

11

1058082C1

GASKET

oil pump

1шт.

12

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

2шт.

1058388C1

WASHER

M8 lock

2шт.

13

1058079C1

SPINDLE

ASSY

1шт.

14

1058308C1

SUPPORT

spindle

1шт.

15

478561C1

RING

PACKING, support

1шт.

16

980495C1

SCREW

BOLT, M6 x 16mm

2шт.

17

1058078C91

PUMP

ASSY, oil (for components see list of parts under details of oil pump)

1шт.
