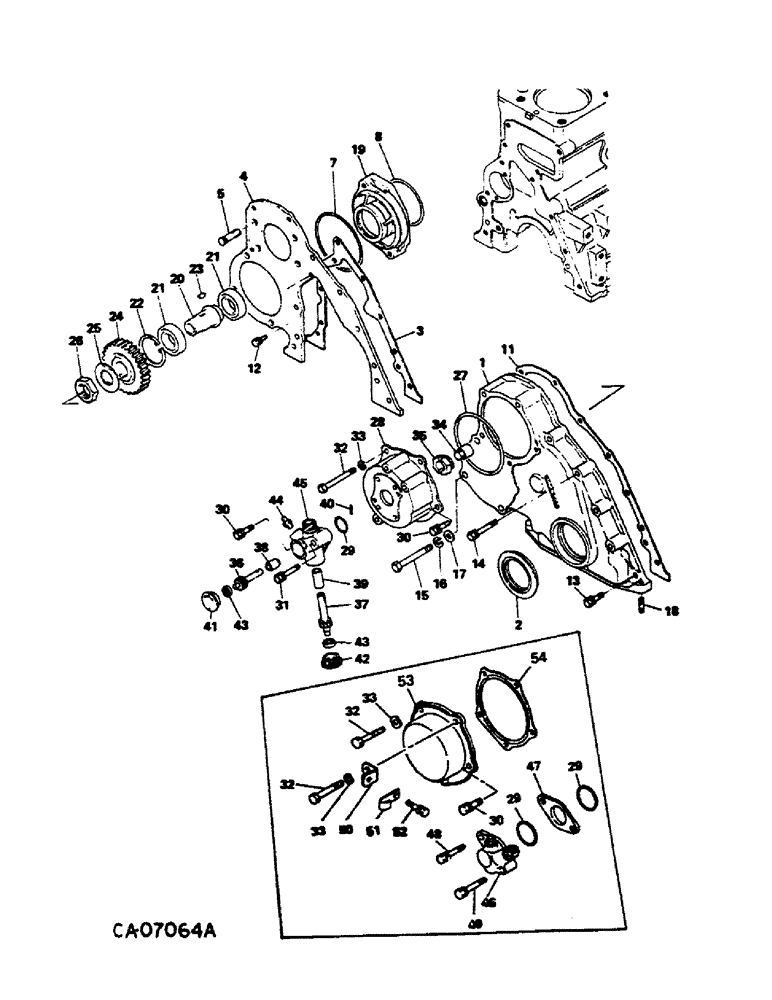

Запчасти Case IH 284 (12-44) - POWER, DIESEL ENGINE, NISSAN, CRANKCASE FRONT COVER Power

1

1058053C1

CASE

timing gear, serial no. 007940 and below

1шт.

1

1438245R1

CASE

timing gear, serial no. 007941 and above

1шт.

2

478053C1

OIL SEAL

SEAL, oil

1шт.

3

1058055C1

GASKET

front plate

1шт.

4

1058052C91

PLATE

engine front

1шт.

5

478137C1

BOLT

injection pump

4шт.

6

(Not used this application)

1шт.

7

1058004C1

SEAL

O-RING

1шт.

8

1058076C1

SEAL

O-RING, serial no. 007940 and below

1шт.

8

1438243R1

SEAL

O-RING, serial no. 007941 and above

1шт.

9

(Not used this application)

1шт.

10

(Not used this application)

1шт.

11

1058056C1

GASKET

gear case

1шт.

12

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

2шт.

13

1058369C1

BOLT

M8 x 30mm

4шт.

14

1058371C1

BOLT

W/WASHER, M8 x 55mm

2шт.

15

1016088C1

BOLT

M10 x 75mm

3шт.

16

1058389C1

WASHER

3шт.

17

978080C1

WASHER

M10 x M18 x M1.6

3шт.

18

1436023R1

STUD

oil pan, replaces 1058396C1

6шт.

19

1058014C1

ADAPTER

oil pump, serial no. 007940 and below

1шт.

19

1438241R1

ADAPTER

oil pump, serial no. 007941 and above

1шт.

20

1058048C1

SHAFT

drive, serial no. 007940 and below

1шт.

20

1438242R1

SHAFT

drive, serial no. 007941 and above

1шт.

21

1058358C91

BALL BEARING

ball

2шт.

22

1058355C1

RING

snap

1шт.

23

1058356C1

KEY

1шт.

24

1058049C1

GEAR

PTO drive

1шт.

25

1058047C1

WASHER

lock

1шт.

26

1058343C1

NUT

1шт.

27

1058025C1

O-RING

gear case cover, serial no. 007940 and below

1шт.

28

1058054C1

COVER, gear case, serial no. 007940 and below

1шт.

29

1058339C1

O-RING

1 used w/serial no. 007940 and below, 2 used w/serial no. 007941 and above

1шт.

30

478135C1

BOLT

W/WASHER, M8 x 16mm, 3 used with serial no. 007940 and below , 1 used w/serial no. 007941 and above

1шт.

31

1058370C1

BOLT

W/WASHER, M8 x 40mm, serial no. 007940 and below

1шт.

32

503076C1

BOLT, M8 x 70mm

3шт.

33

1058388C1

WASHER

lock

3шт.

34

1058229C1

NUT, round, serial no. 007940 and below

1шт.

35

1058332C1

NUT, meter drive, serial no. 007940 and below

1шт.

1058059C91

DRIVE

ASSY, tachometer, serial no. 007940 and below, composed of

1шт.

36

SHAFT, drive gear (NSS)

1шт.

37

SHAFT, driven gear (NSS)

1шт.

38

BUSHING, drive gear (NSS)

1шт.

39

BUSHING, driven gear (NSS)

1шт.

40

PIN (NSS)

1шт.

41

CAP (NSS)

1шт.

42

CAP (NSS)

1шт.

43

1058359C91

BALL BEARING

ball

2шт.

44

NIPPLE, grease

1шт.

45

HOUSING

1шт.

46

1438247R92

DRIVE

ASSY, tachometer, serial no. 007941 and above

1шт.

47

1438248R1

FLANGE

serial no. 007941 and above

1шт.

48

1058369C1

BOLT

W/WASHER, M8 x 25mm, serial no. 007941 and above

1шт.

49

478112C1

BOLT

W/WASHER, M8 x 45mm, serial no. 007941 and above

1шт.

50

1438249R1

BRACE

STAY, serial no. 007941 and above

1шт.

51

1058327C1

CLIP

serial no. 007941 and above

1шт.

52

478135C1

BOLT

W/WASHER, serial no. 007941 and above

1шт.

53

1438246R1

COVER

gear case, serial no. 007941 and above

1шт.

54

503052C1

GASKET

gear case cover, serial no. 007941 and above

1шт.
