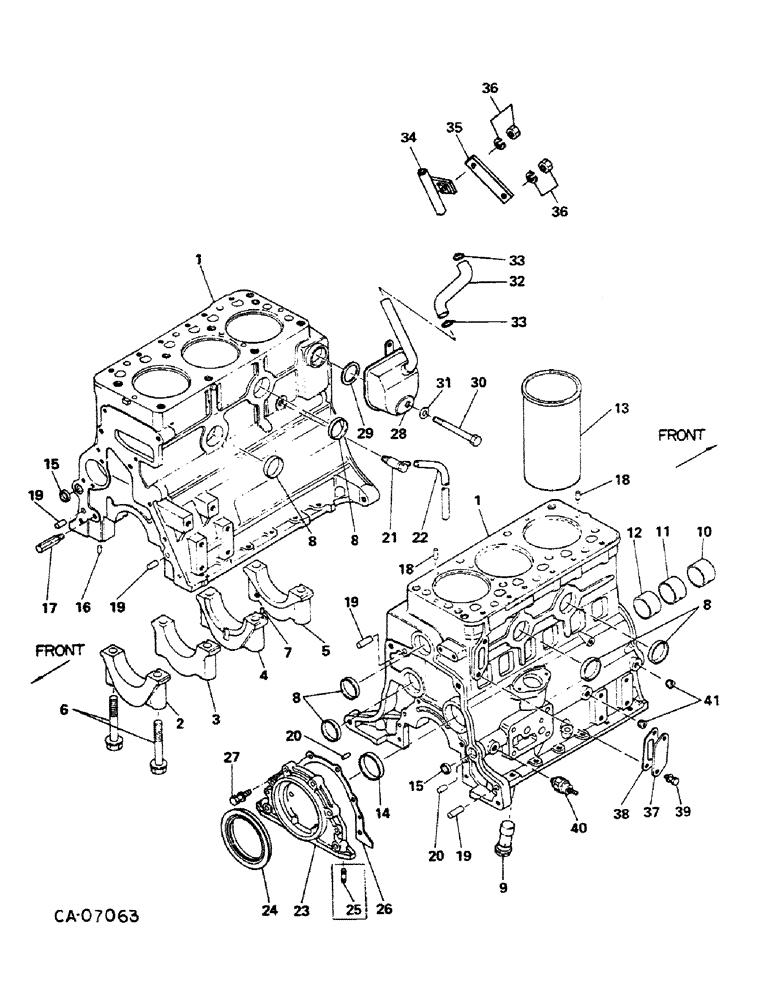

Запчасти Case IH 284 (12-42) - POWER, DIESEL ENGINE, NISSAN, CYLINDER BLOCK AND CONNECTIONS Power
№
Артикул
Название
Примечание
Количество
1
1438694R91
BLOCK
ASSY, cylinder, engine serial no. 009557 & above, composed of ref nos. 2 - 20
1шт.
1
1058003C91
BLOCK
ASSY, cylinder, engine serial no. 009556 & below, composed of
1шт.
2
CAP, main brg (NSS)
1шт.
3
CAP, main brg (NSS)
1шт.
4
CAP, main brg (NSS)
1шт.
5
CAP, main brg (NSS)
1шт.
6
1058032C1
BOLT
bearing cap
8шт.
7
1436020R1
PIN
straight, replaces 1058398C1
1шт.
8
1433045R1
PLUG
welch, replaces 478081C1
7шт.
9
1436034R1
BUSHING
oil pump, replaces 1058080C1
1шт.
1058046C92
BUSHING
SET, cam, std, composed of ref 10, 11 & 12
1шт.
10
BUSHING, cam front (NSS)
1шт.
11
BUSHING, cam center (NSS)
1шт.
12
BUSHING, cam rear (NSS)
1шт.
13
478052C1
SLEEVE CYLINDER
SLEEVE, cylinder
3шт.
14
478080C1
PLUG
taper
1шт.
15
574931C1
PLUG
welch
2шт.
16
478083C1
PLUG
taper
1шт.
17
1438190R1
JET
oil, replaces 478084C2
1шт.
18
1436021R1
PIN
straight, replaces 1058400C1
2шт.
19
574930C1
DOWEL, cylinder
4шт.
20
1436022R1
PIN
straight, replaces 1058399C1
2шт.
21
478093C1
COCK, DRAIN
COCK, water drain
1шт.
22
1058299C1
HOSE
vinyl
1шт.
23
1058033C1
RETAINER, oil seal, serial no. 007940 and below
1шт.
23
1436700R1
RETAINER
oil seal, serial no. 0079410 and above
1шт.
24
1436035R1
SEAL
oil, replaces 1058026C2
1шт.
25
1436023R1
STUD
replaces 1058396C1, engine serial no. 009556 & below
4шт.
26
1436658R1
GASKET
replaces 1058034C1
1шт.
27
1058369C1
BOLT
M8 x 25mm
6шт.
28
1058007C1
BREATHER
ASSY
1шт.
29
1058093C1
PACKING
1шт.
30
1058005C1
BOLT
1шт.
31
1058094C1
WASHER
seal
1шт.
32
1058006C1
HOSE
rubber
1шт.
33
CLAMP, purchase locally
2шт.
34
1058406C1
PIPE
breather
1шт.
35
1058352C1
BRACE
STAY
1шт.
36
478135C1
BOLT
M8 x 16mm
2шт.
37
1058302C1
COVER
blind
1шт.
38
1058301C1
GASKET
1шт.
39
628-8020
BOLT,Hex, M8 x 20, 10.9, Full Thd
M8 x 20 class 8.8
2шт.
40
478097C1
TRANSMITTER
SWITCH ASSY, oil pressure
1шт.
41
1058362C1
PLUG
oil gallery
2шт.
Выбрано товаров: 44
