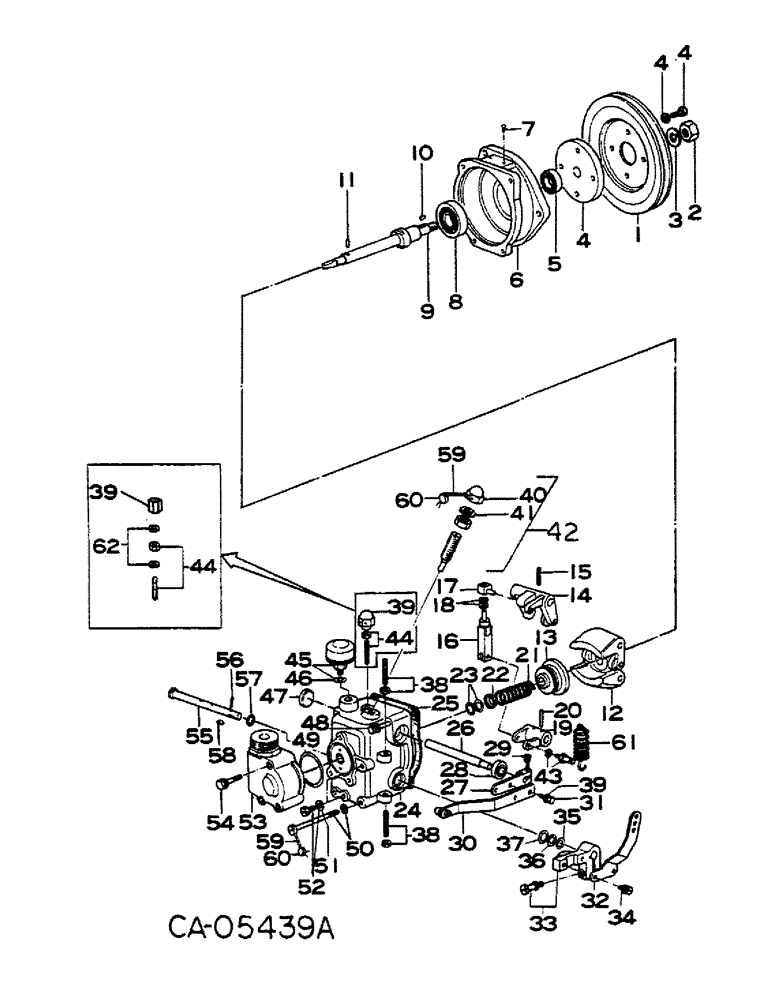

Запчасти Case IH 284 (12-30) - POWER, GASOLINE ENGINE, MAZDA, GOVERNOR Power

1014280C92

GOVERNOR

ASSY

1шт.

1

1014454C1

PULLEY

1шт.

2

NUT

1шт.

Order kit, 1014451C1

1шт.

3

WASHER

1шт.

Order kit, 1014451C1

1шт.

4

1014455C1

COUPLING ASSY

1шт.

1014917C1

BOLT

SCREW

4шт.

1004517C1

WASHER

4шт.

5

1014475C1

OIL SEAL

oil

1шт.

6

1014457C1

HOUSING

1шт.

7

1014476C1

FASTENER

NAIL

1шт.

8

1014456C1

BALL BEARING

BEARING

1шт.

9

SHAFT

1шт.

Order kit, 1014451C1

1шт.

10

KEY

1шт.

Order kit, 1014449C1 or Order kit, 1014451C1

1шт.

11

PIN

1шт.

Order kit, 1014449C1 or Order kit, 1014451C1

1шт.

12

1014452C1

FLYWEIGHT ASSY

1шт.

13

1014453C1

SHIFTER

1шт.

14

FORK

1шт.

Order kit, 1014460C1

1шт.

15

SCREW

1шт.

Order kit, 1014460C1

1шт.

16

LINK

1шт.

Order kit, 1014461C1

1шт.

17

CONNECTOR

1шт.

Order kit, 1014460C1

1шт.

18

SHIM

2шт.

Order kit, 1014450C1

1шт.

19

FORK

1шт.

Order kit, 1014461C1

1шт.

20

PIN

2шт.

Order kit, 1014449C1 or Order kit, 1014461C1

1шт.

21

1014459C1

VALVE SPRING

SPRING

1шт.

22

RETAINER

1шт.

Order kit, 1014451C1

1шт.

23

SHIM

1шт.

Order kit, 1014450C1

1шт.

24

1014462C1

GOVERNOR COVER

1шт.

25

GASKET

1шт.

Order kit, 1014449C1

1шт.

26

SHAFT

1шт.

Order kit, 1014460C1

1шт.

27

LEVER

1шт.

Order kit, 1014471C1

1шт.

28

SEAL

1шт.

Order kit, 1014449C1

1шт.

29

SCREW

1шт.

Order kit, 1014471C1

1шт.

30

1014472C1

LEVER

1шт.

31

SCREW

1шт.

Order kit, 1014471C1

1шт.

32

1014474C1

LEVER

1шт.

33

1014473C1

LINK KIT

1шт.

34

SCREW

1шт.

35

SHIM

1шт.

Order kit, 1014450C1

1шт.

36

WASHER

1шт.

Order kit, 1014461C1

1шт.

37

O-RING

1шт.

Order kit, 1014449C1

1шт.

38

1014468C1

SCREW

2шт.

39

1057599C1

NUT

CAP NUT, replaces 1014467C1

1шт.

40

CAP NUT, order damper, 1014477C1

1шт.

41

WASHER, order damper, 1014477C1

1шт.

42

1014477C1

ADJUSTER

DAMPER

1шт.

43

PIN

1шт.

Order kit, 1014461C1

1шт.

44

1014466C2

SCREW

with nut and gasket

1шт.

45

1014465C1

BREATHER

AIR BREATHER

1шт.

46

SEAL

1шт.

47

PLUG, part of cover 1014462C1

1шт.

48

1014469C1

BOLT

2шт.

49

O-RING

1шт.

Order kit, 1014449C1 or Order kit, 1014464C1

1шт.

50

1014470C2

BOLT

2шт.

51

WASHER

2шт.

Order kit, 1014449C1

1шт.

52

1014463C1

BOLT

2шт.

53

HOUSING, tachometer

1шт.

Order kit, 1014464C1

1шт.

54

BOLT

3шт.

Order kit, 1014464C1

1шт.

55

SHAFT

1шт.

Order kit, 1014461C1

1шт.

56

PIN, cotter

1шт.

Order kit, 1014449C1

1шт.

57

O-RING

1шт.

Order kit, 1014449C1

1шт.

58

KEY

1шт.

Order kit, 1014449C1 or Order kit, 1014461C1

1шт.

59

WIRE

2шт.

Order kit, 1014449C1

1шт.

60

LOCK

2шт.

Order kit, 1014449C1

1шт.

61

1014458C1

VALVE SPRING

SPRING, governor

1шт.

62

1057598C1

GASKET

2шт.

1014449C1

KIT

REPAIR KIT, composed of ref. no. 5, 10, 11, 15, 20, 26, 28, 37, 46, 49, 51, 56, 57, 58, 59 and 60

1шт.

1014451C1

KIT

GOVERNOR SHAFT KIT, composed of ref no. 2, 3, 9, 10, 11 and 22

1шт.

1014450C1

SHIM

KIT, composed of ref. no. 18, 23 and 35

1шт.

1014461C1

KIT

LEVER SHAFT KIT, composed of ref. no. 16, 19, 20, 22, 36, 55 and 58

1шт.

1014460C1

KIT

FORK KIT, composed of ref. no. 14, 15, 17 and 26

1шт.

1014464C1

ADAPTER

TACHOMETER DRIVE ASSY, composed of index no. 49, 53 and 54

1шт.

1014471C1

KIT

LEVER KIT, composed of ref. no. 27, 29 and 31

1шт.
