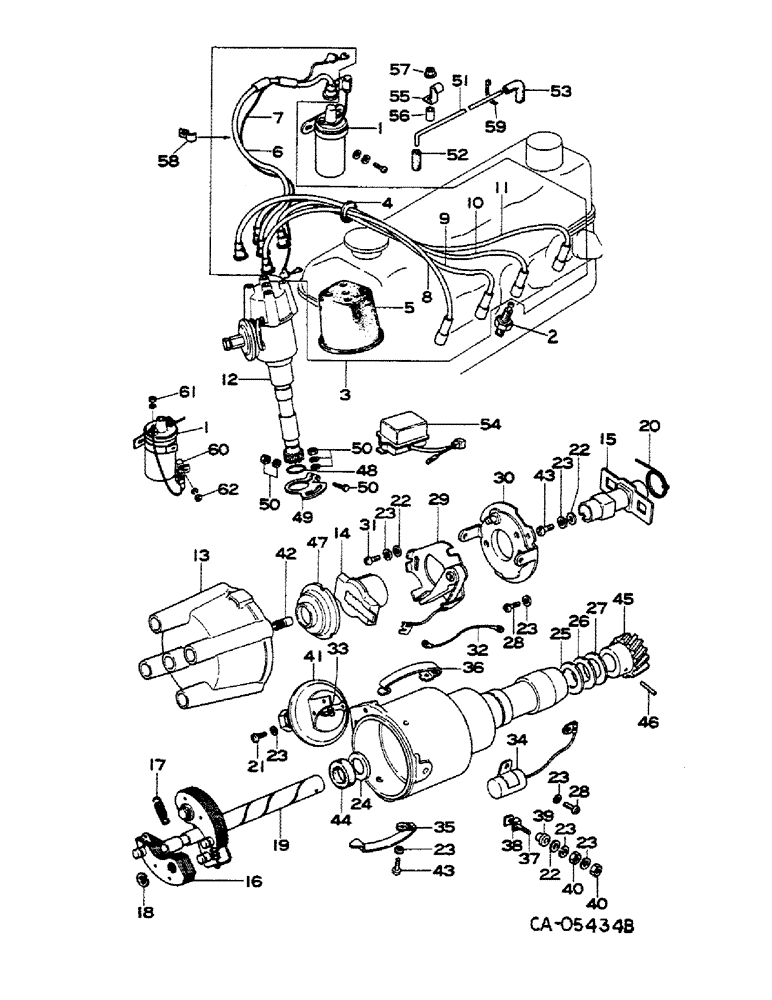

Запчасти Case IH 284 (12-28) - POWER, GASOLINE ENGINE, MAZDA, DISTRIBUTOR AND CONNECTIONS Power

1

1014219C3

COIL

ignition

1шт.

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

2шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

2шт.

897948C1

WASHER

spring

2шт.

897177C1

WASHER

flat

2шт.

2

N12YC

SPARK PLUG

PLUG, spark (champion)

4шт.

3

1014315C11

PACKAGE

high tension wire cable (composed of reference numbers 4 -11)

1шт.

4

1014153C1

RETAINER

SUPPORTER

1шт.

5

1014007C1

COVER

distributor

1шт.

6

1014316C1

CABLE

high tension

1шт.

7

1014344C1

CABLE

coil, distributor

1шт.

8

WIRE, high tension cable, cylinder no. 1 (NSS)

1шт.

9

WIRE, high tension cable, cylinder no. 2 (NSS)

1шт.

10

WIRE, high tension cable, cylinder no. 3 (NSS)

1шт.

11

WIRE, high tension cable, cylinder no. 4 (NSS)

1шт.

12

1014242C91

DISTRIBUTOR

ASSY, composed of reference numbers 13 - 47

1шт.

13

1014009C1

CAP

1шт.

14

1014011C1

ROTOR

1шт.

15

1014225C1

CAM

1шт.

16

1014021C1

WEIGHT

governor

2шт.

17

1014234C1

VALVE SPRING

SPRING, governor

2шт.

18

1014022C1

RING

snap

2шт.

19

1014167C1

SHAFT

1шт.

20

1014016C1

VALVE SPRING

SPRING, hair pin

1шт.

21

1014172C1

SCREW

2шт.

22

1014020C1

WASHER

3шт.

23

1014012C1

WASHER

spring

11шт.

24

1014348C1

WASHER

1шт.

25

1014019C1

WASHER

1шт.

26

1014017C1

WASHER

2шт.

27

1014018C1

WASHER

1шт.

28

1014174C1

SCREW

2шт.

29

1014013C1

CONTACT

SUPPORT, arm

1шт.

REF. 29 IS THE POINTS/CONTACTS.

1шт.

30

1014014C1

BASE

breaker

1шт.

31

1014173C1

SCREW

2шт.

32

1014218C1

CABLE

WIRE, lead

1шт.

33

1014024C1

RING

snap

1шт.

34

1014170C1

CONDENSER

1шт.

35

1014168C1

CLAMP

cap

1шт.

36

1014169C1

CLAMP

cap

1шт.

37

1014175C1

BOLT

1шт.

38

1014023C1

INSULATOR

INSULATION, terminal

1шт.

39

1014343C1

PLATE, insulation

1шт.

40

1014176C1

NUT

2шт.

41

1014243C1

CONTROL

vacuum

1шт.

42

1014267C2

CONTACT

CARBON, contact

1шт.

43

1014177C1

SCREW

3шт.

44

1014015C1

SEAL

OIL SEAL

1шт.

45

1014154C1

GEAR

1шт.

46

1014171C1

PIN

roll

1шт.

47

1014241C1

COVER

1шт.

48

1014008C1

O-RING

1шт.

49

1014155C1

PLATE

lock

1шт.

50

1004523C1

BOLT

1шт.

1004516C1

LOCK NUT

2шт.

1004524C1

WASHER, plain

1шт.

1004517C1

WASHER, spring

2шт.

51

1014317C1

TUBE

vacuum control

1шт.

52

1014223C1

HOSE

JOINT, vacuum control tube

1шт.

53

1014318C1

ELBOW

JOINT, vacuum control tube

1шт.

54

1002863C1

REGULATOR

1шт.

1014739C1

FLANGE BOLT,Hex, M6 x 12mm

SCREW

2шт.

55

1014890C1

CLIP

1шт.

56

1014891C1

SPACER

1шт.

57

1014892C1

NUT, flange

1шт.

58

263513R91

CLIP

coil cable

1шт.

59

976196C1

STRIP

STRAP, vacuum hose

1шт.

60

1004756C1

RESISTOR

coil

1шт.

61

978170C1

NUT

M5

1шт.

978125C1

WASHER

M5 lock

1шт.

62

1014940C1

NUT

M4

1шт.

977788C1

WASHER

M4 lock

1шт.
