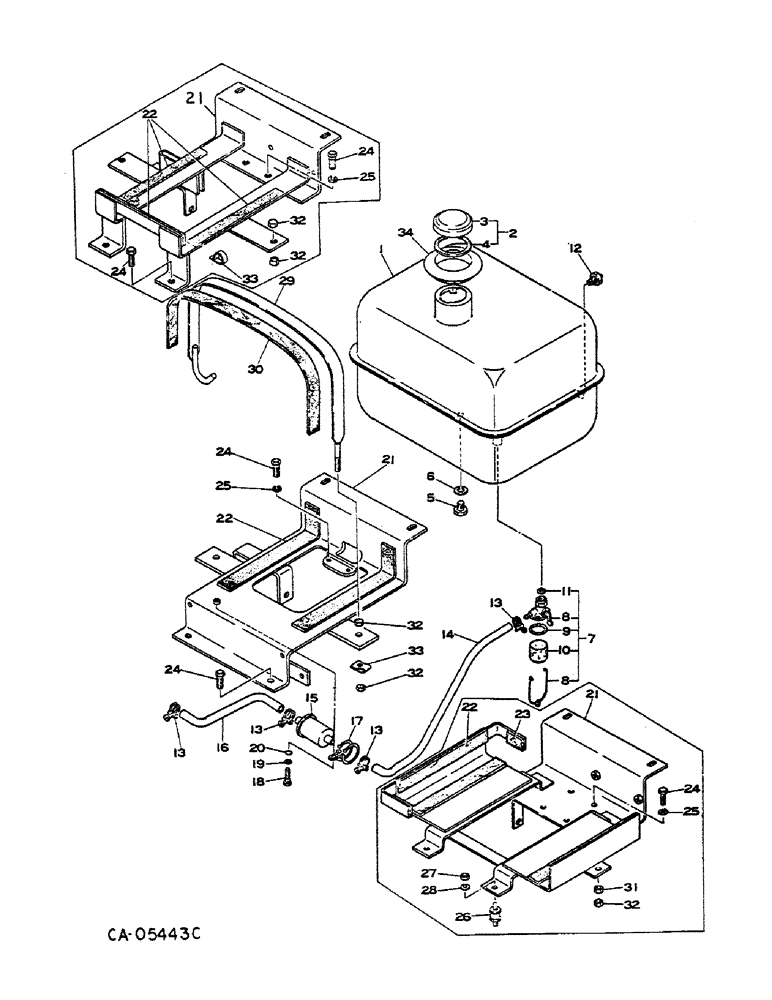

Запчасти Case IH 284 (12-26) - POWER, GASOLINE ENGINE, MAZDA, FUEL TANK AND PIPING Power

1

1060693C1

TANK

fuel (replaces 1002827C3) when tank, 1060693C1 is furnished for service on displaced tank, 1002827C3, harness, 1060695C1 must also be ordered, serial no. 012924 and below

1шт.

1

1062880C2

TANK

fuel, serial no. 012925 and above

1шт.

2

1058546C92

CAP

ASSY, replaces 1943421H1

1шт.

3

1058547C1

CAP

replaces 983717C1

1шт.

4

974041C3

GASKET

1шт.

5

1014963C1

PLUG

1шт.

6

1014986C1

GASKET

1шт.

7

1014753C91

FILTER ASSY

FUEL COCK ASSY

1шт.

8

FUEL COCK (NSS)

1шт.

9

1014756C1

GASKET

PACKING

1шт.

10

1014757C1

BOWL

POT

1шт.

11

1014755C1

GASKET

1шт.

12

974575C1

FUEL GAUGE

FUEL LEVEL UNIT

1шт.

13

1061386C1

CLAMP, hose (replaces 983514C1)

4шт.

14

1002870C2

HOSE

tank to filter 330mm long, serial no. 011796 and below

1шт.

14

1004929C1

HOSE,150.00 mm

tank to filter, serial no. 011797 and above

1шт.

15

1701232C91

FILTER

FILTER, replaces 1014303C1

1шт.

16

1002869C1

HOSE

filter to carb, serial no. 011796 and below

1шт.

16

1004928C1

HOSE

filter to carb 300mm long, serial no. 011797 and above

1шт.

17

1014217C1

CLAMP

1шт.

18

980496C1

BOLT,M8

BOLT, M8 x 16

1шт.

19

897948C1

WASHER

1шт.

20

1014987C1

WASHER

M8 x M18 x 1.0m

1шт.

21

1002803C4

BRACKET, serial no. 011796 and below

1шт.

21

1004925C1

BRACKET

serial no., Serial Range: 011797-012924

1шт.

21

1062504C2

BRACKET, serial no. 012925 and above

1шт.

22

1002802C2

CUSHION, felt 6mm thick, serial no. 012924 and below

3шт.

22

1062039C2

CUSHION

rubber, serial no. 012925 and above

2шт.

23

1014724C1

CUSHION

serial no. 011796 and below

2шт.

24

980496C1

BOLT,M8

BOLT, M8 x 16

4шт.

25

897948C1

WASHER

4шт.

26

983858C1

INSULATOR

CUSHION, serial no. 011796 and below

2шт.

27

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, S/N 011796 and below

2шт.

28

897948C1

WASHER

serial no. 011796 and below

2шт.

29

1061898C2

FIXING STRIP

BAND, replaces 1002799R3

1шт.

30

1002800C2

STRIP

CUSHION, serial no. 011796 and below

1шт.

30

1004926C1

FILLING STRIP

CUSHION, serial no. 011797 and above

1шт.

31

1014953C1

NUT

lock, serial no. 012253 and below

2шт.

32

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

2шт.

33

263513R91

CLIP

tachometer cable

1шт.

34

106953C1

SEAL

SEAL, fuel tank filler neck

1шт.

1004561C1

STRIP

CUSHION, rubber 15mm thick, serial no. 011796 and below

2шт.
