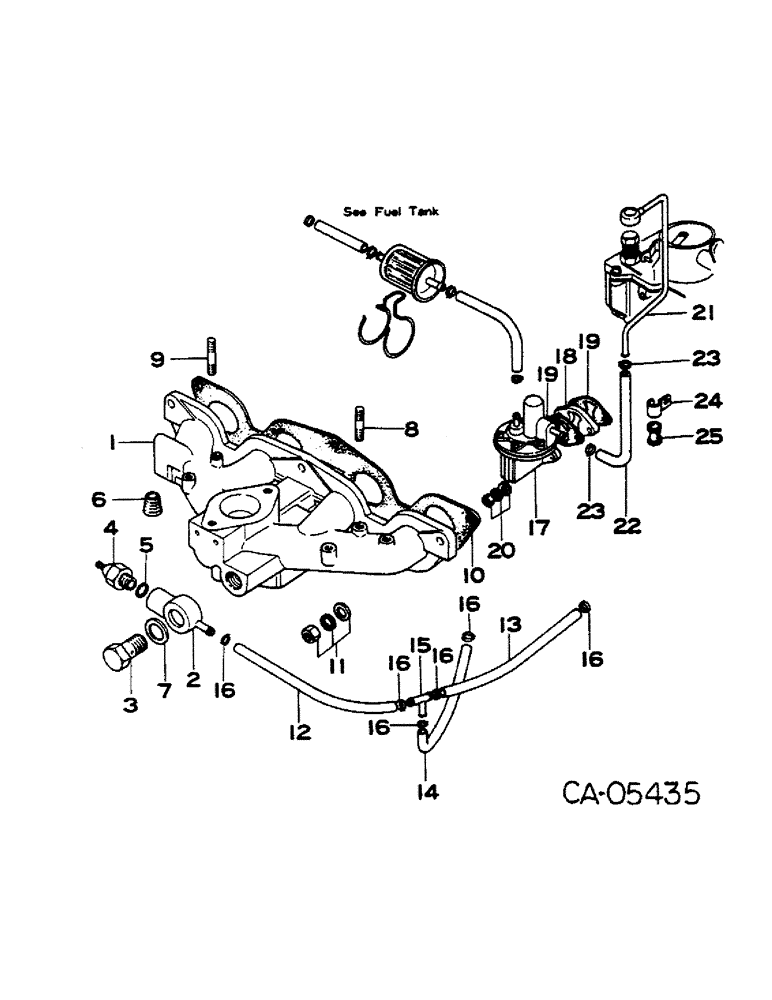

Запчасти Case IH 284 (12-22) - POWER, GASOLINE ENGINE, MAZDA, INTAKE MANIFOLD AND CONNECTIONS Power

1

1014299C91

MANIFOLD

ASSY, intake, composed of

1шт.

2

1014301C1

CONNECTOR, hose

1шт.

3

1014300C1

BOLT

connector

1шт.

4

1014244C1

GAUGE

water heat

1шт.

5

1014025C1

O-RING

1шт.

6

1014394C1

PLUG

1шт.

7

1014399C1

GASKET

2шт.

8

1014428C1

STUD

1шт.

9

1014429C1

STUD

2шт.

10

1014133C1

GASKET

intake manifold

1шт.

11

1014210C1

NUT

intake manifold

6шт.

1014443C1

WASHER, plain

4шт.

WASHER, spring, purchase locally

6шт.

12

1014273C1

HOSE

water

1шт.

13

1014274C1

HOSE

water

1шт.

14

1014181C1

HOSE

water

1шт.

15

1014182C1

TEE

JOINT

1шт.

16

1014068C1

CLIP

6шт.

17

1014262C91

PUMP

ASSY, fuel (for components see list of parts under details of fuel pump)

1шт.

18

1014134C1

INSULATOR

fuel pump

1шт.

19

1014346C1

GASKET

fuel pump

2шт.

20

1004516C1

LOCK NUT

fuel pump

2шт.

1014442C1

WASHER, plain

2шт.

1004517C1

WASHER, spring

2шт.

21

1014302C1

PIPE

fuel

1шт.

22

1014393C1

PIPE

fuel

1шт.

23

1014068C1

CLIP

4шт.

24

1014387C1

CLIP

1шт.

25

1014404C1

PROTECTOR

1шт.

1004594C1

CLIP

water hose

1шт.
