(12-21) - POWER, GASOLINE ENGINE, MAZDA, AIR CLEANER AND CONNECTIONS

Запчасти Case IH 284 (12-21) - POWER, GASOLINE ENGINE, MAZDA, AIR CLEANER AND CONNECTIONS Power

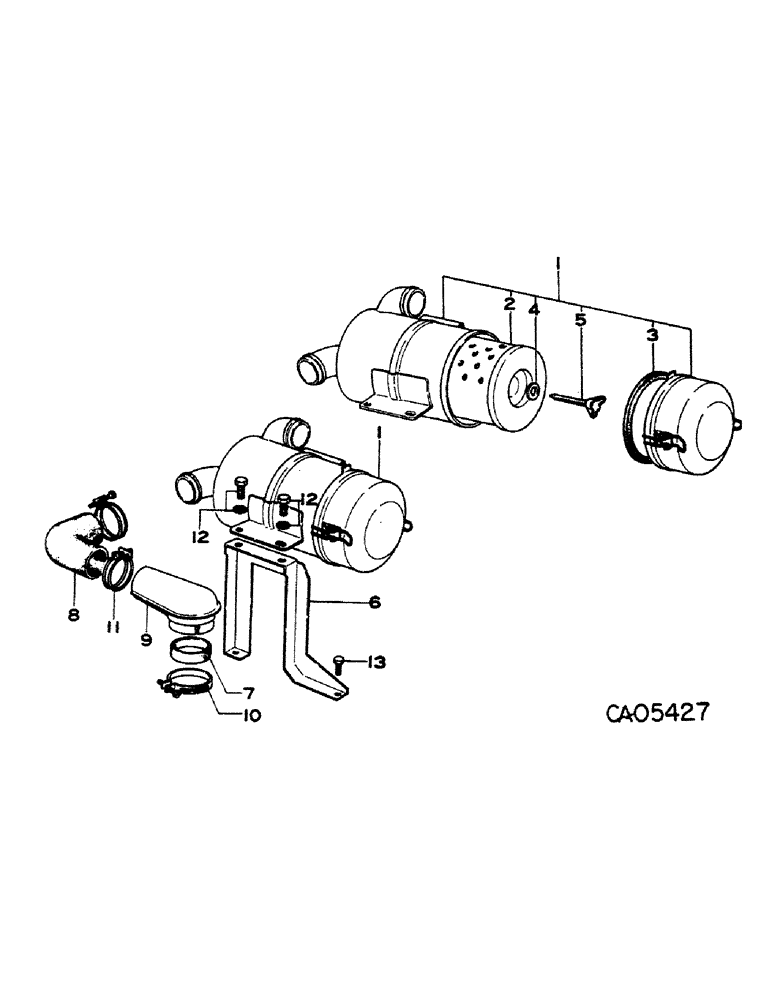

Схема запчастей Case IH 284 - (12-21) - POWER, GASOLINE ENGINE, MAZDA, AIR CLEANER AND CONNECTIONS Power
10
11
12
4
13
1
8
2
1
6
5
12
3
7
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1014275C92

CLEANER

ASSY, air

1шт.

2

1252578C1

ELEMENT

replaces 1014288C1, Has Rubber Cover W/Out Wingnut Hole

1шт.

2

D82571

FILTER, ELEMENT

ELEMENT, FILTER, Has Metal Cover W/ Wingnut Hole

1шт.

3

1014289C1

GASKET

1шт.

4

1014290C1

SEALING WASHER

seal

1шт.

5

1014291C1

BOLT (SPREADER)

BOLT, center

1шт.

6

1014276C1

BRACKET, air cleaner

1шт.

7

1014227C1

SEAL

SEAL, dust

1шт.

8

1014277C1

AIR HOSE

HOSE, air

1шт.

9

1014228C1

ELBOW

FUNNEL, air

1шт.

10

1014385C1

CLAMP

hose

1шт.

11

1014386C1

CLAMP

hose

2шт.

12

980496C1

BOLT,M8

BOLT, M8 x 16

2шт.

897948C1

WASHER

M8 lock

2шт.

980491C1

WASHER

M8 x M16 x 1.2m

2шт.

13

1014414C1

BOLT

1шт.
