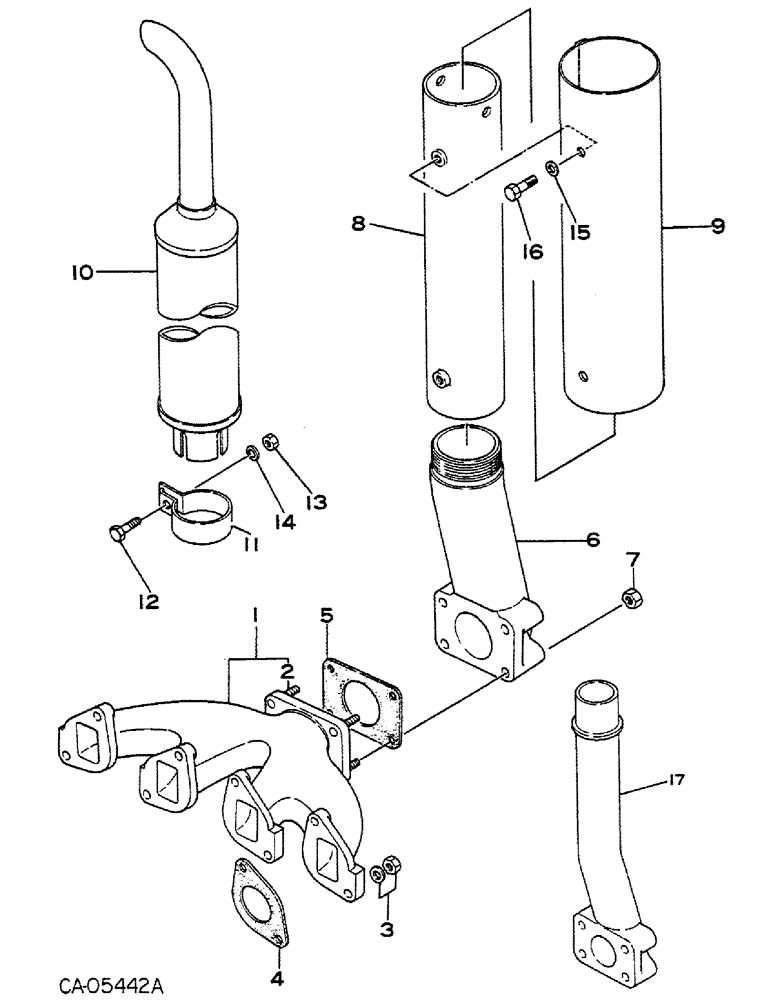

Запчасти Case IH 284 (12-18) - POWER, GASOLINE ENGINE, MAZDA, EXHAUST MANIFOLD AND MUFFLER Power

1

1014278C1

MANIFOLD

exhaust

1шт.

2

1014279C1

STUD

4шт.

3

1014210C1

NUT

8шт.

1014441C1

WASHER

8шт.

4

1014183C1

GASKET

4шт.

5

1014304C1

GASKET

1шт.

6

ELBOW, order elbow, 1004728C2, serial no. 10346 and below

1шт.

7

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

8

PIPE, order elbow, 1004728C2, serial no. 10346 and below

1шт.

9

COVER, discontinued for service, serial no. 10092 and below

1шт.

10

974057C2

MUFFLER

1шт.

11

974058C1

CLAMP

muffler, serial no. 12924 and below

1шт.

11

1062665C1

CLAMP

muffler, serial no. 12925 and above

1шт.

12

30003R1

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

M8 x 25 PHC class 10.9, serial no. 12924 and below

1шт.

12

1064556C1

BOLT

M10 x 70, serial no. 12925 and above

1шт.

13

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, S/N 12924 and below

1шт.

13

1004154C1

NUT

M10, serial no. 12925 and above

1шт.

14

897948C1

WASHER

M8 lock, serial no. 12924 and below

1шт.

14

25544R1

WASHER,13/32" x 13/16" x .134", HDN

.406 x .812 x .134 PHC hdn, serial no. 12925 and above

1шт.

15

978084C1

WASHER

M6 lock, serial no. 10092 and below

4шт.

16

1004163C1

BOLT

serial no. 10092 and below

4шт.

17

1004728C2

PIPE

ELBOW, replaces elbow, 1002784C1 & pipe, 1002765C1, serial no., Serial Range: 10347-012924

1шт.

17

1062501C1

ELBOW

serial no. 012925 and above

1шт.
