(12-16) - POWER, GASOLINE ENGINE, MAZDA, OIL FILLER PIPE AND DRIVE GEAR COVER

Запчасти Case IH 284 (12-16) - POWER, GASOLINE ENGINE, MAZDA, OIL FILLER PIPE AND DRIVE GEAR COVER Power

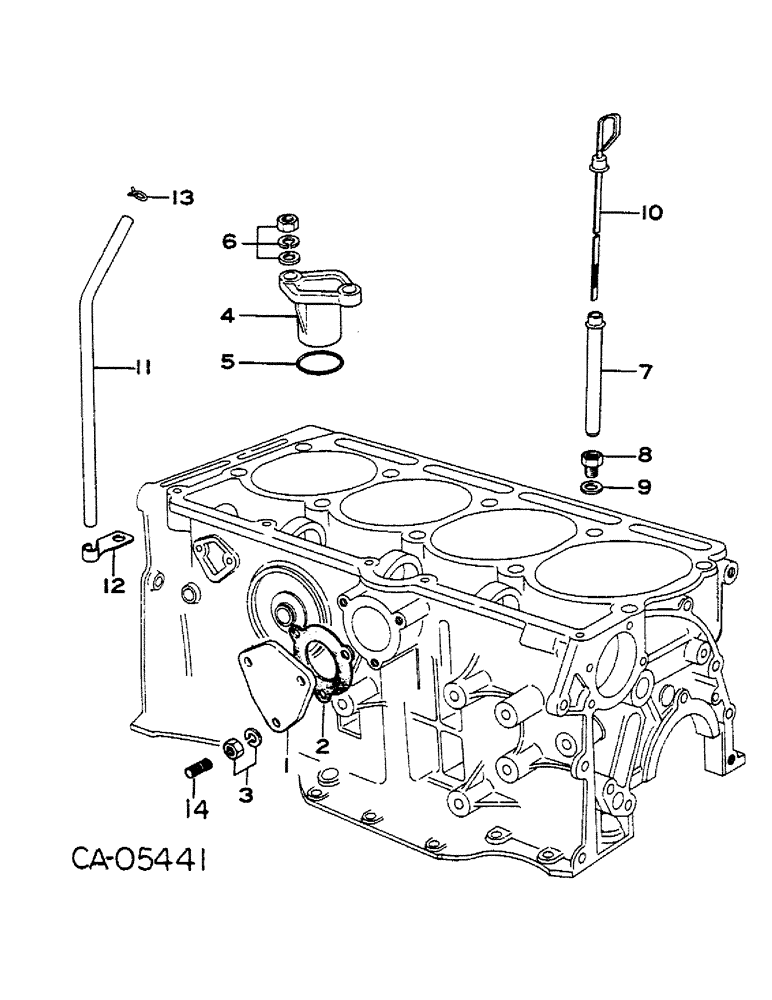

Схема запчастей Case IH 284 - (12-16) - POWER, GASOLINE ENGINE, MAZDA, OIL FILLER PIPE AND DRIVE GEAR COVER Power
7
6
5
11
4
13
14
10
12
2
3
8
9
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1014720C1

COVER

1шт.

2

1014093C1

GASKET

1шт.

3

1004516C1

LOCK NUT

stud

3шт.

WASHER, spring, engine serial no. 5888-7 and below order bolt, 1057596C1

3шт.

4

1014096C1

COVER

oil pump drive gear

1шт.

5

1014097C1

RING

O-RING

1шт.

6

1004516C1

LOCK NUT

2шт.

1014442C1

WASHER, plain

2шт.

1004517C1

WASHER, spring

2шт.

7

1014293C1

TUBE

PIPE, oil gage

1шт.

8

1014099C1

NUT

1шт.

9

1014193C1

RING

gage pipe

1шт.

10

1014294C1

GAUGE

GAGE, oil level

1шт.

11

1014392C1

HOSE

PIPE, vinyl

1шт.

12

1014292C1

SUPPORT, breather pipe

1шт.

13

1014031C1

CLIP

wire

1шт.

14

1014721C1

STUD

cover, engine serial no. 5888-7 and below order bolt, 1057596C1

3шт.

1057596C1

BOLT

cover, engine serial no. 5888-8 and above

3шт.
