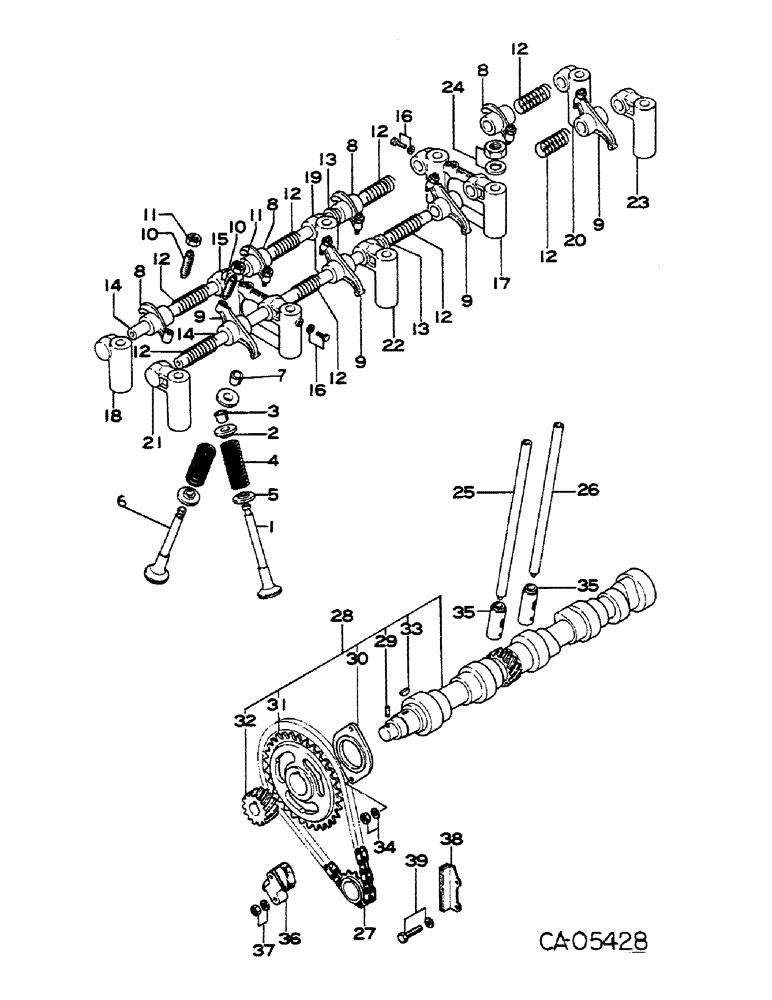

Запчасти Case IH 284 (12-10) - POWER, GASOLINE ENGINE, MAZDA, CAMSHAFT AND VALVES Power

1

1014194C1

LOCK VALVE

VALVE, intake

4шт.

2

1014195C1

SEAL ASSY.

SEAT, spring, upper

8шт.

3

1014112C1

SLEEVE CYLINDER

SLEEVE, tapered (intake)

8шт.

4

1014113C1

VALVE SPRING

SPRING, valve

8шт.

5

1014114C1

SEAL ASSY.

SEAT, spring, lower

8шт.

6

1014196C1

LOCK VALVE

VALVE, exhaust

4шт.

7

1014115C1

SLEEVE

tapered (exhaust)

8шт.

8

1014116C1

ARM

rocker (intake)

4шт.

9

1014117C1

ARM

rocker (exhaust)

4шт.

10

1014079C1

ADJUSTMENT SCREW,Oval, #10 - 32 x 0.50"

adjust

8шт.

11

1004516C1

LOCK NUT

lock

8шт.

12

1014118C1

SPRING

rocker arm set

8шт.

13

1014026C1

SPACER

2шт.

14

1014119C1

SHAFT

rocker arm

2шт.

15

1014345C1

BRACKET

SUPPORTER, shaft

1шт.

16

1014436C1

SCREW

lock

2шт.

1014352C1

GASKET

2шт.

17

1014120C1

BRACKET

SUPPORTER, shaft

1шт.

18

1014122C1

BRACKET

SUPPORTER, shaft (intake)

1шт.

19

1014123C1

BRACKET

SUPPORTER, shaft (intake)

1шт.

20

1014124C1

BRACKET

SUPPORTER, shaft (intake)

1шт.

21

1014125C1

BRACKET

SUPPORTER, shaft (exhaust)

1шт.

22

1014126C1

BRACKET

SUPPORTER, shaft (exhaust)

1шт.

23

1014127C1

BRACKET

SUPPORTER, shaft (exhaust)

1шт.

24

1014094C1

LOCK NUT

supporter

10шт.

1014001C1

WASHER

plain

10шт.

25

1014197C1

ROD

push (intake)

4шт.

26

1014030C1

ROD

push (exhaust)

4шт.

27

1014128C1

CHAIN (AG)

CHAIN, timing

1шт.

28

1014266C91

CAMSHAFT

ASSY

1шт.

29

1014057C1

PIN

dowel

1шт.

30

1014129C1

PLATE

thrust

1шт.

31

1014130C1

GEAR WHEEL

WHEEL, cam sprocket

1шт.

32

1014131C1

GEAR

distributor drive

1шт.

33

1014384C1

KEY

woodruff

1шт.

34

1014437C1

LOCK NUT

lock thrust plate

2шт.

WASHER, spring, purchase locally, engine serial no. 5888-7 and below order bolt, 1004526C1

2шт.

35

1014246C1

TAPPET

FOLLOWER, tappet

8шт.

36

1014349C1

ADJUSTER

chain

1шт.

37

1014438C1

NUT

chain adjuster

2шт.

WASHER, spring, purchase locally

2шт.

38

1014132C1

DAMPER

vibration

1шт.

39

1004522C1

BOLT

vibration damper

2шт.

WASHER, spring, purchase locally

2шт.

1004526C1

BOLT

engine serial no. 5888-8 and above

2шт.
