(12-06) - POWER, GASOLINE ENGINE, MAZDA, FRONT COVER AND OIL PAN

Запчасти Case IH 284 (12-06) - POWER, GASOLINE ENGINE, MAZDA, FRONT COVER AND OIL PAN Power

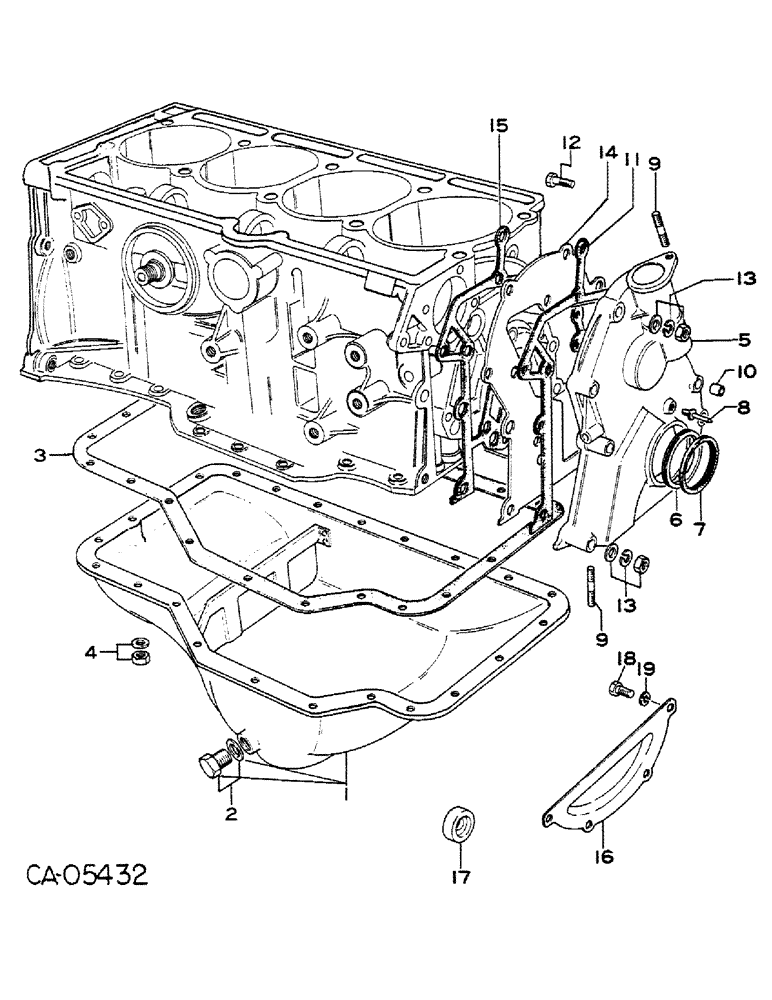

Схема запчастей Case IH 284 - (12-06) - POWER, GASOLINE ENGINE, MAZDA, FRONT COVER AND OIL PAN Power
16
12
5
11
10
15
8
17
19
7
9
4
13
1
18
2
6
9
14
3
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1014192C1

PAN

ASSY, oil

1шт.

2

1014395C1

PLUG

ASSY, oil pan

1шт.

1014398C1

GASKET

plug

1шт.

3

1014098C1

GASKET

oil pan

1шт.

4

1004516C1

LOCK NUT

oil pan

17шт.

1004517C1

WASHER, spring, engine serial no. 5888-7 and below order bolt, 1057597C1

17шт.

5

1014295C93

COVER

ASSY, chain, composed of

1шт.

6

1014100C1

RETAINER

DEFLECTER

1шт.

7

1014044C2

SEAL

OIL SEAL

1шт.

8

1014297C1

PIN

1шт.

9

1014435C2

STUD

4шт.

10

1014296C1

SPACER

3шт.

11

1014101C1

GASKET

chain cover

1шт.

12

1004526C1

BOLT

1шт.

13

1014210C1

NUT

8шт.

1014443C1

WASHER, plain

7шт.

WASHER, spring, purchase locally

8шт.

14

1014103C1

PLATE

front end

1шт.

15

1014104C1

GASKET

front end plate

1шт.

16

1014152C1

COVER

under

1шт.

17

1014271C1

SPACER

2шт.

18

30191R1

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

M6 x 12 PHC class 10.9

4шт.

19

978084C1

WASHER

M6 lock

4шт.

1057597C1

BOLT

oil pan, engine serial no. 5888-8 and above

17шт.
