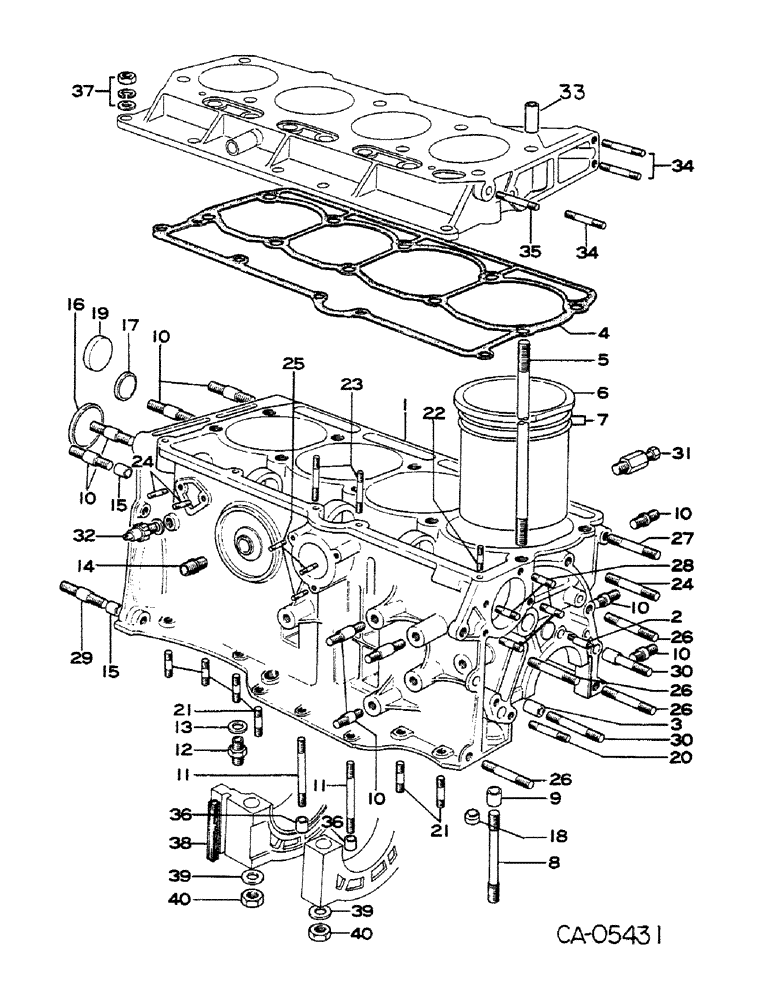

Запчасти Case IH 284 (12-04) - POWER, GASOLINE ENGINE, MAZDA, CRANKCASE Power

1

1014270C93

CYLINDER

BLOCK ASSY, composed of reference numbers 1 - 36

1шт.

2

1014087C1

FITTING

JET, oil

1шт.

3

1014381C1

PIN, tubular, front plate

2шт.

4

1014088C1

GASKET

top deck

1шт.

5

1014190C1

STUD

10шт.

6

1014191C1

SLEEVE

LINER, cylinder

4шт.

7

1014089C1

RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

O-RING, cylinder liner

1шт.

8

1014090C1

STUD

bearing cap

10шт.

9

1014382C1

PIN, tubular, bearing cap

10шт.

10

1014406C1

STUD, engine mounting

10шт.

11

1014426C1

STUD, oil pump

2шт.

12

1014091C1

NIPPLE, oil pump pipe

1шт.

13

1014399C1

GASKET

pipe nipple

1шт.

14

1014092C1

PIPE, center, oil filter

1шт.

15

1014053C1

PIN, tubular, clutch housing

2шт.

16

1014388C1

PLUG

expansion, camshaft

1шт.

17

1014391C1

PLUG

blind, main oil gallery

1шт.

18

1014390C1

PLUG

blind, chain adjuster oil way

2шт.

19

1014389C1

PLUG

blind, water gallery

1шт.

20

1014424C1

STUD

chain adjuster

2шт.

21

1014418C1

STUD

oil pan, engine serial no. 5888-7 and below order bolt, 1057595C1

17шт.

22

1014421C1

STUD, top deck

3шт.

23

1014423C1

STUD, top deck & oil pump cover, engine serial no. 5888-7 and below order bolt, 1057595C1

2шт.

23

1057595C1

BOLT, top deck & oil pump cover, engine serial no. 5888-8 and above

2шт.

24

1438394R1

STUD

fuel pump

2шт.

25

1014418C1

STUD

side cover, engine serial no. 5888-7 and below order bolt, 1057596C1

3шт.

25

1057596C1

BOLT

side cover, engine serial no. 5888-8 and above

3шт.

26

1014432C1

STUD, chain cover

5шт.

27

1014431C1

STUD

water pump

1шт.

28

1014427C1

STUD

camshaft thrust plate, 4 use on engines w/serial no. 5888-7 and below

2шт.

29

1014407C1

STUD, clutch housing

2шт.

30

1014351C1

STUD, chain cover

2шт.

31

1014029C1

VALVE

COCK, water drain

1шт.

32

1014070C1

SWITCH

oil pressure

1шт.

33

1014383C1

SLEEVE

PIN, tubular

2шт.

34

1014431C1

STUD

water pump

3шт.

35

1014433C1

STUD, chain cover

1шт.

36

1014380C1

SLEEVE

PIN, tubular

2шт.

1014435C2

STUD, crank shaft cap

10шт.

37

1004516C1

LOCK NUT

3шт.

1014442C1

WASHER, plain

2шт.

1004517C1

WASHER, spring

2шт.

38

1014095C1

SEAL

side

2шт.

39

1014001C1

WASHER

lock nut

10шт.

40

1014094C1

LOCK NUT

lock

10шт.
