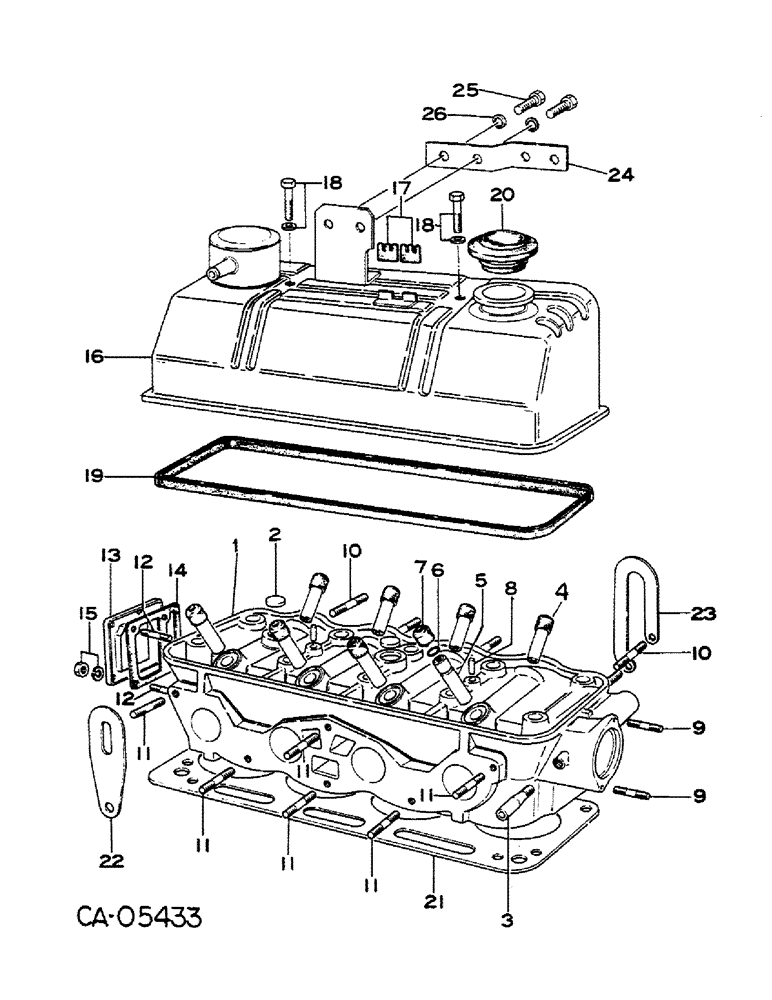

Запчасти Case IH 284 (12-02) - POWER, GASOLINE ENGINE, MAZDA, CYLINDER HEAD Power

1

1014247C92

HEAD (CYLINDER)

HEAD ASSY, cylinder, composed of

1шт.

2

1014028C1

PLUG

blind

2шт.

3

1014180C1

PIPE

1шт.

4

1014083C1

GUIDE

intake valve includes ref. no. 6

4шт.

5

1014188C1

GUIDE

exhaust valve includes ref. no. 6

4шт.

6

1014082C1

CLIP

8шт.

7

1014121C1

SEAL

SEAL, valve

8шт.

8

1014379C1

PIN

dowel

2шт.

9

1014422C1

STUD

thermostat casing, engine serial no. 5888-7 & below

2шт.

9

1438391R1

STUD

thermostat casing, engine serial no. 5888-8 & above

2шт.

10

1014429C1

STUD

exhaust manifold

8шт.

11

1014430C1

STUD

intake manifold

6шт.

12

1014434C1

STUD

blind cover

4шт.

13

1014084C1

COVER

blind

1шт.

14

1014085C1

GASKET

1шт.

15

1004516C1

LOCK NUT

blind cover

4шт.

1004517C1

WASHER, spring

4шт.

16

1014268C1

COVER

cylinder head

1шт.

17

1014067C1

PROTECTOR

high tension

2шт.

18

1014415C1

BOLT

cylinder head cover

2шт.

1014002C1

WASHER

sealing

2шт.

19

1014086C1

CYLINDER HEAD GASKET

cylinder head cover

1шт.

20

1014080C1

CAP

oil filler

1шт.

21

1014189C2

CYLINDER HEAD GASKET

cylinder head

1шт.

22

1436902R1

HANGER

engine, rear, replaces 1014205C1

1шт.

23

1014102C1

HANGER

engine, front

1шт.

24

1002797C2

BRACKET

ignition coil

1шт.

25

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

2шт.

26

897948C1

WASHER

2шт.
