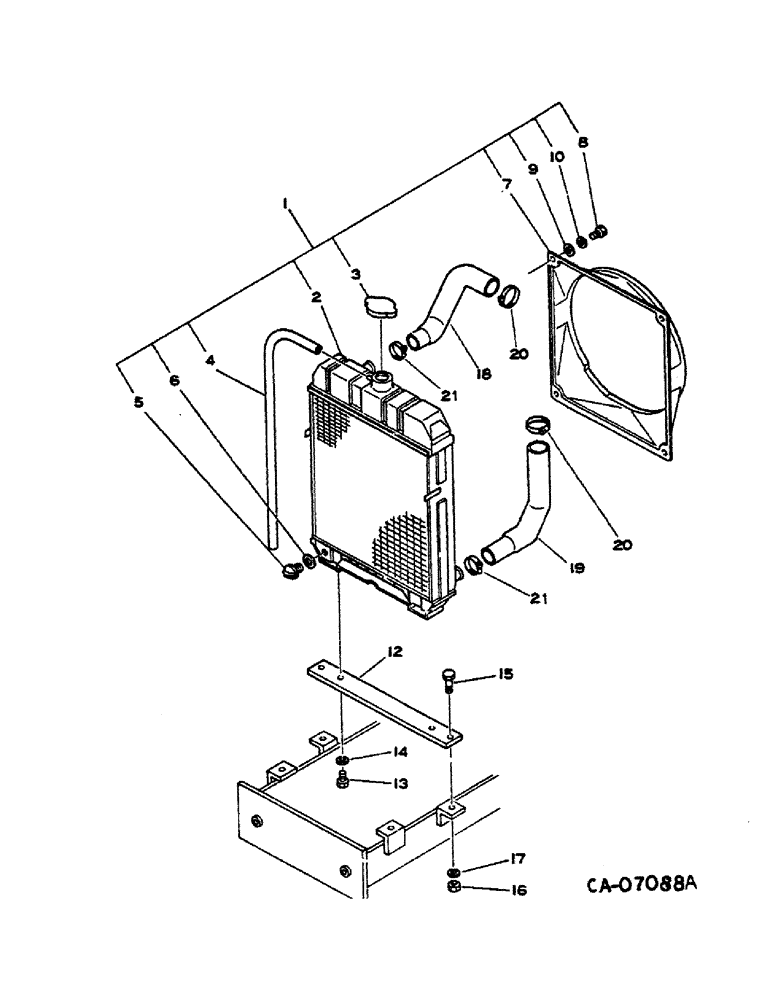

Запчасти Case IH 284 (06-02) - COOLING, RADIATOR AND CONNECTIONS, DIESEL ENGINE TRACTORS Cooling

1

RADIATOR ASSY, order components, composed of

1шт.

2

1057343C1

RADIATOR

1шт.

3

974063C1

CAP

1шт.

4

974229C1

TUBE

vinyl

1шт.

5

974062C1

COCK

1шт.

6

974230C1

GASKET

1шт.

7

1064670C1

SHROUD

1шт.

8

980496C1

BOLT,M8

BOLT, M8 x 16mm

2шт.

9

1014987C1

WASHER

M8 x M18 x 1.0mm

2шт.

10

897948C1

WASHER

M8 lock

2шт.

11

(Not used this application)

1шт.

12

1064581C2

PLATE

radiator, serial no. 002650 and below

1шт.

13

1014933C1

BOLT

M10 x 20mm, serial no. 002650 and below

2шт.

13

1012979C1

BOLT

M10 x 16mm, serial no. 002651 and above

2шт.

14

980493C1

WASHER

M10 lock

2шт.

15

1104956C1

BOLT

M10 x 25mm, serial no. 002650 and below

2шт.

16

1004154C1

NUT

M10, serial no. 002650 and below

2шт.

17

980493C1

WASHER

M10 lock, serial no. 002650 and below

2шт.

18

1064579C1

RADIATOR HOSE,27.00 mm ID, 33.00 mm ID x 180.00 mm

27.00 mm ID, 33.00 mm ID X 180.00, Upper, Engine Serial No. 009556 & Below

1шт.

18

1438669R1

HOSE,27mm ID, 33mm ID x 155 L

RADIATOR HOSE, , Upper, Engine Serial No. 009557 & Above 27.00 mm ID, 33.00 mm ID x 155.00

1шт.

19

1064580C1

RADIATOR HOSE,27.00 mm ID, 33.00 mm ID x 250.00 mm

27.00 mm ID, 33.00 mm ID X 250.00, Lower

1шт.

20

CLAMP, purchase locally

2шт.

21

CLAMP, purchase locally

2шт.
