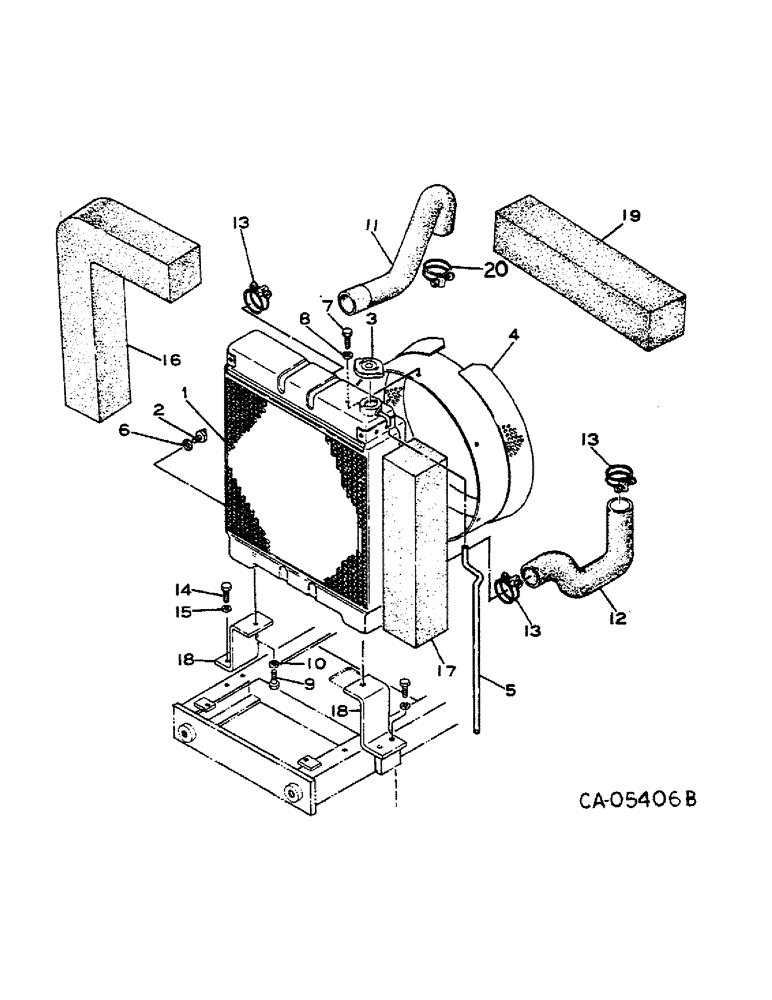

Запчасти Case IH 284 (06-01) - COOLING, RADIATOR AND CONNECTIONS, GASOLINE ENGINE TRACTORS Cooling

1

974061C2

RADIATOR

1шт.

2

974062C1

COCK

1шт.

3

974063C1

CAP

1шт.

4

1002844C1

SHROUD

1шт.

5

974229C1

TUBE

vinyl

1шт.

6

974230C1

GASKET

1шт.

7

1014918C1

BOLT

6шт.

8

WASHER, M8 lock, purchase locally

6шт.

9

1014933C1

BOLT

M10 x 20mm

2шт.

10

980493C1

WASHER

M10

2шт.

11

1002776C2

HOSE ASSY.

HOSE, inlet

1шт.

12

1002777C2

HOSE ASSY.

HOSE, outlet

1шт.

13

CLAMP (purchase locally)

3шт.

14

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8, Serial no. 011793 and below

4шт.

15

897948C1

WASHER

serial no. 011793 and below

4шт.

16

1014518C1

STRIP

CUSHION, baffle, serial no. 10308 and below

1шт.

17

1014517C1

STRIP

CUSHION, baffle, serial no. 10308 and below

1шт.

18

1002812C2

BRACKET

serial no. 011793 and below

2шт.

19

1014518C1

STRIP

CUSHION, baffle, serial no. 10309 and above

1шт.

20

CLAMP, purchase locally

1шт.
