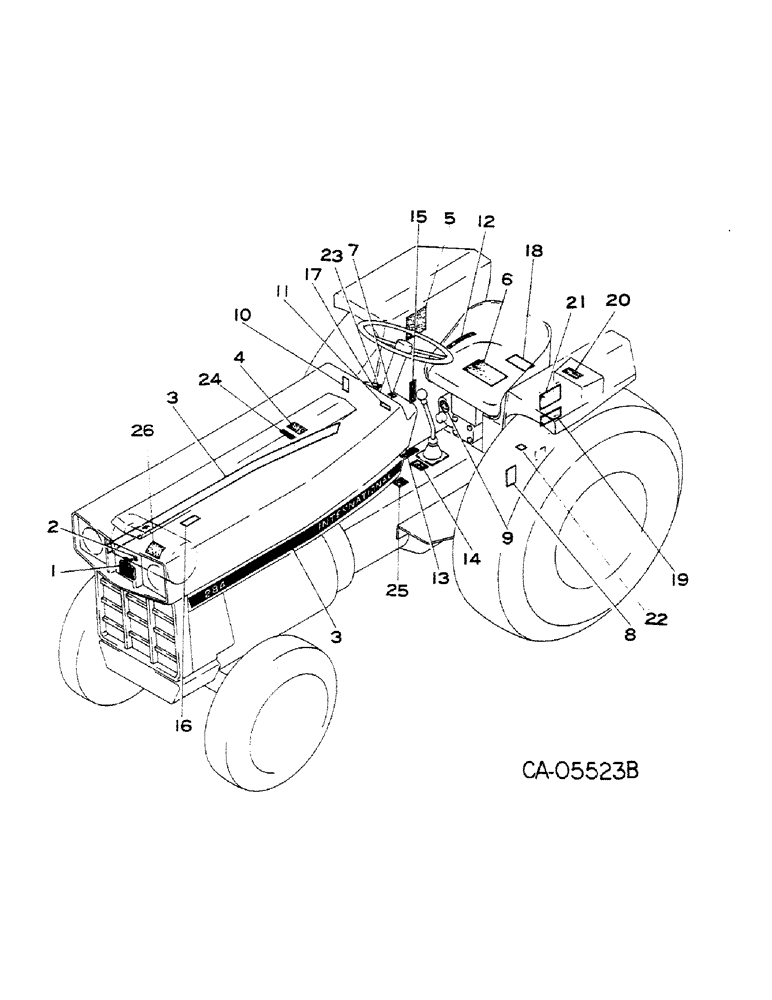

Запчасти Case IH 284 (02-03) - MISCELLANEOUS, PRODUCT GRAPHICS Accessories & Attachments / Miscellaneous

1004417C94

PACKAGE

product graphics, consists of references number 3 - 26, all gasoline tractors, 2 wheel drive diesel tractors w/serial no. 002998 and below, 4 wheel drive diesel tractors w/serial no. 003034 and below

1шт.

1437895R91

PACKAGE

product graphics, consists of ref nos. 3 - 26, 2 wheel drive diesel tractors w/serial no. 002999 and above, 4 wheel drive diesel tractors w/serial no. 003035 and above

1шт.

1

120397C1

EMBLEM CASE/IH

PRODUCT GRAPHIC, IH, replaces 529479R1 by also ordering two screws, 1432066R1

1шт.

2

445165

NUT,5/32", Push-on

5/32 med PHC spr style I, for use w/529479R1

2шт.

2

1432066R1

SCREW

IH product graphic, for use w/120397C1

2шт.

3

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, 284 LH

1шт.

3

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, 284 RH

1шт.

4

132535C2

DECAL

PRODUCT GRAPHIC, caution fire

1шт.

5

1135087R1

PRODUCT GRAPHIC

caution

1шт.

6

120391C1

DECAL

PRODUCT GRAPHIC, caution battery

1шт.

7

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, ignition

1шт.

8

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, park brake

1шт.

9

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, drop control

1шт.

10

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, throttle

1шт.

11

NSS

NOT SOLD SEPARAT

PROCUCT GRAPHIC, low fuel

1шт.

12

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, position

1шт.

13

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, speed range

1шт.

14

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, shift (NSS)

1шт.

15

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, diff lock

1шт.

16

1434136R1

PRODUCT GRAPHIC

cooling system

1шт.

17

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, light switch

1шт.

18

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, hy-tran fluid

1шт.

19

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, PTO control

1шт.

20

64553C2

PRODUCT GRAPHIC

caution PTO drive

1шт.

21

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, PTO control lock

1шт.

22

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, lock plate 540 RPM PTO

1шт.

22

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, lock plate 1000 RPM PTO

1шт.

23

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, flasher

1шт.

24

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, diesel

1шт.

25

NSS

NOT SOLD SEPARAT

PRODUCT GRAPHIC, 4 WD diesel

1шт.

26

1135227R1

PRODUCT GRAPHIC

starting warning

1шт.
