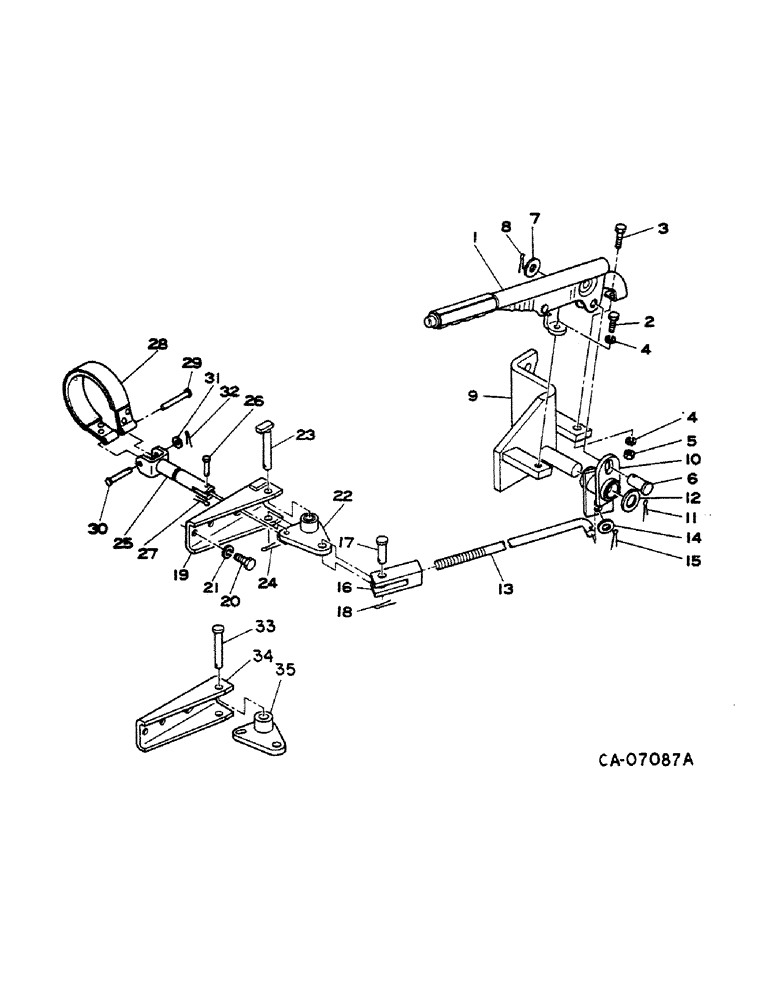

Запчасти Case IH 284 (04-06) - BRAKES, PARKING BRAKE, DIESEL ENGINE TRACTORS (5.1) - BRAKES

1

1061527C91

BRAKE

PARKING BRAKE ASSY

1шт.

2

978098C1

BOLT,Hex, M8 x 1.25 x 20mm

M8 x 20mm

1шт.

3

980490C1

BOLT

M8 x 25mm

1шт.

4

897948C1

WASHER

M8 lock

2шт.

5

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.

6

1061586C2

PIN

1шт.

7

20869R1

WASHER

.531 x .875 x .054

1шт.

8

1014976C1

PIN

1шт.

9

1061744C1

BRACKET

parking

1шт.

1064659C1

BOLT

2шт.

10

1061749C1

ARM

ASSY

1шт.

1061754C1

BUSHING

2шт.

11

PIN, cotter, purchase locally

1шт.

12

1060848C1

WASHER

19mm x 36mm x 2.6mm

1шт.

13

1061755C1

ROD

parking

1шт.

14

978080C1

WASHER

1шт.

15

1061170C1

PIN, cotter

1шт.

16

1060399C1

YOKE

1шт.

17

1060400C1

PIN

1шт.

18

1014976C1

PIN

cotter

1шт.

19

BRACKET, parking, order bracket, 984392C1, pin 22963R1 and pin 103384, serial no. J002686 and below

1шт.

20

980496C1

BOLT,M8

BOLT, M8 x 16mm

2шт.

21

897948C1

WASHER

M8 lock

2шт.

22

1061756C1

LEVER

ASSY, order 1434018R1, serial no. J002686 and below

1шт.

1061346C1

BUSHING

dry

2шт.

23

1061347C1

PIN

serial no. J002686 and below

1шт.

24

1061170C1

PIN, cotter, serial no. J002686 and below

1шт.

25

973924C2

ROD

brake

1шт.

26

1014984C1

PIN

1шт.

27

988231C1

PIVOT

PIN, cotter

1шт.

28

973918C93

BAND

ASSY, brake

1шт.

29

973922C1

AXLE PIN

PIN

1шт.

30

973923C1

PIN

1шт.

31

978085C1

WASHER

M6 x M11.5 x M0.8

1шт.

32

988231C1

PIVOT

PIN, cotter

1шт.

33

22963R1

HEADED PIN,5/16" x 2 1/4"

PIN, 5/16 x 2.250 hd type 5, serial no. J002687 and above

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

34

984392C1

BRACKET

parking, serial no. J002687 and above

1шт.

35

1434018R1

LEVER

ASSY, serial no. J002687 and above

1шт.
