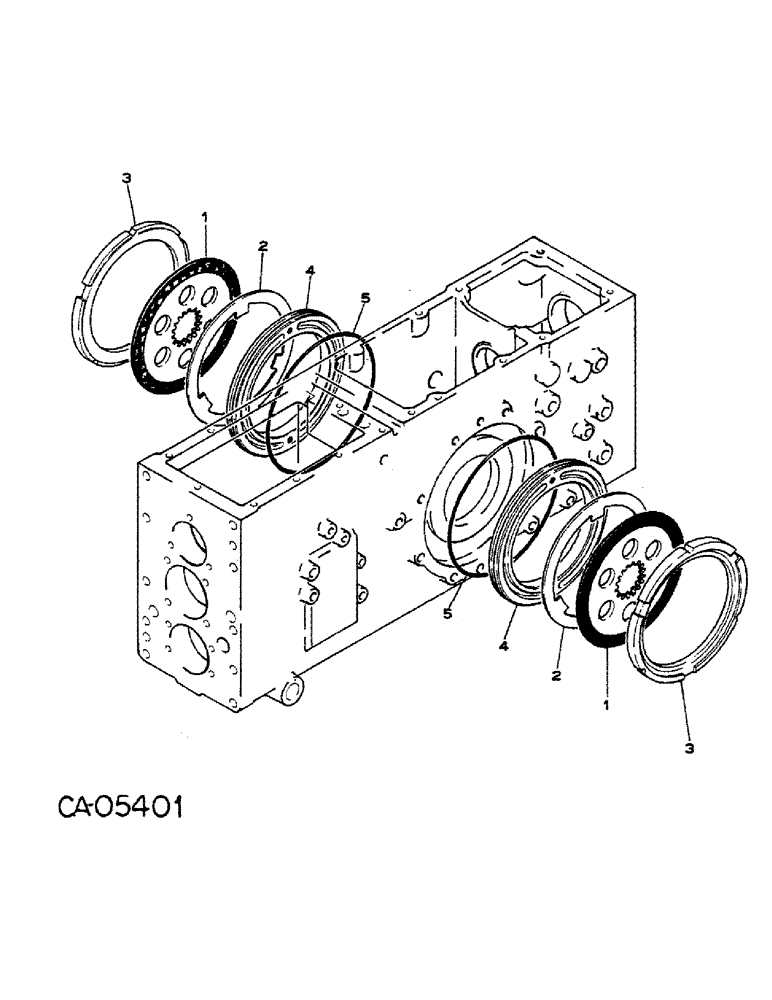

Запчасти Case IH 284 (04-01) - BRAKES, MAIN BRAKE (5.1) - BRAKES

1

973625C2

BRACKET

DISC, brake gasoline engine tractors with serial no. 009036 and below

1шт.

Ref. 1 - 973625C1 Not C2 as shown

1шт.

1

1004454C1

DISC

brake gasoline engine tractors with serial no. 009037 and above diesel engine tractors

1шт.

2

973628C2

RING

brake inner gasoline engine tractors with serial no. 011793 and below

1шт.

3

1064152C1

RING

brake outer refer to group 07, rear axle (Replaces DASHPART)

1шт.

4

973630C3

PISTON ASSY.

PISTON, brake gasoline engine tractors with serial no. 011793 and below

1шт.

Ref. 4 - 973630C3 Used in S/N unit up to 2309

1шт.

1004938C2 Used in units from S/N 2310 - 2474.

1шт.

1431706R2 Used in units S/N 2475 and above.

1шт.

4

PISTON, brake gasoline engine tractors with serial no. 011794 and above diesel engine tractors w/serial no. 002674 and below (NSS)

1шт.

4

1431706R2

PISTON

brake diesel tractor w/serial no. 002675 and above

1шт.

5

973631C1

O-RING,200.2mm ID x 3.5mm Width

(replaces 1014696C1)

1шт.
