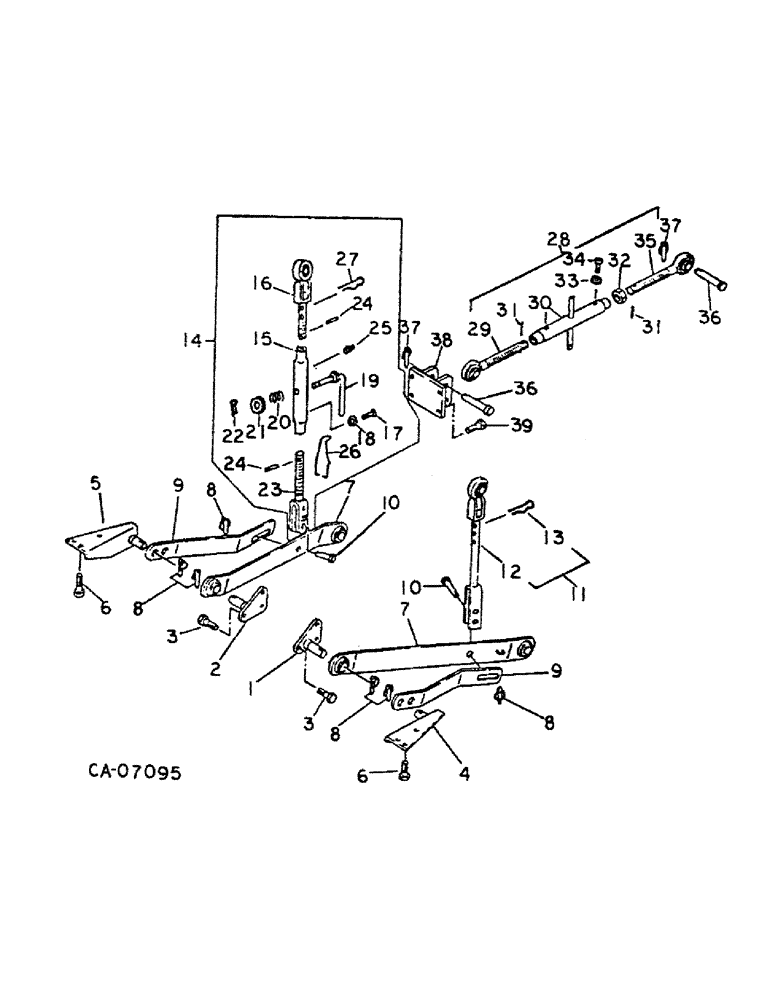

Запчасти Case IH 284 (09-04) - FRAME, THREE POINT HITCH, DIESEL ENGINE TRACTORS (12) - FRAME

1

973785C2

BRACKET

LH

1шт.

2

973786C2

BRACKET

RH

1шт.

3

1012981C1

BOLT

M12 x 30mm

6шт.

4

973736C3

BRACKET

LH

1шт.

5

973737C3

BRACKET

RH

1шт.

6

1012959C1

BOLT

M12 x 25mm

3шт.

7

973787C5

LINK

lower

2шт.

8

984182C1

AXLE PIN

PIN, linch

8шт.

9

973734C4

STABILIZER

2шт.

10

973733C2

PIN

2шт.

11

1060539C92

ARM ASSY.

LINK ASSY, lift LH

1шт.

12

1436503R1

LINK

lift, replaces 1061103C1

1шт.

13

1061365C1

PIN

stopper

1шт.

14

1060545C93

HYDRAULIC LIFT

LINK ASSY, lift RH

1шт.

15

1436440R1

TURNBUCKLE

replaces 1060547C1

1шт.

16

1436446R1

LINK

upper, replaces 1061126C1

1шт.

17

1003970C1

SCREW

used only w/turnbuckle, 1060547C1

1шт.

18

1003971C1

WASHER

used only w/turnbuckle, 1060547C1

1шт.

19

1060546C1

HANDLE

used only w/turnbuckle, 1060547C1

1шт.

20

899896R1

SPRING

used only w/turnbuckle, 1060547C1

1шт.

21

1014959C1

WASHER

used only w/turnbuckle, 1060547C1

1шт.

22

1014976C1

PIN

cot., used only w/turnbuckle, 1060547C1

1шт.

23

1436437R1

LINK

lower, replaces 1060542C1

1шт.

24

897339C1

PIN

4 x 24 spring, replaces 1014610C1

1шт.

25

1014603C1

FITTING

1/8 str lub

1шт.

26

1060544C1

LATCH

used only w/turnbuckle, 1060547C1

1шт.

27

1061365C1

PIN

stopper

1шт.

28

974477C94

LINK

ASSY, upper

1шт.

29

1014609C2

LINK

front

1шт.

30

1014607C2

TURNBUCKLE

1шт.

31

897339C1

PIN

replaces 1014610C1

2шт.

32

1014611C1

NUT

1шт.

33

978084C1

WASHER

replaces 1003971C1

2шт.

34

1003970C1

SCREW

2шт.

35

1014608C2

LINK

rear

1шт.

36

973796C2

AXLE PIN

PIN

2шт.

37

984182C1

AXLE PIN

PIN, linch

2шт.

38

973760C3

BRACKET

also order four bolts, 1012959C1 for 2 wheel drive tractors w/serial no. 003262 and below, 4 wheel drive tractors with serial no. 003166 and below

1шт.

39

30042R1

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

M12 x 30mm class 8.8, 2 wheel drive tractors w/serial no. 003262 and below, 4 wheel drive tractors w/serial no. 003166 and below

4шт.

39

1012959C1

BOLT

M12 x 25mm class 8.8, 2 wheel drive tractors w/serial no. 003263 and above, 4 wheel drive tractors w/serial no. 003167 and above

4шт.
