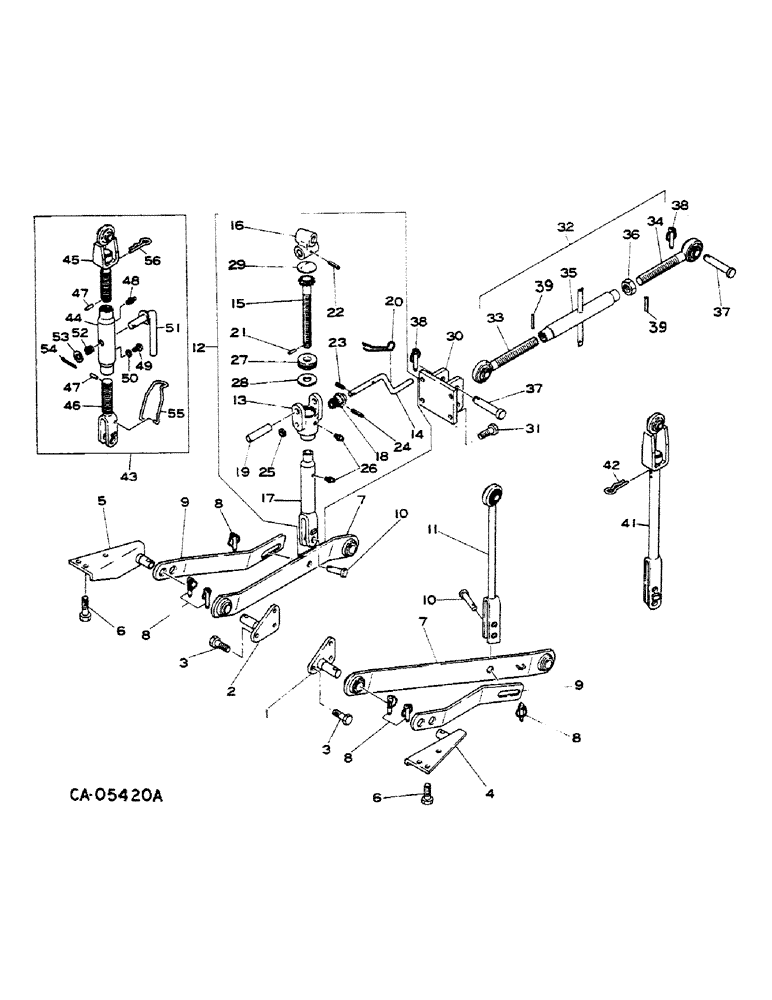

Запчасти Case IH 284 (09-02) - FRAME, THREE POINT HITCH, GASOLINE ENGINE TRACTORS (12) - FRAME

1

973785C2

BRACKET

LH

1шт.

2

973786C2

BRACKET

RH

1шт.

3

30042R1

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

M12 x 30 PHC class 10.9

6шт.

4

973736C3

BRACKET

stabilizer LH

1шт.

5

973737C3

BRACKET

stabilizer RH

1шт.

6

1012959C1

BOLT

M12 x 25 class 8.8

6шт.

7

973787C5

LINK

lower

2шт.

8

984182C1

AXLE PIN

PIN, linch

8шт.

9

973734C4

STABILIZER

2шт.

10

973733C2

PIN

2шт.

11

ROD, lifting LH, serial no. 12443 and below, order link, 1061103 C1 and pin, 1061365C1

1шт.

12

974476C92

ROD ASSY, lifting RH, serial no. 12493 and below, order link 1060545C92

1шт.

13

1014588C1

CASE

GEAR CASE

1шт.

14

1014589C1

CRANK

1шт.

15

1014590C1

GEAR

1шт.

16

1014591C1

PIVOT

SWIVEL

1шт.

17

1014592C1

ROD

lifting RH

1шт.

18

1014594C1

GEAR

PINION

1шт.

19

1014595C1

PIN

swivel

1шт.

20

1014596C1

STOP

PER, crank

1шт.

21

1014598C1

PIN

roll 3 x 20

1шт.

22

1014599C1

PIN

roll 5 x 32

1шт.

23

1014600C1

PIN

roll 6 x 20

1шт.

24

1014601C1

PIN

roll 6 x 25

1шт.

25

1014602C1

WASHER

1шт.

26

1014603C1

FITTING

1/8 str lub

2шт.

27

1014604C1

BEARING

THRUST BEARING

1шт.

28

1014605C1

SHIM

1шт.

29

1014606C1

PLATE

gear case

1шт.

30

973760C3

BRACKET

also order four bolts, 1012959C1 for tractors with serial no. 013454 and below

1шт.

31

30042R1

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

M12 x 30mm class 8.8, tractors w/serial no. 013454 and below

4шт.

31

1012959C1

BOLT

M12 x 25mm class 8.8, tractors w/serial no. 013455 and above

4шт.

32

974477C94

LINK

ASSY, upper

1шт.

33

1014609C2

LINK

front

1шт.

34

1014608C2

LINK

rear

1шт.

35

1014607C2

TURNBUCKLE

1шт.

1003970C1

SCREW

2шт.

978084C1

WASHER

2шт.

36

1014611C1

NUT

1шт.

37

973796C2

AXLE PIN

PIN

2шт.

38

984182C1

AXLE PIN

PIN, linch

2шт.

39

897339C1

PIN

replaces 1014610C1

2шт.

40

NOT USED

1шт.

41

1061103C1

LINK

lift

1шт.

42

1061365C1

PIN

stopper

1шт.

43

1060545C92

LIFT LINK

LINK ASSY, lift RH, serial no. 12493 and above

1шт.

44

1436440R1

TURNBUCKLE

replaces 1060547C1

1шт.

45

1436446R1

LINK

upper, replaces 1061126C1

1шт.

46

1436437R1

LINK

lower, replaces 1060542C1

1шт.

47

897339C1

PIN

4 x 24 spring, replaces 1014610C1

2шт.

48

1014603C1

FITTING

1/8 str lub

1шт.

49

1003970C1

SCREW

used only w/turnbuckle, 1060547C1

1шт.

50

1003971C1

WASHER

used only w/turnbuckle, 1060547C1

1шт.

51

1060546C1

HANDLE

used only w/turnbuckle, 1060547C1

1шт.

52

899896R1

SPRING

used only w/turnbuckle, 1060547C1

1шт.

53

1014959C1

WASHER

used only w/turnbuckle, 1060547C1

1шт.

54

1014976C1

PIN

cot., used only w/turnbuckle, 1060547C1

1шт.

55

1060544C1

LATCH

used only w/turnbuckle, 1060547C1

1шт.

56

1061365C1

PIN

stopper

1шт.
