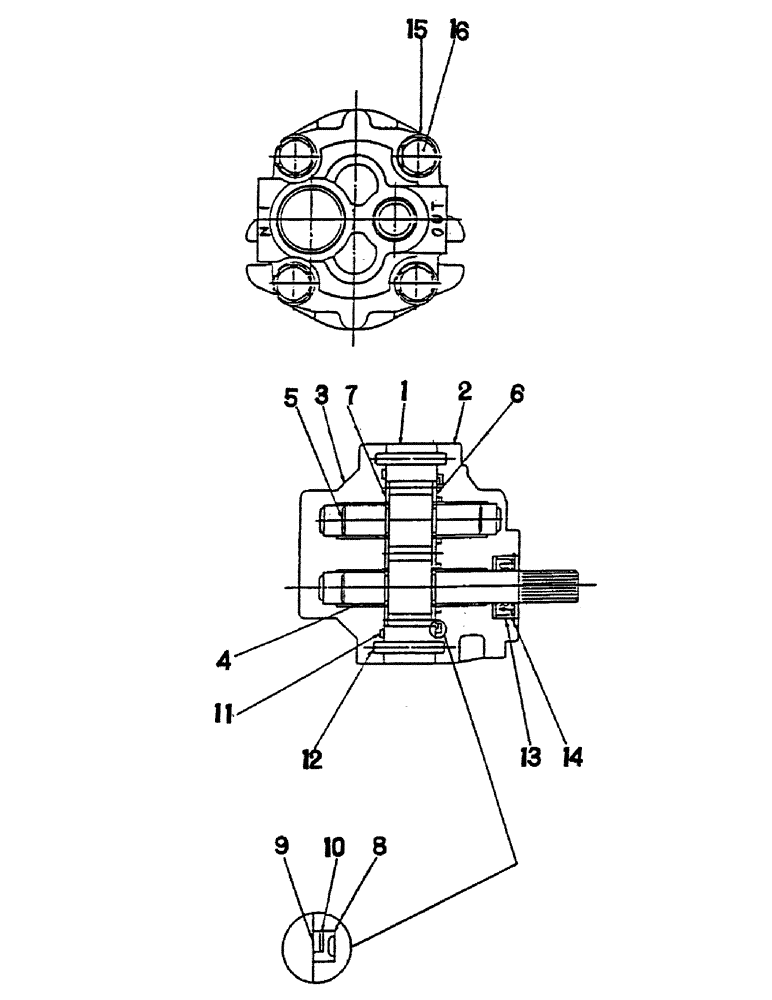

Запчасти Case IH 284 (10-20) - HYDRAULICS, HYDRAULIC PUMP (07) - HYDRAULICS

1437109R91

PUMP

ASSY, hydraulic

1шт.

1437108R91

PUMP

ASSY, hydraulic, tractors with power steering

1шт.

1

PLATE, gear (NSS)

1шт.

2

FLANGE, mounting (NSS)

1шт.

3

COVER (NSS)

1шт.

4

GEAR, drive (NSS)

1шт.

5

GEAR, driven (NSS)

1шт.

6

PLATE, side - A (NSS)

1шт.

7

PLATE, side - B (NSS)

1шт.

8

SEAL, balance, (NSS)

1шт.

Order kit, 1438787R91

1шт.

9

GASKET - A, (NSS)

1шт.

Order kit, 1438787R91

1шт.

10

GASKET - B, (NSS)

1шт.

Order kit, 1438787R91

1шт.

11

O-RING, cover, (NSS)

1шт.

Order kit, 1438787R91

1шт.

12

1437648R1

PIN

dowel, for use w/pump, 1437109R91

2шт.

12

1437649R1

PIN

dowel, for use w/pump, 1437108R91

2шт.

13

SEAL, oil, (NSS)

1шт.

Order kit, 1438787R91

1шт.

14

RING, snap, (NSS)

1шт.

Order kit, 1438787R91

1шт.

15

1437654R1

WASHER

4шт.

16

1437652R1

BOLT

for use w/pump, 1437109R91

4шт.

16

1437653R1

BOLT

for use w/pump, 1437108R91

4шт.

1438787C91

KIT, hydraulic pump service, consists of ref nos 8 - 11, 13 and 14

1шт.
