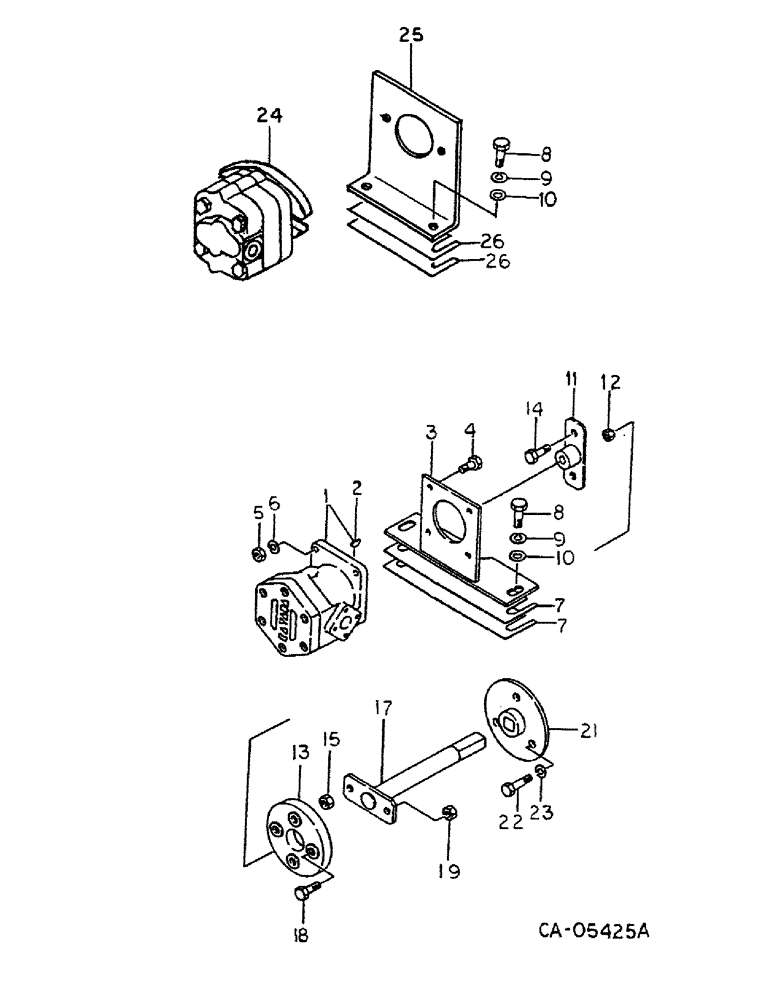

Запчасти Case IH 284 (10-18) - HYDRAULICS, HYDRAULIC PUMP CONNECTING, GASOLINE ENGINE TRACTORS (07) - HYDRAULICS

1

983859C12

PUMP

ASSY, hydraulic gear, see detail list

1шт.

2

983861C1

KEY

1шт.

3

1002778C2

BRACKET

gear pump, serial no. 011793 and below

1шт.

3

1060291C1

BRACKET

gear pump, serial no. 011794 and above

1шт.

4

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

5

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

6

897948C1

WASHER

lock

4шт.

7

1002806C2

SHIM

1.0mm, serial no. 011793 and below

1шт.

7

1060292C1

SHIM

1.0mm, serial no. 011794 and above

1шт.

7

1004911C1

SHIM

0.5mm, serial no. 011793 and below

1шт.

7

1060291C1

BRACKET

SHIM, 0.5mm, serial no. 011794 and above

1шт.

8

30003R1

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

M8 x 25 PHC class 10.9

2шт.

9

897948C1

WASHER

lock

2шт.

10

25552R1

WASHER,.344" x 1" x .098", HDN

.344 x 1.000 x .098 PHC hdn

2шт.

11

983856C3

COUPLING

1шт.

11

1430174R1

COUPLING

tractor w/power steering

1шт.

12

1014953C1

NUT

self-sealing

1шт.

13

984504C2

COUPLING

1шт.

14

1004544C1

BOLT

replaces 1014921C1

2шт.

15

1014953C1

NUT

2шт.

16

NOT USED

1шт.

17

1002780C2

SHAFT

COUPLING

1шт.

17

1430177R1

SHAFT

COUPLING, tractors w/power steering

1шт.

18

1004544C1

BOLT

replaces 1014921C1

2шт.

19

1014953C1

NUT

2шт.

20

NOT USED

1шт.

21

1002779C3

COUPLING

1шт.

22

30007R1

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

M8 x 45 PHC class 10.9

3шт.

23

897948C1

WASHER

lock

3шт.

24

1430171R91

PUMP

W/KEY ASSY, hydraulic gear tractors w/power steering

1шт.

980498C1

BOLT (SPREADER)

BOLT, M10 x 30 class 8.8

2шт.

1430185R1

NUT, M10

2шт.

978080C1

WASHER

M10 lock

2шт.

25

1430172R1

BRACKET

pump mtg, tractors w/power steering

1шт.

26

1004911C1

SHIM

0.5mm

1шт.

26

1060292C1

SHIM

1.0mm, tractors w/power steering

1шт.
