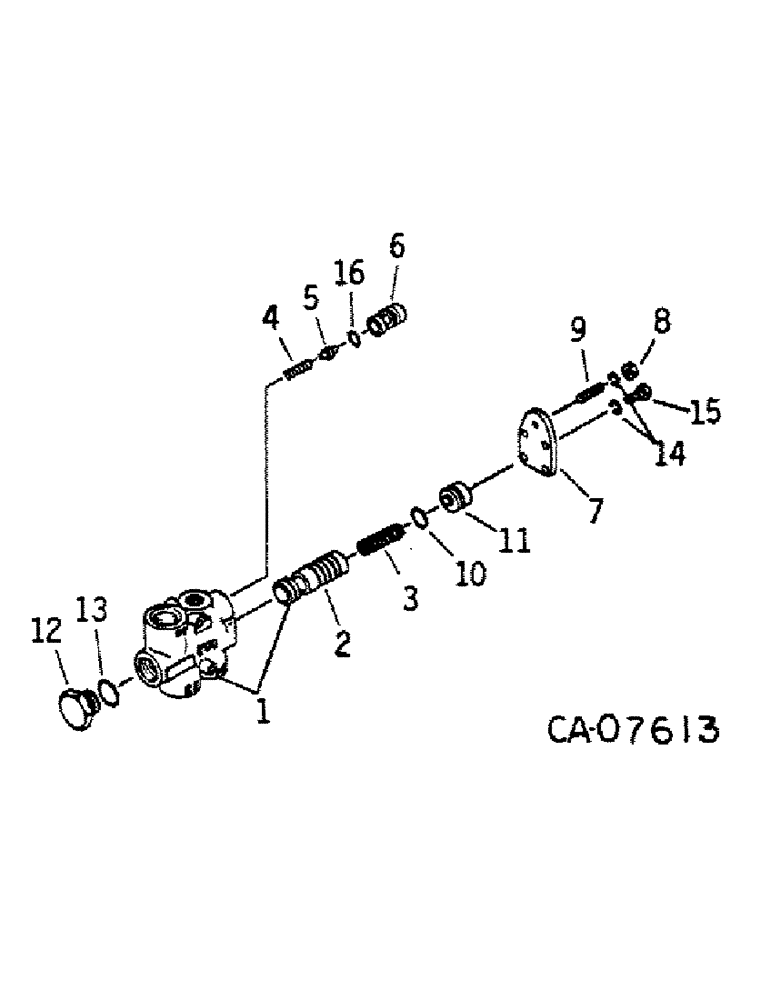

Запчасти Case IH 284 (10-09) - HYDRAULICS, FLOW DIVIDER (07) - HYDRAULICS

1063532C92

DIVIDER

FLOW DIVIDER ASSY, for 2 wheel drive tractor, relief pressure 70 kg/cm

1шт.

1432174R92

DIVIDER

FLOW DIVIDER ASSY, for all wheel drive tractor, relief pressure 120 kg/cm

1шт.

1

1432246R1

SET

BODY AND SPOOL SET

1шт.

2

SPOOL (NSS)

1шт.

3

1432247R1

SPRING

1шт.

4

1432252R1

SPRING

relief valve, for flow divider, 1063532C92

1шт.

4

1432236R2

SPRING

relief valve, for flow divider, 1432174R92

1шт.

5

1432253R1

BALL

POPPET, relief valve

1шт.

6

1432254R1

HOUSING

relief valve

1шт.

7

1432255R1

PLATE

1шт.

8

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.

9

1432257R1

SCREW

set

1шт.

10

NOT USED

1шт.

11

1432249R1

PLUG

1шт.

12

1432251R1

PLUG

1шт.

13

1432250R1

RING

O-RING

1шт.

14

897948C1

WASHER

8mm lock

5шт.

15

978098C1

BOLT,Hex, M8 x 1.25 x 20mm

M8 x 20mm

4шт.

16

1062275C1

O-RING

1шт.
