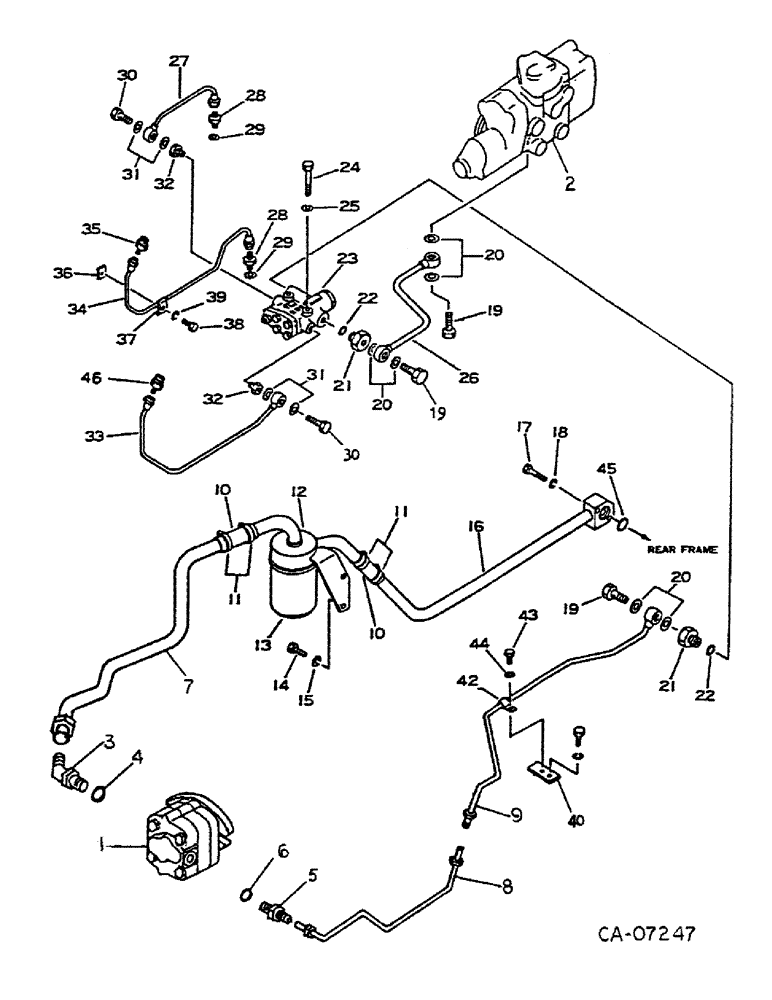

Запчасти Case IH 284 (10-08) - HYDRAULICS, HYDRAULIC PIPING, GASOLINE ENGINE TRACTORS WITH POWER STEERING (07) - HYDRAULICS

1

983859C12

PUMP

ASSY, hydraulic

1шт.

2

VALVE ASSY, control, see detail list

1шт.

3

1430183R1

ELBOW

low pressure

1шт.

4

1004456C1

O-RING,23.7mm ID x 3.5mm Width

O-RING

1шт.

5

1430182R1

ADAPTER

high pressure

1шт.

6

1017790C1

O-RING

1шт.

7

1430188R1

PIPE

low pressure front

1шт.

8

1430180R1

PIPE

high pressure front

1шт.

9

1430186R1

PIPE

high pressure rear

1шт.

10

1059980C1

HOSE

2шт.

11

CLAMP, purchase locally

4шт.

12

1059945C1

CAP

oil filter

1шт.

13

1004366C1

FILTER ASSY

FILTER, oil

1шт.

14

980490C1

BOLT

M8 x 25

2шт.

15

25552R1

WASHER,.344" x 1" x .098", HDN

.344 x 1.000 x .098 PHC hdn

2шт.

16

1059940C1

PIPE

low pressure rear

1шт.

17

1012978C1

BOLT

M8 x 50

2шт.

18

897948C1

WASHER

M8 lock

2шт.

19

974112C1

FITTING,Hex, 30mm, Drilled

BOLT, joint

3шт.

20

973254C1

GASKET

6шт.

21

1059908C1

BOLT

joint

2шт.

22

1004456C1

O-RING,23.7mm ID x 3.5mm Width

O-RING

2шт.

23

1063532C92

DIVIDER

FLOW DIVIDER ASSY, see detail list

1шт.

24

1012974C1

BOLT

M6 x 55

2шт.

25

978171C1

WASHER

M6 lock

2шт.

26

1059914C1

TUBE

ASSY

1шт.

27

1430388R1

TUBE

flow divider drain

1шт.

28

1060578C1

NIPPLE, LUBE

NIPPLE

2шт.

29

979819C1

WASHER

GASKET

2шт.

30

1059971C1

BOLT

JOINT

2шт.

31

1059909C1

WASHER

4шт.

32

1059910C1

CONNECTOR, ELEC

CONNECTOR

2шт.

33

1059963C1

TUBE

1шт.

34

1430390R1

TUBE,322, 113 mm Length

1шт.

35

1059907C2

NIPPLE, LUBE

NIPPLE

1шт.

36

1430012R1

CLAMP

1шт.

37

384891R1

CLAMP

1шт.

38

980495C1

SCREW

BOLT, M6 x 12

1шт.

39

978084C1

WASHER

M6 lock

1шт.

40

1059965C1

PLATE

1шт.

41

NOT USED

1шт.

42

773940R1

CLAMP

HOLDER, pipe

1шт.

43

1012976C1

BOLT

1шт.

44

897948C1

WASHER

1шт.

45

974111C1

O-RING

1шт.

46

1431679R91

VALVE

ASSY, check

1шт.
