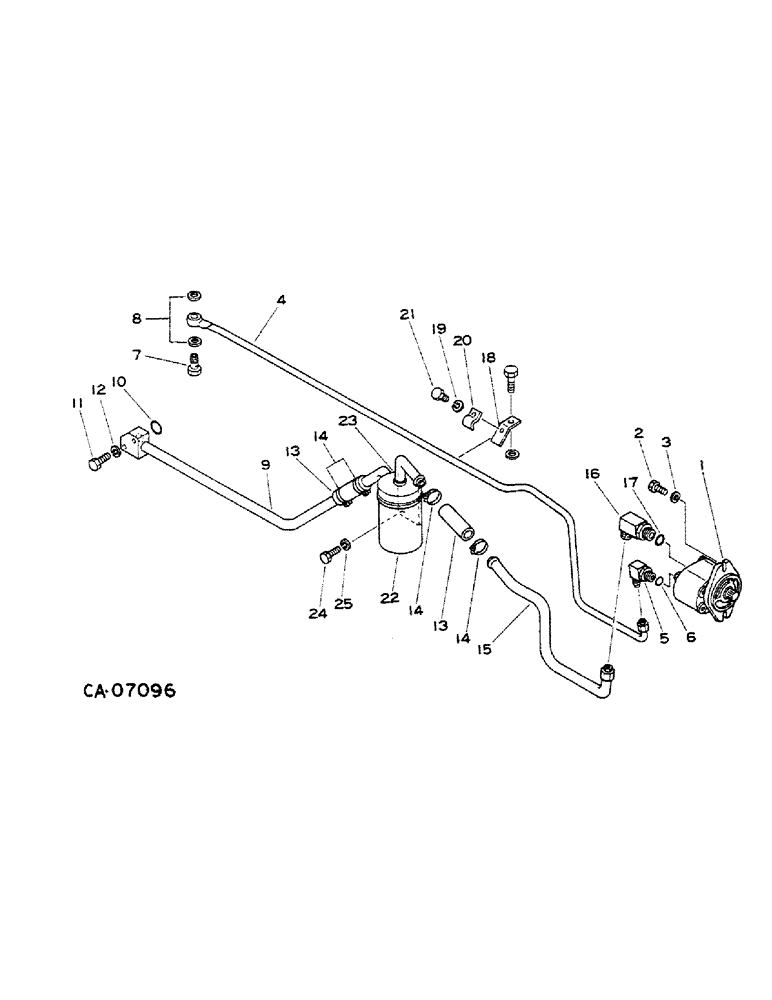

Запчасти Case IH 284 (10-07) - HYDRAULICS, HYDRAULIC PIPING, DIESEL ENGINE TRACTORS, WITHOUT POWER STEERING (07) - HYDRAULICS

1

1061551C93

PUMP

ASSY, hydraulic, see detail list, 4 wheel drive diesel engine tractors w/serial no. 002972 and below, 2 wheel drive diesel engine tractors w/serial no. 002974 and below

1шт.

1

1437109R91

PUMP

ASSY, hydraulic, see detail list, 4 wheel drive diesel engine tractors w/serial no. 002973 and above, 2 wheel drive diesel engine tractors w/serial no. 002975 and above

1шт.

2

1060581C1

BOLT

2шт.

3

989464C1

WASHER

M10 x M22 x M3.2

2шт.

4

1061214C3

PIPE

high pressure

1шт.

5

1061207C1

ELBOW

high pressure, used w/pump assy, 1061551C93

1шт.

5

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1/2 C-Z hyd fld adj 90D, high pressure, used w/pump assy, 1437109R91

1шт.

6

1019543C1

OIL SEAL

O-RING, used w/pump assy, 1061551C93

1шт.

6

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6, used w/pump assy, 1437109R91

1шт.

7

974112C1

FITTING,Hex, 30mm, Drilled

BOLT, joint

1шт.

8

973254C1

GASKET

2шт.

9

1004815C1

PIPE

low pressure rear

1шт.

10

974111C1

O-RING

1шт.

11

1012978C1

BOLT

M8 x 50mm

2шт.

12

897948C1

WASHER

M8 lock

2шт.

13

1014725C1

HOSE,19.00 mm ID x 100.00 mm

2шт.

14

CLAMP, purchase locally

4шт.

15

1062570C1

PIPE

low pressure front

1шт.

16

1061206C1

ELBOW, low pressure, used w/pump assy, 1061551C93

1шт.

16

1437071R1

ELBOW

low pressure, used w/pump assy, 1437109R91

1шт.

17

1004456C1

O-RING,23.7mm ID x 3.5mm Width

O-RING

1шт.

18

1064574C2

BRACKET

1шт.

19

897948C1

WASHER

1шт.

20

773940R1

CLAMP

HOLDER, oil pipe

1шт.

21

1012976C1

BOLT

M8 x 12mm

1шт.

22

1004366C1

FILTER ASSY

oil

1шт.

23

1004814C1

CAP

oil filter

1шт.

24

980490C1

BOLT

M8 x 25mm

2шт.

25

25552R1

WASHER,.344" x 1" x .098", HDN

.344 x 1.000 x .098 PHC hdn

2шт.
