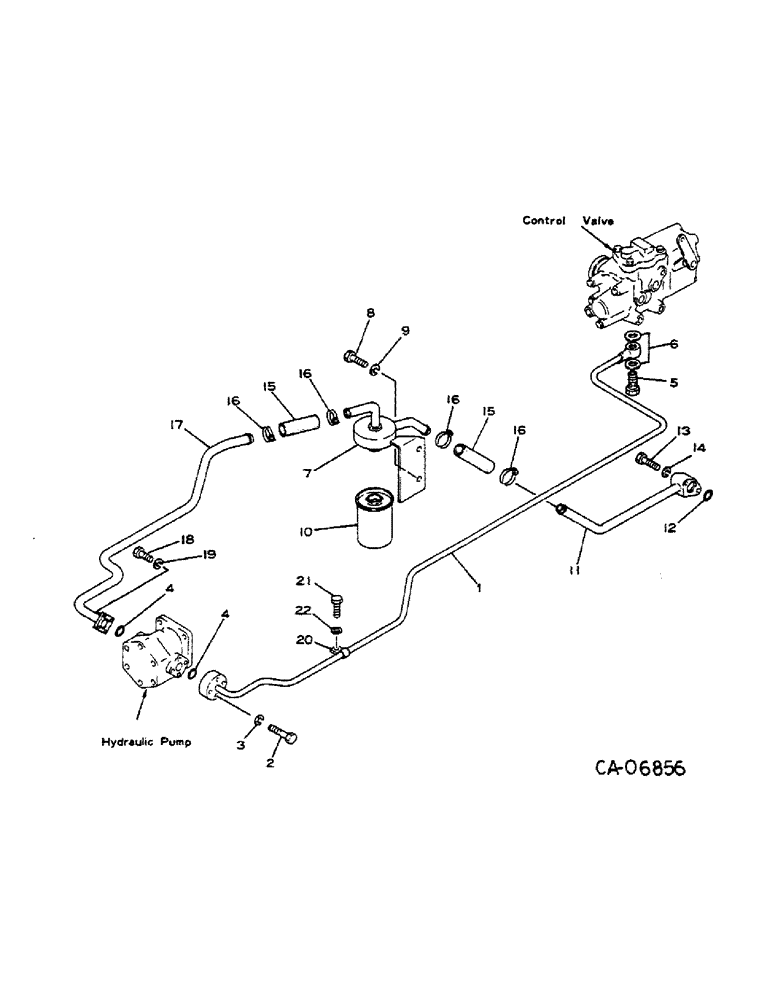

Запчасти Case IH 284 (10-06) - HYDRAULICS, HYDRAULIC PIPING, GASOLINE ENGINE TRACTORS, WITHOUT POWER STEERING (07) - HYDRAULICS

1

1002804C2

PIPE

high pressure

1шт.

2

980657C1

BOLT

M6 x 35

4шт.

3

978084C1

WASHER

M6 lock

4шт.

4

974487C1

O-RING

2шт.

5

974112C1

FITTING,Hex, 30mm, Drilled

BOLT, joint

1шт.

6

973254C1

GASKET

2шт.

7

1004814C1

CAP

oil filter (replaces 974120C4)

1шт.

8

1014923C1

BOLT, M12 x 20, tractors w/serial no. 013454 and below

2шт.

8

980490C1

BOLT

M8 x 25, tractors w/serial no. 013455 and above

2шт.

9

988891C1

WASHER

M12 lock, tractors w/serial no. 013454 and below

2шт.

9

25552R1

WASHER,.344" x 1" x .098", HDN

.344 x 1.000 x .098 PHC hdn, tractors w/serial no. 013455 and above

2шт.

10

1004366C1

FILTER ASSY

FILTER, oil (replaces 677709C91)

1шт.

11

1004815C1

PIPE

low pressure rear (replaces 974116C3)

1шт.

12

974111C1

O-RING

1шт.

13

1012978C1

BOLT

M8 x 50 class 8.8

2шт.

14

897948C1

WASHER

lock

2шт.

15

1014725C1

HOSE,19.00 mm ID x 100.00 mm

2шт.

16

CLAMP, purchase locally

4шт.

17

1004813C1

PIPE

low pressure, rear (replaces 1002805C2 & 1002980C2)

1шт.

18

980657C1

BOLT

M6 x 35

3шт.

19

978084C1

WASHER

M6 lock

3шт.

20

1012250C1

CLAMP

1шт.

21

980496C1

BOLT,M8

BOLT

1шт.

22

897948C1

WASHER

M8 lock

1шт.

974119C3

BRACKET, serial no. 011292 and below

1шт.
