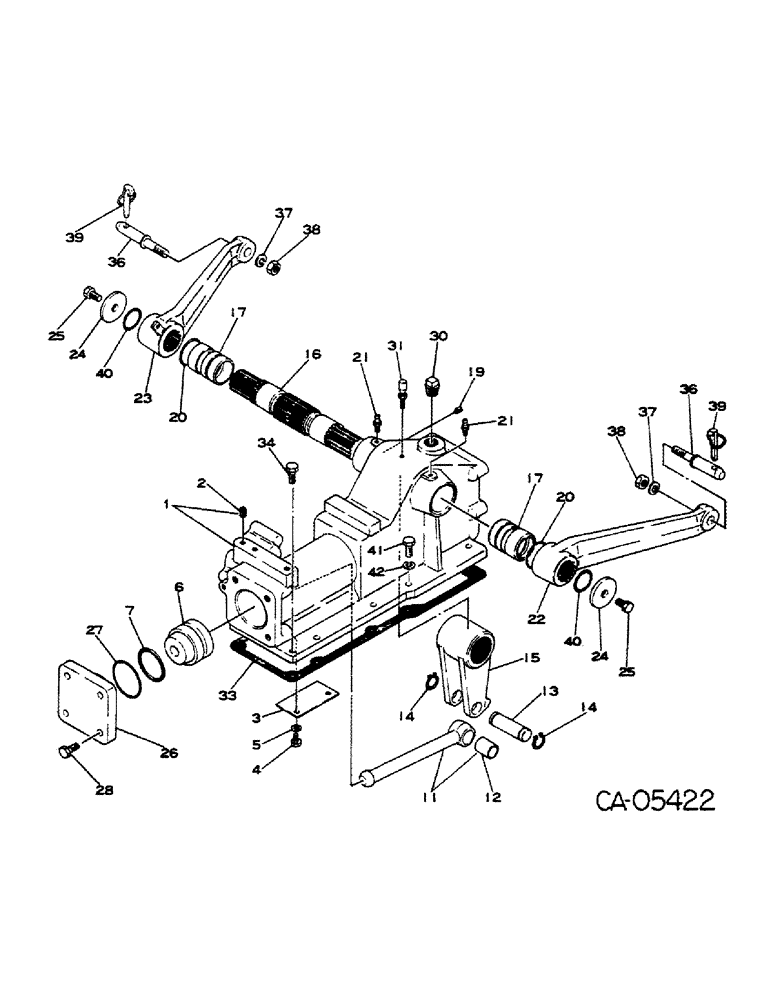

Запчасти Case IH 284 (10-04) - HYDRAULICS, HYDRAULIC HOUSING AND CYLINDER (07) - HYDRAULICS

1

973518C92

CASE

ASSY, hydraulic, all gasoline tractors, diesel tractors w/ serial no. 002463 and below

1шт.

1

1435308R91

CASE

ASSY, hydraulic, diesel tractors w/serial no. 002464 and above

1шт.

2

979828C1

PLUG

3шт.

3

973428C2

PLATE

1шт.

4

931562R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

M8 x 16 PHC class 8.8, gasoline tractors w/serial no. 013454 and below, diesel tractor w/serial no. 002674 and below

2шт.

4

30000R1

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

M8 x 12 PHC class 10.9, gasoline tractors w/serial no. 013455 and above, diesel tractors w/serial no. 002675 and above

2шт.

5

WASHER, spring, used only w/bolt, 30001R1, purchase locally

2шт.

6

973519C4

PISTON

1шт.

7

983823C1

O-RING,59.6mm ID x 5.7mm Width

O-RING

1шт.

7

1014372C1

RING

back up

1шт.

8

NOT USED

1шт.

9

NOT USED

1шт.

10

NOT USED

1шт.

11

ROD W/BUSHING, order 1436623R1, 2 wheel drive tractors w/serial no. 003262 and below, 4 wheel drive tractors w/serial no. 003118 and below

1шт.

11

1436623R1

ROD

W/O BUSHING, 2 wheel drive tractors w/serial no 003263 and above, 4 wheel drive tractors w/serial no. 003119 and above

1шт.

12

973524C1

BUSHING, rod, 2 wheel drive tractors w/serial no. 003262 and below, 4 wheel drive tractors w/serial no 003118 and below

1шт.

13

973525C2

PIN

connecting

1шт.

14

933128R1

SNAP RING,M25, Ext

RING, snap

2шт.

15

973526C5

ARM

inner

1шт.

16

973527C3

SHAFT

1шт.

17

973528C4

BUSHING

2шт.

18

NOT USED

1шт.

19

1004576C1

SCREW

2шт.

20

1014373C1

O-RING

2шт.

21

979823C1

FITTING

2шт.

22

973509C5

ARM

lifting LH

1шт.

23

973510C4

ARM

lifting RH

1шт.

24

973511C2

LARGE PLATE

PLATE

2шт.

25

1014934C1

BOLT

2шт.

26

1002864C1

COVER

1шт.

27

973988C1

O-RING

1шт.

28

1012989C1

BOLT

4шт.

29

NOT USED

1шт.

30

444601

DRAIN PLUG,Sq Hd, 1"-11 1/2 NPTF

PLUG, 1 11-1/2 pln sq/hd auto pipe, or

1шт.

30

1434046R1

PLUG

plastic

1шт.

31

897218C1

BREATHER

1шт.

32

NOT USED

1шт.

33

973515C2

GASKET

1шт.

34

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

M10 x 25 class 8.8

8шт.

35

NOT USED

1шт.

36

973516C1

AXLE PIN

PIN, lifting

2шт.

37

WASHER, M16 lock, purchase locally

2шт.

38

1014946C1

NUT

2шт.

39

84182C1

PIN

2шт.

40

1014374C1

O-RING

2шт.

41

30021R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

Gasoline engine tractors Hex, M10 x 30, 10.9, Full Thd

2шт.

41

30020R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

M10 x 25 class 8.8, diesel engine tractors

2шт.

42

989464C1

WASHER

M10 x M22 x M3.2, gasoline engine tractors

2шт.
