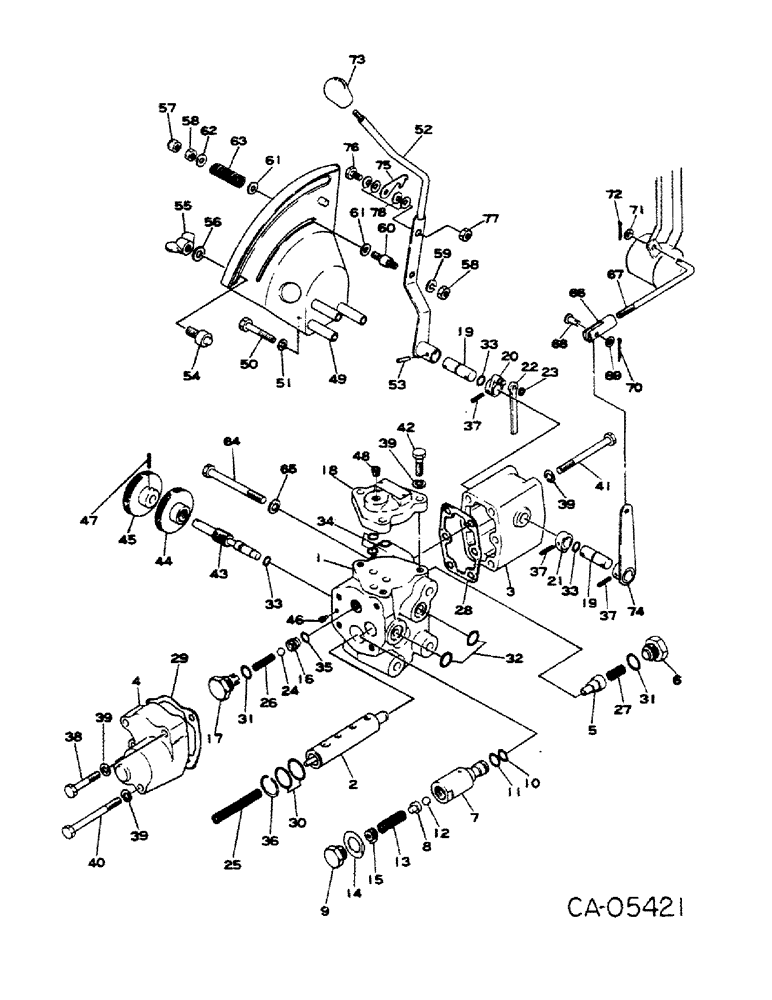

Запчасти Case IH 284 (10-02) - HYDRAULICS, HYDRAULIC CONTROL VALVE (07) - HYDRAULICS

973489C2

VALVE

CONTROL VALVE ASSY, composed of reference numbers 1 - 48, gasoline tractors w/serial no. 013454 and below, 2 wheel drive diesel tractors with serial no. 003096 and below, 4 wheel drive diesel tractors with serial no. 003130 and below

1шт.

1434102R91

VALVE

CONTROL VALVE ASSY, composed of ref nos. 1 - 48, gasoline tractors w/serial no. 013455 and above, 2 wheel drive diesel tractors with serial no. 003097 and above, 4 wheel drive diesel tractors with serial no. 003131 and above

1шт.

1

979057C1

BODY

1шт.

2

979058C1

VALVE

RAPPING ASSY

1шт.

3

979059C1

CAP

1шт.

4

979060C1

CAP

1шт.

5

979061C1

VALVE

unloader

1шт.

6

979062C1

PLUG

1шт.

979063C1

VALVE

RELIEF VALVE ASSY, composed of

1шт.

7

HOUSING, relief (NSS)

1шт.

8

SUPPORT, spring (NSS)

1шт.

9

PLUG (NSS)

1шт.

10

979092C1

O-RING

1шт.

11

979088C1

O-RING

1шт.

12

BALL (NSS)

1шт.

13

SPRING (NSS)

1шт.

14

PLATE, lock (NSS)

1шт.

15

SHIM

1шт.

16

979073C1

SEAT

SEAL

1шт.

17

979074C1

PLUG

1шт.

18

979075C1

COVER

1шт.

19

979076C1

SHAFT

2шт.

20

979077C1

ARM

1шт.

21

979078C1

ARM

1шт.

22

979079C1

LINK

1шт.

23

979080C1

RING

snap

1шт.

24

979081C1

BALL

1шт.

25

979082C1

SPRING

return

1шт.

26

979083C1

SPRING

1шт.

27

979084C1

SPRING

1шт.

28

979085C1

GASKET

1шт.

29

979086C1

GASKET

1шт.

30

979087C1

O-RING

2шт.

31

979088C1

O-RING

2шт.

32

979089C1

O-RING

2шт.

33

979090C1

O-RING

3шт.

34

1062275C1

O-RING

4шт.

35

979092C1

O-RING

1шт.

36

979093C1

RING

1шт.

37

979094C1

PIN

spring

4шт.

38

979095C1

BOLT

3шт.

39

979096C1

WASHER

spring

13шт.

40

979097C1

BOLT

1шт.

41

979098C1

BOLT

6шт.

42

979099C1

BOLT

3шт.

43

979100C1

ADJUSTER

1шт.

44

979101C1

ADJUSTER

LOCK, handle

1шт.

45

979102C1

HANDLE

1шт.

46

979103C1

SCREW

1шт.

47

979104C1

PIN

spring

1шт.

48

979105C1

PLUG

1шт.

49

973491C3

LEVER

guide

1шт.

984464C1

PIPE

3шт.

50

1014369C1

BOLT

3шт.

51

897948C1

WASHER

spring

3шт.

52

973494C5

LEVER

1шт.

53

1019440C1

PIN, ROLL

1шт.

54

973500C1

AXLE PIN

PIN, guide

1шт.

55

1013042C1

NUT

wing

1шт.

56

1004511C1

WASHER

M10 x M22 x 1.6m

1шт.

57

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

58

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

59

978084C1

WASHER

spring

1шт.

60

973506C2

SPACER

1шт.

61

973530C2

WASHER

2шт.

62

978085C1

WASHER

M6 x M11.5 x M0.8

1шт.

63

1004601C1

SPRING

coil

1шт.

64

1014919C1

BOLT

3шт.

65

897948C1

WASHER

spring

3шт.

66

973532C1

YOKE

used w/valve assy, 973489C2

1шт.

66

979839C1

YOKE

used w/valve assy, 1434102R91

1шт.

67

973533C1

ROD

1шт.

68

1014985C1

PIN

used w/valve assy, 973489C2

1шт.

68

1062601C1

PIN

used w/valve assy, 1434102R91

1шт.

69

WASHER, used w/valve assy, 973489C2 (NSS)

1шт.

69

978085C1

WASHER

used w/valve assy, 1434102R91

1шт.

70

PIN, 2 x 12mm pln cot, purchase locally, used w/valve assy 973489C2

1шт.

70

1064813C1

PIN

1.6 x 10mm pln cot., used w/valve assy, 1434102R91

1шт.

71

978085C1

WASHER

replaces 897179C1

1шт.

72

1064813C1

PIN

1.6 x 10mm pln cot.

1шт.

73

1064560C1

KNOB

replaces 973707C1

1шт.

74

979432C1

LEVER

feed control, used w/valve assy, 973489C2

1шт.

74

1434101R1

LEVER

feed control, used w/valve asssy, 1434102R91

1шт.

75

1014701C2

HOOK

lever lock

1шт.

76

978082C1

BOLT

M6 x 20 class 8.8

1шт.

77

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

78

1014706C1

WASHER

4шт.
