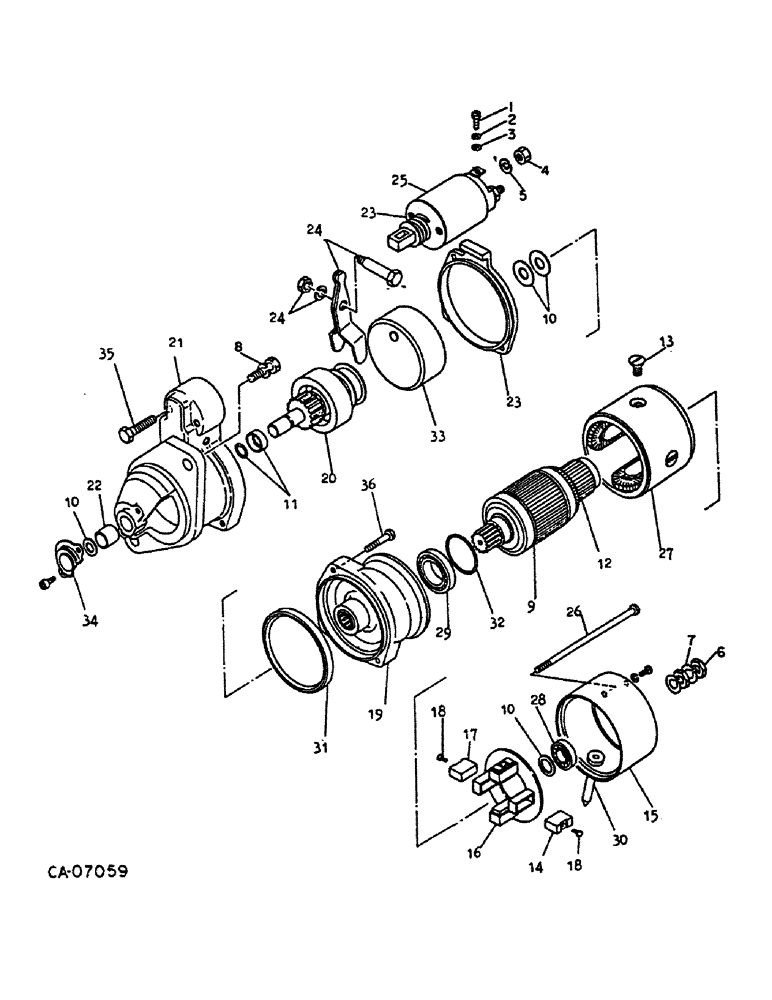

Запчасти Case IH 284 (08-20) - ELECTRICAL, CRANKING MOTOR, DIESEL ENGINE TRACTORS (06) - ELECTRICAL

1058326C92

MOTOR HOUSING

MOTOR ASSY, cranking, composed of ref no. 9 - 36

1шт.

1

1058384C1

SCREW

M4 x 10mm (S-terminal)

1шт.

2

977788C1

WASHER

M4 lock

1шт.

3

1014961C1

WASHER

1шт.

4

1058386C1

NUT

M8

1шт.

5

1058388C1

WASHER

M8 lock

1шт.

6

1058387C1

NUT

M10

2шт.

7

1058389C1

WASHER

M10 lock

2шт.

8

1058379C1

BOLT

WITH WASHER, M10 x 30mm

2шт.

9

1058420C91

ARMATURE

ASSY, includes ref no. 28 & 29

1шт.

10

1058421C1

KIT

thrust washer

1шт.

11

494023C1

STOP

PER SET, pinion

1шт.

12

1058423C91

COIL

ASSY, field, composed of

1шт.

12

COMMUTATOR (NSS)

1шт.

13

SCREW (NSS)

4шт.

14

1058424C1

BRUSH, COMMUTATOR

BRUSH

2шт.

15

1058425C91

COVER

ASSY, rear

1шт.

16

1058426C91

HOLDER

ASSY, brush, composed of

1шт.

16

BRUSH HOLDER (NSS)

1шт.

17

1058427C1

BRUSH, COMMUTATOR

BRUSH

2шт.

18

1058428C1

SPRING

brush

4шт.

19

1058429C91

HOUSING

METAL, bearing, includes ref no. 31 & 32

1шт.

20

1058430C2

GEAR WHEEL

PINION ASSY

1шт.

shaft does not come with ref. 20. Must order ref 33 to get shaft.

1шт.

21

1058431C92

CASE

ASSY, gear, composed of

1шт.

21

CASE (NSS)

1шт.

22

494035C1

SLEEVE

bearing

1шт.

23

1058433C1

COVER

SET, dust, composed of ref. no. 23 & 34

1шт.

23

COVER (NSS)

1шт.

24

494036C1

LEVER

SET, shift

1шт.

25

493664C1

SOLENOID

2шт.

26

1058436C1

BOLT

through

2шт.

27

YOKE (NSS)

1шт.

28

1058437C91

BALL BEARING

ball

1шт.

29

1058438C91

BEARING

ball

1шт.

30

1058439C1

PIPE

drain

1шт.

31

1058440C1

SEAL

oil

1шт.

32

1058441C1

RING

O-RING

1шт.

33

1058442C1

SHAFT

ASSY, gear

1шт.

34

COVER (NSS)

1шт.

35

1058432C1

BOLT

2шт.

36

1058422C1

BOLT

2шт.
