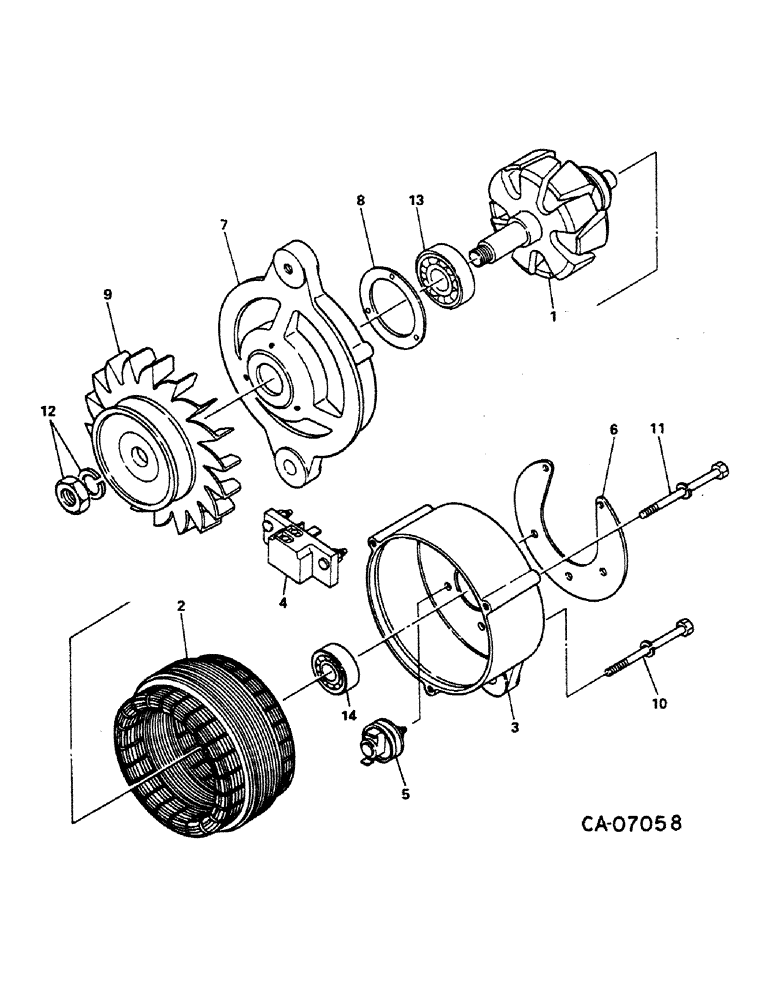

Запчасти Case IH 284 (08-16) - ELECTRICAL, ALTERNATOR-GENERATOR, DIESEL ENGINE TRACTORS (06) - ELECTRICAL

1058309C91

ALTERNATOR

GENERATOR ASSY, order 1430430R91

1шт.

1

1058311C91

ROTOR

ASSY

1шт.

2

1058310C1

STATOR

ASSY

1шт.

3

1058316C91

COVER

ASSY, composed of

1шт.

4

1438788R1

BRUSH, COMMUTATOR

BRUSH ASSY, replaces 1058319C1

1шт.

5

1058320C1

RECTIFIER

DIODE ASSY

1шт.

6

1058325C1

COVER

1шт.

7

1058312C91

COVER

ASSY, front, composed of ref no. 8 & 13

1шт.

8

1058315C1

RETAINER

bearing

1шт.

9

1058321C1

PULLEY

ASSY

1шт.

10

1058317C1

BOLT

thru

1шт.

11

1058318C1

BOLT

thru

2шт.

12

1058322C1

NUT

ASSY, pulley

1шт.

13

1058313C91

BALL BEARING

ball

1шт.

14

1058314C91

BALL BEARING

ball

1шт.
