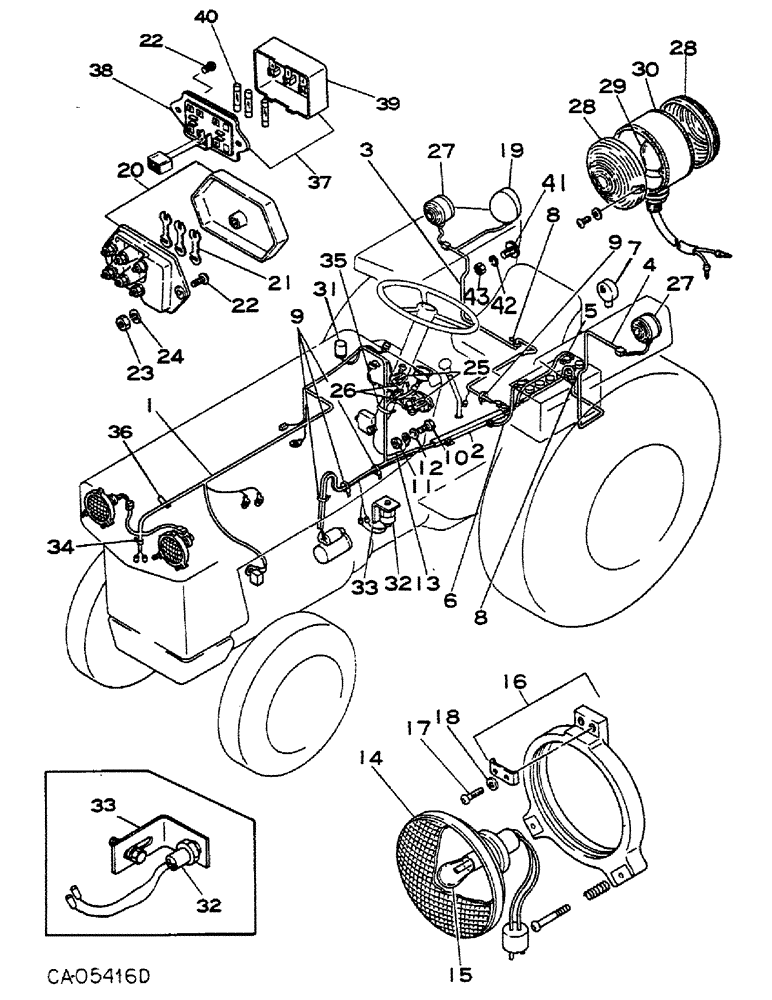

Запчасти Case IH 284 (08-06) - ELECTRICAL, STARTING AND LIGHTING, GASOLINE ENGINE TRACTORS (06) - ELECTRICAL

1

1002770C15

HARNESS

main, serial no. 012924 and below

1шт.

1

1435748R1

HARNESS

main, replaces 1062894C2, serial no. 012925 and above

1шт.

1060769C1

SHIELD

TUBE

1шт.

1432808R1

COVER

1шт.

2

1002841C1

SHIELD

COVER, harness

1шт.

3

1002771C2

HARNESS

fender RH

1шт.

4

1002772C2

HARNESS

fender LH

1шт.

5

1014900C11

CABLE PULLING GRIP

CABLE, battery starter (+)

1шт.

6

1014899C11

CABLE

battery earth (-)

1шт.

7

1004042C91

LIGHT

tail, composed of

1шт.

1003993C11

LIGHT

LENS

1шт.

1003994C1

LAMP

BULB

1шт.

1003996C1

NUT

1шт.

1003997C1

WASHER

1шт.

25552R1

WASHER,.344" x 1" x .098", HDN

.344 x 1.000 x .098 PHC hdn

1шт.

8

263717R91

CLIP

2шт.

9

976196C1

STRIP

STRAP

4шт.

10

1004163C1

BOLT

fuel tank earth harness (used w/tank 1002827C3)

1шт.

11

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

(Used w/tank 1002827C3) M6, Cl 10

1шт.

12

978084C1

WASHER

M6 lock (used w/tank 1002827C3)

1шт.

13

1002851C1

CABLE

HARNESS, fuel earth (used w/tank 1002827C3)

1шт.

13

1060695C1

CABLE

HARNESS, fuel earth (used w/tank 1060693C1)

1шт.

14

984543C92

LIGHT

ASSY, head

2шт.

15

1004007C1

BULB

45 W/45W, part of light assy, 984543C92

2шт.

16

974234C1

HOUSING

ASSY (NSS) (Replaces DASHPART)

2шт.

17

1014936C1

SCREW

4шт.

18

977788C1

WASHER

M4 lock

1шт.

19

973043C94

STRIPPER PACKAGE

LIGHT, plow, composed of

1шт.

974263C2

LENS

1шт.

974264C2

LAMP BASE

BULB (30W)

1шт.

974262C3

HOUSING

1шт.

974265C2

BRACKET

1шт.

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

1шт.

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

1шт.

897948C1

WASHER

M8

1шт.

25552R1

WASHER,.344" x 1" x .098", HDN

.344 x 1.000 x .098 PHC hdn

1шт.

20

973775C1

FUSE CARTRIDGE

FUSE BOX, serial no. 012924 and below

1шт.

21

973776C1

FUSE CARTRIDGE

FUSE 10A, serial no. 012924 and below

1шт.

21

974594C1

FUSE CARTRIDGE

FUSE 5A, serial no. 012924 and below

1шт.

21

974595C1

FUSE CARTRIDGE

FUSE 15A, serial no. 012924 and below

1шт.

22

1014935C1

SCREW

2шт.

23

978170C1

NUT

M5

2шт.

24

978125C1

WASHER

M5 lock

2шт.

25

1002963C1

DIODE

warning light

2шт.

26

1002962C1

CABLE

HARNESS, diode, serial no. 012415 and below

1шт.

27

1014560C91

LIGHT

ASSY, flasher, replaces 1014560C91, composed of (Replaces 1433324R1)

2шт.

28

1014561C1

LENS

4шт.

29

1014562C1

BULB

2шт.

30

HOUSING (NSS)

2шт.

31

974446C92

INDICATOR LIGHT

UNIT, flasher

1шт.

974448C1

SUPPORT

flasher unit

1шт.

32

1014727C92

SWITCH

ASSY, safety starting

1шт.

33

1060414C1

BRACKET

switch (replaces 974692C2)

1шт.

980496C1

BOLT,M8

1шт.

25552R1

WASHER,.344" x 1" x .098", HDN

.344 x 1.000 x .098 PHC hdn

1шт.

897948C1

WASHER

spring

1шт.

34

263513R91

CLIP

1шт.

978084C1

WASHER

M6 lock

1шт.

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

M6 x 12 class 8.8

1шт.

35

976197C1

STRAP

1шт.

36

1060769C1

SHIELD

TUBE, harness guard

12шт.

37

1064550C1

BOX, FUSE

FUSE BOX

1шт.

38

1064551C1

BODY

fuse box

1шт.

39

1064552C1

COVER

fuse box

1шт.

40

9426334

FUSE,10 Amp, Type 3AG

3AG 10 amperes, replaces 1061104C1

1шт.

973777C92

KIT

fuse, serial no. 012924 and below

1шт.

41

983876C1

REFLECTOR

2шт.

42

978125C1

WASHER

M5 lock

2шт.

43

978170C1

NUT

M5

2шт.

1002863C1

REGULATOR

voltage, for gas tractor

1шт.
