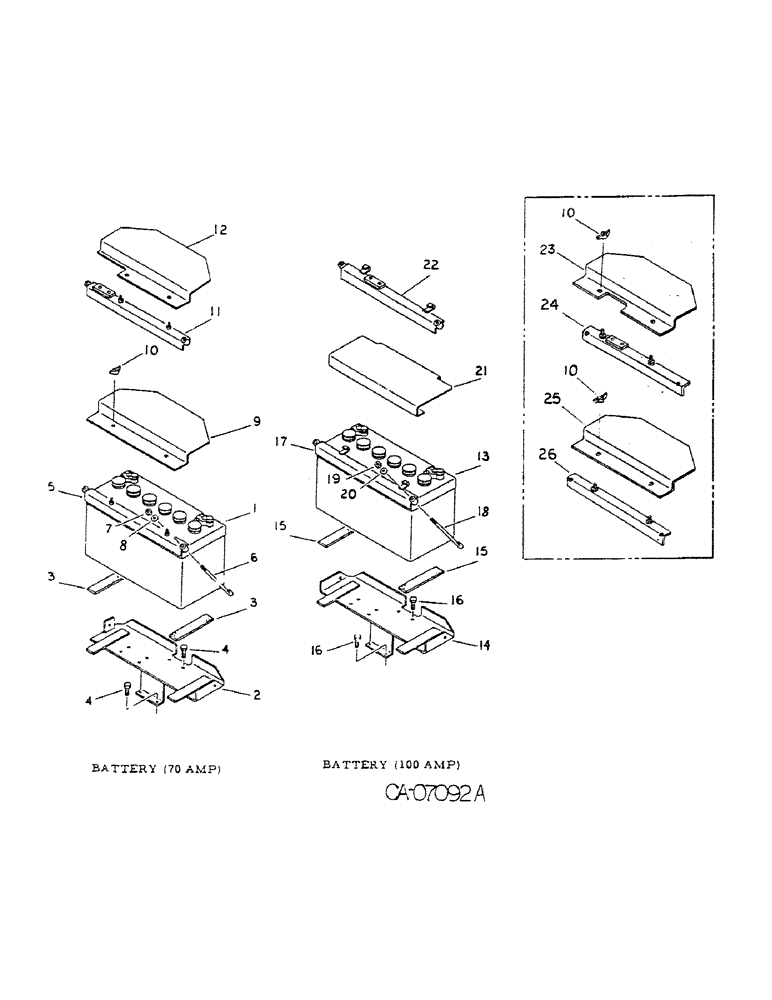

Запчасти Case IH 284 (08-03) - ELECTRICAL, BATTERY AND BATTERY TRAY, DIESEL ENGINE TRACTORS (06) - ELECTRICAL

1

IHMF274

DRY BATTERY

70 amp

1шт.

2

1064438C1

TRAY

battery

1шт.

3

1061256C2

CUSHION

2шт.

4

980496C1

BOLT,M8

BOLT, M8 x 16mm

4шт.

5

1433550R1

HOLDER

battery, replaces 1062171C1

1шт.

6

1004830C2

BOLT

hanger

2шт.

7

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

8

25707R1

WASHER,.281" x 5/8" x .075", HDN

.281 x .625 x .072 hdn

2шт.

9

1062197C2

COVER

battery

1шт.

10

1060519C1

NUT

M6

1шт.

11

1433549R1

HOLDER

replaces 1057849C1 tractors w/PTO lever lock

1шт.

12

1057491C2

COVER

tractors w/PTO lever lock

1шт.

13

IHCM30H

DRY BATTERY

100 amp

1шт.

14

1061254C2

TRAY

1шт.

15

1061256C2

CUSHION

2шт.

16

980496C1

BOLT,M8

BOLT, M8 x 16mm

4шт.

17

1061251C1

HOLDER

serial no. J002674 and below

1шт.

18

1004830C2

BOLT

hanger

2шт.

19

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

20

25707R1

WASHER,.281" x 5/8" x .075", HDN

.281 x .625 x .072 hdn

2шт.

21

1061689C2

COVER, battery, serial no. J002674 and below

1шт.

22

1057492C1

HOLDER

battery, tractors w/PTO lever lock, serial no. J002674 & below

1шт.

23

1432181R1

COVER

battery, tractors w/PTO lever lock, serial no. J002675 & above

1шт.

24

1433548R1

HOLDER

battery, tractors w/PTO lever lock, serial no. J002675 & above

1шт.

25

1432180R1

COVER

battery, serial no. J002675 and above

1шт.

26

1433546R1

HOLDER

battery, serial no. J002675 and above

1шт.
