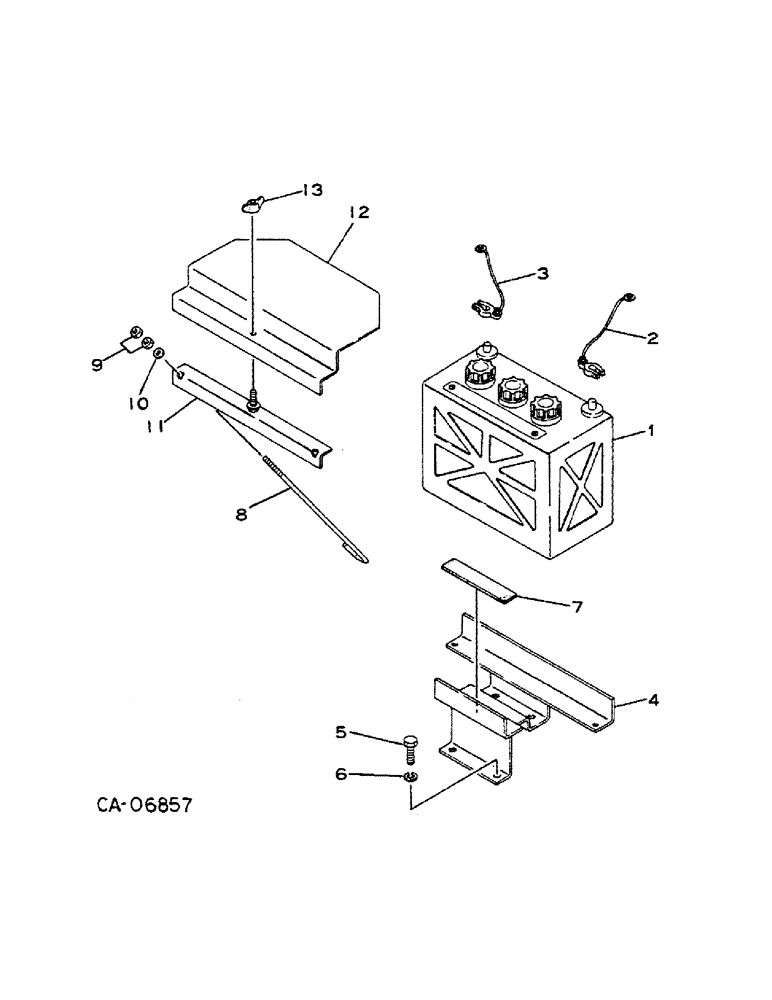

Запчасти Case IH 284 (08-02) - ELECTRICAL, BATTERY AND BATTERY TRAY, GASOLINE ENGINE TRACTORS, SERIAL NO. 011293 AND ABOVE (06) - ELECTRICAL

1

IHPR22NF

DRY BATTERY

12 volt

1шт.

2

1014900C11

CABLE PULLING GRIP

CABLE ASSY (+), composed of

1шт.

1014901C1

BOLT

1шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

1014902C1

CAP

1шт.

1002846C1

CAP

1шт.

3

1014899C11

CABLE

ASSY (-), composed of

1шт.

CABLE (NSS)

1шт.

1014901C1

BOLT

1шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

4

1004828C3

TRAY

battery

1шт.

5

980496C1

BOLT,M8

BOLT, 16mm x 20

4шт.

6

NOT USED

1шт.

7

1060495C1

CUSHION

serial no. 012253 and below

1шт.

8

1004830C2

BOLT

hanger 245mm long

2шт.

9

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

978084C1

WASHER

M6 lock

2шт.

10

1004460C1

WASHER

1шт.

11

1004831C1

ANGLE

HOLDER

1шт.

12

1004829C1

COVER

1шт.

13

1060519C1

NUT

wing

1шт.
