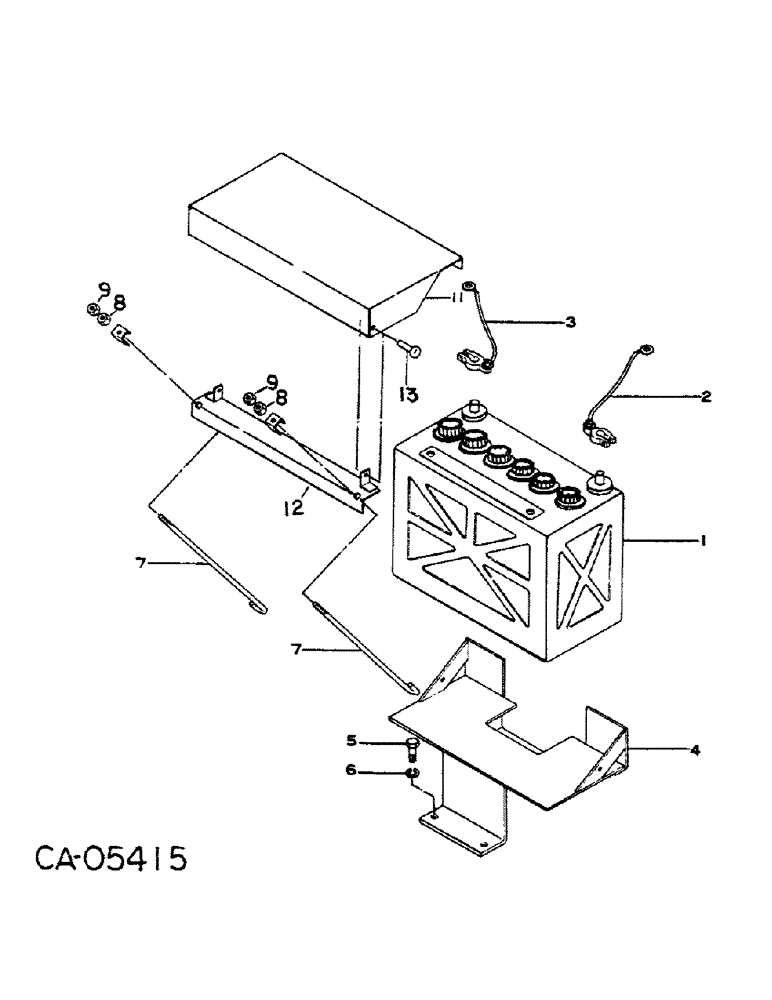

Запчасти Case IH 284 (08-01) - ELECTRICAL, BATTERY AND BATTERY TRAY, GASOLINE ENGINE TRACTORS, SERIAL NO. 011292 AND BELOW (06) - ELECTRICAL

1

IHPR22NF

DRY BATTERY

12 volt (replaces 1014903C1)

1шт.

2

1014900C11

CABLE PULLING GRIP

CABLE ASSY (+), composed of

1шт.

1014901C1

BOLT

1шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

1014902C1

CAP

1шт.

1002846C1

CAP

1шт.

3

1014899C11

CABLE

ASSY (-), composed of

1шт.

CABLE (NSS)

1шт.

1014901C1

BOLT

1шт.

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

4

1002824C3

TRAY, battery

1шт.

5

980496C1

BOLT,M8

BOLT, 16mm x 20

3шт.

6

NOT USED

1шт.

7

1004830C2

BOLT

hanger, replaces 1002826C1

2шт.

8

1004460C1

WASHER

battery hook (replaces 1002768C1)

2шт.

9

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

978084C1

WASHER

M6 lock

2шт.

10

NOT USED

1шт.

11

1002829C1

COVER, replaces 1002825C1

1шт.

12

1004831C1

ANGLE

HOLDER, replaces 1002766C1

1шт.

13

1004005C1

RIVET

1шт.
