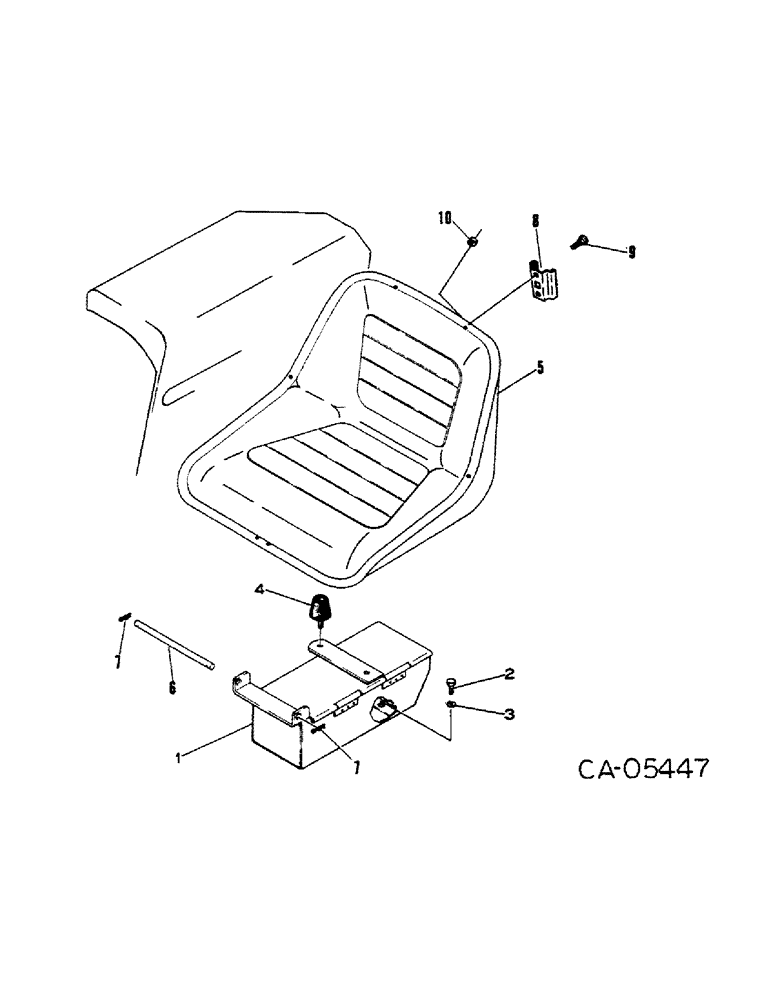

Запчасти Case IH 284 (13-10) - SUPERSTRUCTURE, SEAT AND TOOL BOX (05) - SUPERSTRUCTURE

1

1432472R1

BOX

tool, replaces tool boxes 974124C3 and 1061260C3 by also ordering two cushion, 1060820C1

1шт.

2

1438464R1

BOLT (SPREADER)

BOLT, M10 x 20 class 8.8

4шт.

3

27326R1

WASHER,.344" x 11/16" x .089", HDN

.344 x .688 x .089 PHC hdn

4шт.

4

974572C1

CUSHION

for use with tool boxes, 974124C3 and 1061260C3

2шт.

4

1060820C1

SHOCK ABSORBER

CUSHION, for use with tool box, 1432472R1

2шт.

5

1062456C1

SEAT

ASSY, replaces 1002759C91

1шт.

6

1061563C1

PIN

1шт.

7

1004155C1

PIN

snap, replaces 979817C1

1шт.

8

398976R1

BRACKET

SOCKET, SMV

1шт.

9

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd crg

4шт.

10

25520R1

NUT,5/16"-18, G8

5/16 PHC type 8

2шт.

1062769C91

BELT

SEAT BELT ASSY

1шт.
