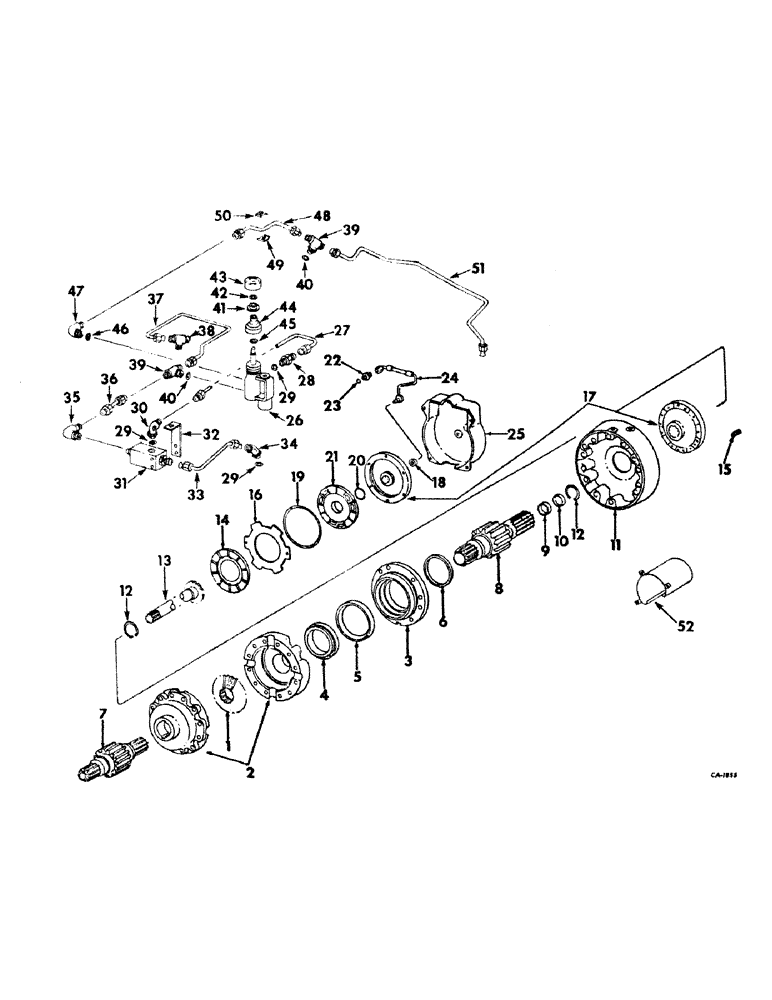

Запчасти Case IH 2826 (07-29) - DRIVE TRAIN, DIFFERENTIAL LOCK, HYDROSTATIC DRIVE TRACTORS (04) - Drive Train

1

529022R1

BEVEL GEAR

GEAR, differential bevel RH, 28T

1шт.

2

534524R91

CASE

ASSY, differential, composed of (12) bolt 55972DA, (1) case 406020R1 (NSS), (1) case 529024R1 (NSS), (1) gear 406021R1, (12) nut 381368R1

1шт.

3

391685R1

RETAINER, differential brg.

1шт.

4

ST2104

BEARING ASSY

RH roller cone

1шт.

5

ST986

TAPERED BEARING,133.35mm OD x 22.28mm W

BEARING, RH roller cup

1шт.

6

391689R91

OIL SEAL

SEAL, differential brg retainer RH

1шт.

7

529025R1

SHAFT

bull pinion and brake LH

1шт.

8

529026R1

SHAFT

bull pinion and brake RH

1шт.

9

283375R91

NEEDLE BEARING

ASSY, needle

1шт.

10

529027R91

OIL SEAL

oil

1шт.

11

529028R1

HOUSING, RH brake

1шт.

24959R1

SCREW W/NYLON PELLET INSERT, 5/8-11 x 5-1/4 hex-hd. cap

4шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 3-3/4 hex-hd. cap

2шт.

12

300026R1

RING

retaining

2шт.

13

529030R1

SHAFT

inner

1шт.

14

529031R1

DISC

ASSY, differential lock friction

1шт.

15

529032R1

SPRING

piston return

8шт.

16

529033R1

PLATE ASSY.

PLATE, pressure

1шт.

17

529401R11

HOUSING

ASSY, piston, composed of (1) housing 529029R1 (NSS), (1) housing 529401R1 (NSS), (2) pin 20027R1, (1) plug 9409954

1шт.

20027R1

PIN,5/16" x 1 1/4"

5/16 x 1-1/4 dowel

2шт.

9409954

PLUG,Hex Soc, 1/16"-27

1/16-27 auto. soc-hd. pipe

1шт.

138202

SCREW,1/4" - 20 x 1"

1/4-20 x 1 hex-soc-hd. cap

6шт.

18

529404R91

SEAL

inlet shaft oil

1шт.

19

3046994R1

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

5-5/8 x 5-7/8 x 1/8, piston outer

1шт.

20

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8, piston inner

1шт.

21

529034R1

PISTON ASSY.

PISTON, differential lock brake

1шт.

22

9410199

HYD CONNECTOR,3/8"-24, 37 Degree x 3/8"-24

UNION, 3/8-24 37 deg. hyd. flared tube short swivel

1шт.

23

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

24

529402R2

HYD TUBE

SHAFT ASSY, oil inlet

1шт.

25

529036R11

COVER ASSY, differential lock

1шт.

23112R1

PIN, 1/8 x 1/2 dowel 1/8" x 1/2"

1шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8 hex-hd. cap

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

26

529003R91

LOCK VALVE

VALVE ASSY, differential lock, for components see list of parts under details of differential lock valve

1шт.

187491

BOLT,Hex, 3/8" - 16 x 5 1/2", Gr 5

SCREW, 3/8-16 x 5-1/2 hex-hd. cap

1шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga.

1шт.

27

534527R1

TUBE ASSY, reducing valve supply

1шт.

28

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

UNION, 7/16-20 37 deg. hyd. flared tube short swivel

1шт.

29

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

3/8 x 1/2 x 1/16

2шт.

30

9410974

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

7/16-20 37 deg. C-Z hyd. flared tube adj. str. thd. 90 deg.

1шт.

31

534750R92

VALVE

ASSY, pressure reducing, for components see list of parts under details of pressure reducing valve

1шт.

179814

SPACER

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

32

534528R1

BRACKET, pressure reducing valve

1шт.

14995R1

BOLT

3/8-16 x 3/4 sq-nk. crg.

1шт.

102635

NUT,3/8"-16, G5

1шт.

33

534529R1

TUBE

ASSY, reducing valve to differential lock

1шт.

34

9411102

ELBOW,45 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

7/16-20 37 deg. C-Z hyd. flared tube adj. str. thd. 45 deg.

1шт.

35

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

9/16-18 37 deg. C-Z hyd. flared tube 90 deg. swivel

1шт.

36

534530R1

TUBE ASSY, pressure

1шт.

37

529040R2

TUBE ASSY, differential lock dump

1шт.

534250R1

HOSE

tube bumper

3шт.

38

529041R1

TEE

differential lock dump tube

1шт.

39

9411117

TEE,9/16"-18, 37 Degree x 9/16"-18, O-Ring Br

9/16-18 37 deg. C-Z hyd. flared tube adj. str. thd.

2шт.

40

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

41

529042R1

SPACER

PEDAL

1шт.

42

384561R1

SNAP RING,#40, Ext

RING, snap, , pedal #40, Ext

1шт.

43

529043R1

PAD

pedal

1шт.

44

393071R1

BOOT

pedal

1шт.

45

529044R1

LOCK WASHER

pedal boot

1шт.

46

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

47

534526R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-20, O-Ring

9/16-18 37 deg. C-Z hyd. flared tube adj. str. thd. 90 deg.

1шт.

48

534525R1

TUBE ASSY, differential lock supply

1шт.

49

384891R11

CLAMP

STRIP ASSY, hyd. tube clamp

1шт.

50

384891R1

CLAMP

STRIP, hyd. tube clamp

1шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/4-20 x 7/8 hex-hd. cap

1шт.

51

528163R1

TUBE

ASSY, brake pressure

1шт.

52

391814R11

SHIELD ASSY, bull pinion brg. oil

1шт.

423324

SCREW,Hex L/Wshr Hd, #10-24 x 7/16"

W/EXT TOOTH LOCK WASHER, 10-24 x 7/16 hex-hd. mach

3шт.
