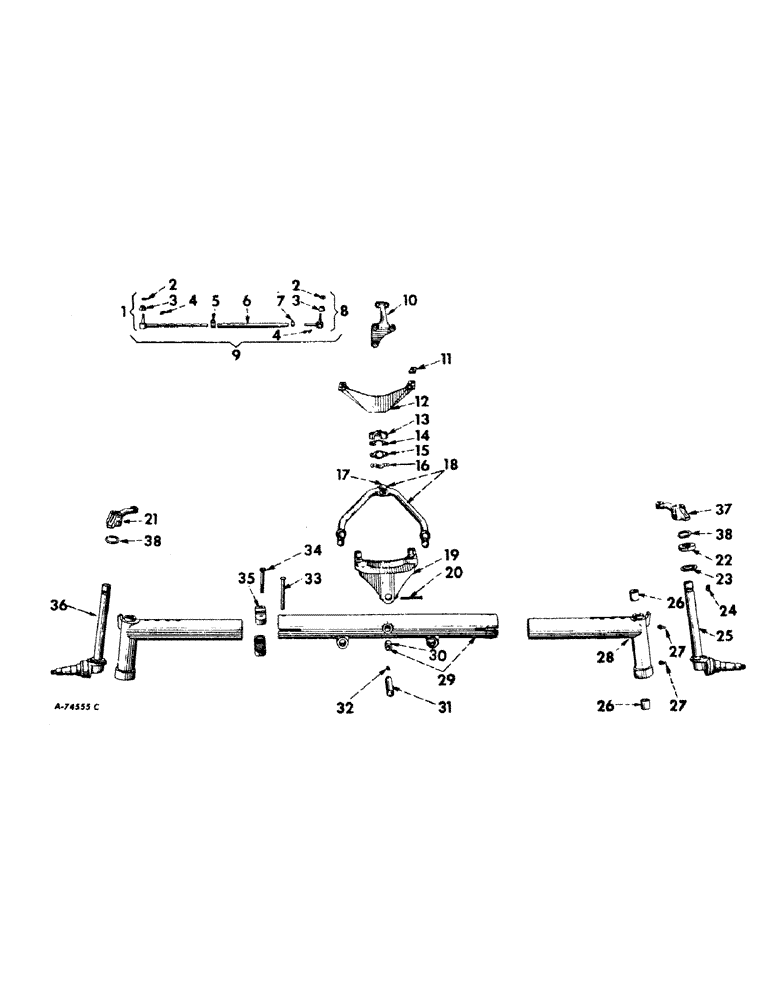

Запчасти Case IH 2826 (14-03) - SUSPENSION, ADJUSTABLE WIDE TREAD FRONT AXLE, STANDARD, FARMALL TRACTORS Suspension

NSS

NOT SOLD SEPARAT

ATTACHMENT, front axle, 370789R92, axles with 56 to 80 in. tread, See Note A

1шт.

NSS

NOT SOLD SEPARAT

ATTACHMENT, front axle, 383922R91, axles with 50 to 74 in. tread, See Note A

1шт.

1

359984R92

ROD

ASSY, tie, welded end, axles with 56 to 80 in. tread

2шт.

1

384441R92

ROD

ASSY, tie, welded end, axles with 50 to 74 in. tread

2шт.

2

358901R1

SLOTTED NUT

tie rod

4шт.

3

387280R2

COVER

dust

4шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

4шт.

5

359986R1

CLAMP

tie rod, adj. end

2шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex

2шт.

181436

BODY,Hex, 1/2" - 20 x 2 1/4", Gr 5

SCREW, 1/2-20 x 2-1/4 hex-hd. cap

2шт.

6

383917R1

TUBE

tie rod, axles with 56 to 80 in. tread

2шт.

6

384439R1

TUBE,0.937" ID, 1.187" OD, 15.312" Length

tie rod, axles with 50 to 74 in. tread

2шт.

7

374062R1

JAM NUT

NUT, jam, axles with 56 to 80 in. tread

2шт.

7

384442R1

JAM NUT

NUT, jam, axles with 50 to 74 in. tread

2шт.

8

384006R92

END

ASSY, tie rod, RH thread, axles with 56 to 80 in. tread

1шт.

8

384440R92

END

ASSY, tie rod, RH thread, axles with 50 to 74 in. tread

1шт.

9

383915R92

ROD

ASSY, tie, axles with 56 to 80 in. tread

2шт.

9

384438R92

ROD

ASSY, tie, axles with 50 to 74 in. tread

2шт.

32-822

COTTER PIN,1/8" x 1 3/8"

PIN, split (Cotter), 1/8" x 1-3/8"

4шт.

10

358970R1

ARM

steering gear

1шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 1-1/2 hex-hd. cap

3шт.

11

51693D

BAR

WASHER, stay rod ball socket support

2шт.

12

370692R3

SUPPORT

stay rod ball socket

1шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex

2шт.

181435

BOLT,Hex, 1/2" - 20 x 2", Gr 5

SCREW, 1/2-20 x 2 hex-hd. cap

2шт.

181429

BOLT,Hex, 1/2" - 20 x 1 1/4", Gr 5

SCREW, 1/2-20 x 1-1/4 hex-hd. cap

2шт.

13

535861R1

FIXING BRACKET

SOCKET, stay rod ball, replaces 389277R1

1шт.

19992R1

BOLT

SCREW, 1/2-13 x 2-1/4 type 8 hex-hd. cap

1шт.

14

60762D

SHIM

stay rod ball socket, or as required

4шт.

15

60763DB

CYLINDER END CAP

CAP, stay rod ball socket

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 hex-hd. cap

2шт.

16

358345R1

PLATE ASSY.

PLATE, stay rod ball socket cap lock

1шт.

17

10546D

BALL

stay rod

1шт.

18

360405R11

ROD

STAY ROD ASSY

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex, jam

2шт.

19

383909R4

BOLSTER

lower

1шт.

271614

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 hex-hd. cap

4шт.

20

21105R1

HEADED PIN,9.53mm OD x 123.83mm L

PIN, 3/8 x 4-7/8 headed

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

21

405460R1

ARM

RH steering knuckle

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex, jam

1шт.

Q326

WASHER

1-13/32 x 2-3/4 x 18 ga.

1шт.

21

405629R1

ARM

RH steering knuckle, used w/adjustable wide tread front axle extension, 114 to 120 in.

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex, steering knuckle stop

1шт.

22

369131R91

THRUST BEARING

steering knuckle pivot thrust

2шт.

23

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle pivot felt

2шт.

24

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

25

401768R92

STEERING KNUCKLE

KNUCKLE W/OIL SEAL, 370254R91 and shield, 48701D, LH steering

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt. hex

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

1шт.

26

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

steering knuckle pivot pin

4шт.

27

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 drive type str. lub

2шт.

28

370689R22

EXTENSION

W/TWO BUSHINGS 358958R2, front axle

2шт.

28

383927R22

EXTENSION W/TWO BUSHINGS 358958R2, front axle, axles with 50 to 74 in. tread

1шт.

29

358976R31

CENTER AXLE

AXLE ASSY, front, axles with 56 to 80 in. tread

1шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.

29

383926R21

AXLE ASSY, front, axles with 50 to 74 in. tread

1шт.

30

48841D

BUSHING,31.03mm ID x 34.62mm OD x 31.75mm L

front axle pivot pin

2шт.

31

358978R2

AXLE PIN,31.29mm OD x 217.49mm L

PIN, front axle pivot

1шт.

32

17049R91

LUBE NIPPLE,67.5 Degree, 1/8"-27 NPT x 1.03" lg, Leakproof

FITTING, 1/8-27 PTF 67-1/2 deg. angle lub

1шт.

33

350557R1

PIN

front axle clamp

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

34

20673R1

BOLT,Hex, 3/4" - 16 x 4 1/4", Gr 8

front axle clamp bolt

4шт.

218197

NUT,3/4"-16, G5

3/4-16 hex

4шт.

35

350556R1

CLAMP

front axle

4шт.

36

401768R92

STEERING KNUCKLE

KNUCKLE W/OIL SEAL, 370254R91 and shield, 48701D, RH steering

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt. hex

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

1шт.

37

405459R1

ARM

LH steering knuckle

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex, jam

1шт.

Q326

WASHER

1-13/32 x 2-3/4 x 8 ga.

1шт.

37

405628R1

ARM

LH steering knuckle, used w/adjustable wide tread front axle extension, 114 to 120 in.

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex, steering knuckle stop

1шт.

38

146008R1

SNAP RING,M41.15 x 2.46mm Thk, Ext

RING, steering knuckle retaining

2шт.

370787R92

PARTS ACCESSORY, front wheel & rim, consists of (2)bearing 618023R91, (12)bolt 51485D, (2)cap 369859R1, (2)fitting 443566, (2)gasket 369860R1, (2)hub assy 391823R11, (2)nut 427645, (6)screw 21533R1, (6)washer 120214, (2)washer 370255R2, (2)wheel 370777R92

1шт.
