Запчасти Case IH 2826 (09-11) - FRAME, THREE POINT HITCH QUICK COUPLER (12) - FRAME

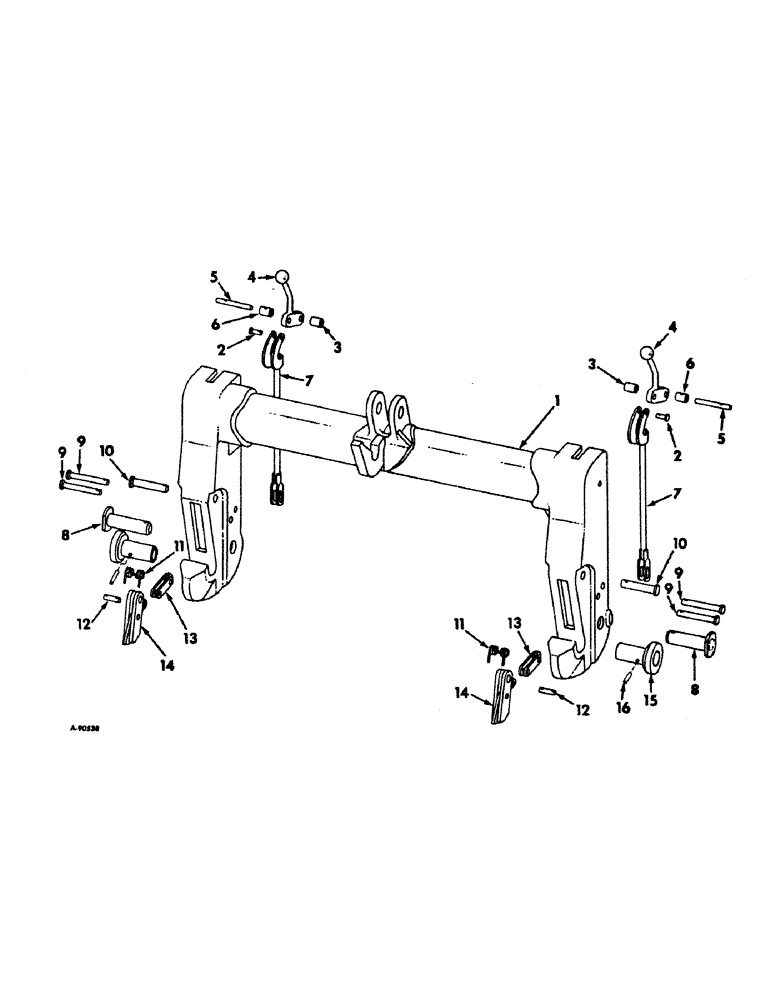

Схема запчастей Case IH 2826 - (09-11) - FRAME, THREE POINT HITCH QUICK COUPLER (12) - FRAME
12
16
15
2
13
14
6
4
5
8
11
10
9
9
12
13
7
3
3
11
10
7
9
4
5
8
14
6
9
2
1

Артикул

Название

Примечание

Количество

401228R91

PARTS ACCESSORY, three point hitch quick coupler

1шт.

401230R91

COUPLING

COUPLER ASSY, quick, consists of ref nos. 1 thru 14

1шт.

1

401235R1

FRAME ASSY, quick coupler

1шт.

2

401245R1

PIN, hitch lever link

2шт.

3

401240R1

SPACER, lever hinge pin

2шт.

4

401236R1

LEVER

hitch

2шт.

5

401238R1

PIN, lever hinge

2шт.

6

401239R1

SPACER, lever hinge pin

2шт.

7

401237R1

ROD ASSY, hitch

2шт.

8

401248R1

PIN

stud

2шт.

9

401215R1

PIN

lower link

4шт.

10

401246R1

PIN

locking latch hinge

2шт.

11

401244R1

SPRING

double torsion

2шт.

12

401247R1

PIN, clevis slot

2шт.

446548

WASHER,0.38" ID x 0.75" OD x 0.05" Thk

3/8 plain

4шт.

648002

KNIFE

1/8" x 3/4"

10шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

13

401243R1

CLEVIS

LINK, hitch lower

2шт.

14

401242R1

SUPPORT

PLATE ASSY, latch

2шт.

15

401232R1

ADAPTER

implement lower hitch pin

2шт.

16

21926R1

PIN,7/16" x 1 3/8", Coiled

7/16" x 1-3/8", coiled

2шт.

1001029R3

DECAL

PRODUCT GRAPHIC, IH

2шт.

Выбрано товаров: 22
