Запчасти Case IH 2826 (09-05[1]) - FRAME, HAMMERSTRAP TRACTORS WITH TWO OR THREE POINT HITCH, TELESCOPING SWINGING DRAWBAR (12) - FRAME

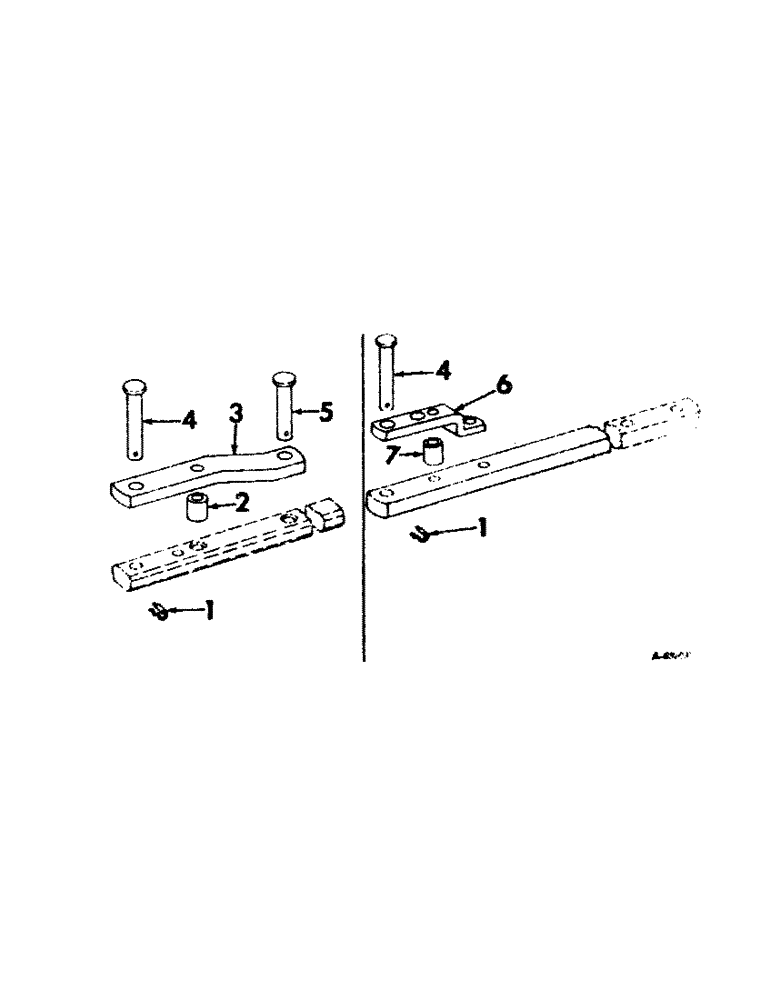

Схема запчастей Case IH 2826 - (09-05[1]) - FRAME, HAMMERSTRAP TRACTORS WITH TWO OR THREE POINT HITCH, TELESCOPING SWINGING DRAWBAR (12) - FRAME
3
4
2
7
1
4
6
1
5

Артикул

Название

Примечание

Количество

389070R92

PARTS ACCESSORY, hammer strap

1шт.

1

520175R11

AXLE PIN

PIN ASSY, quick attachable cot.

1шт.

2

389426R1

SPACER

swinging drawbar strap

1шт.

3

389425R1

STRAP

swinging drawbar

1шт.

220083

NUT,1"-8, G5

1-8 hex

1шт.

18757R1

SCREW, 1-8 x 5-3/4 hex-hd. cap

1шт.

4

383140R1

PIN

swinging drawbar clevis

1шт.

5

389523R1

PIN

drawbar

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.

280232

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

1шт.

102639

NUT,5/8"-11, G5

1шт.

6

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

7

527427R1

SPACER, hammer strap

1шт.

575810R1

WASHER

21/32 x 1-1/2 x .120

2шт.

Выбрано товаров: 14
