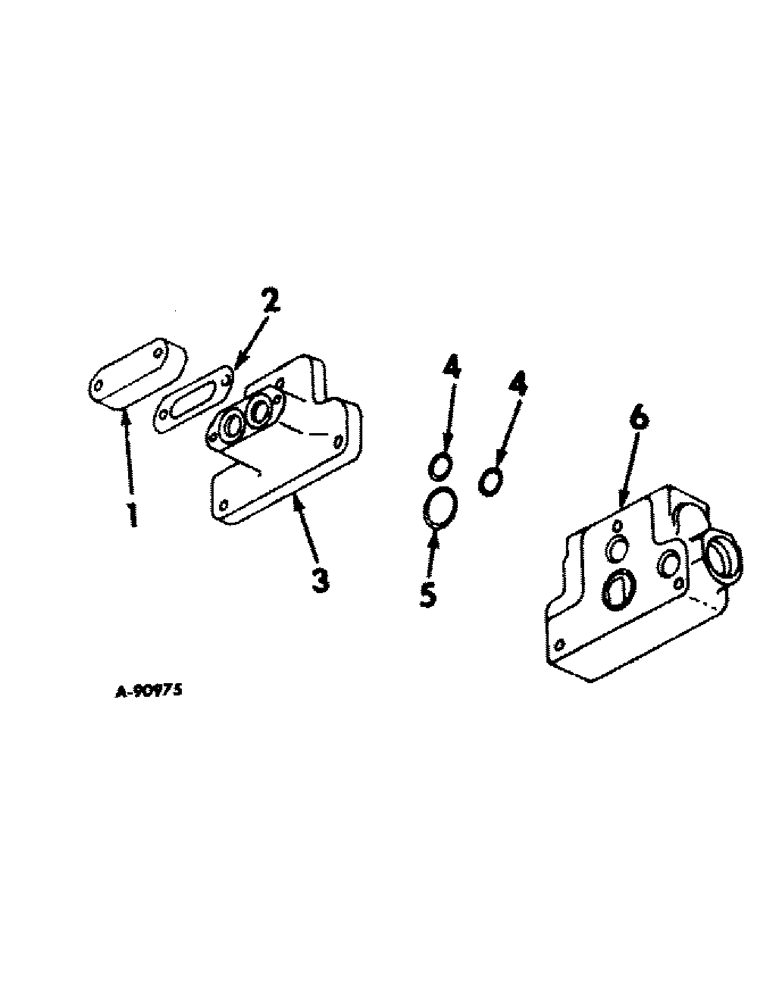

Запчасти Case IH 2826 (10-38) - HYDRAULICS, POWER BEYOND, GEAR DRIVE TRACTORS (07) - HYDRAULICS

398315R91

COVER ASSY

PARTS ACCESSORY, power beyond, for tractors equipped w/double auxiliary hydraulic valve, order control valve, 383267R94 if tractor is not already so equipped

1шт.

1

391675R1

CYLINDER END CAP

CAP, control valve end cover

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 x 1-3/8 hex-hd. cap

2шт.

2

391674R1

GASKET

control valve end cover cap

1шт.

3

398316R1

COVER ASSY

COVER, control valve end

1шт.

20159R1

BOLT,Hex, 3/8" - 16 x 5 1/8", Gr 8

SCREW, 3/8-16 x 5-1/8 hex-hd. cap

3шт.

4

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32

2шт.

5

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16 x 3/32

1шт.

6

NSS

NOT SOLD SEPARAT

VALVE ASSY, hydraulic control, for components, see list of parts under details of hyd control valve

1шт.
