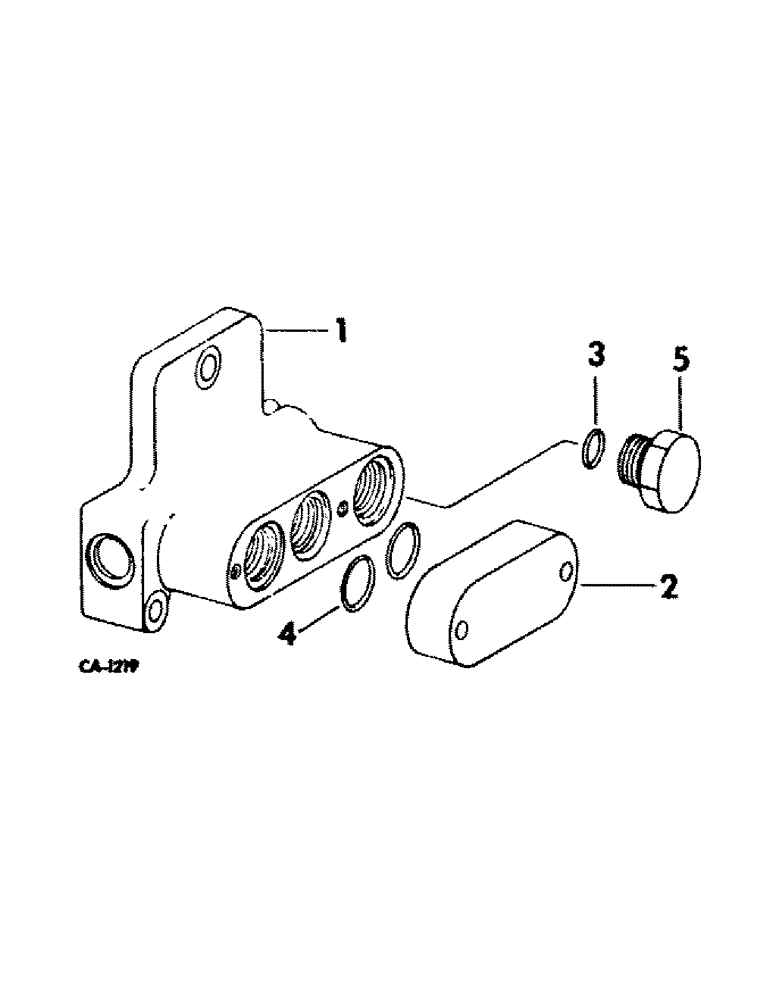

Запчасти Case IH 2826 (10-38[1]) - HYDRAULICS, POWER BEYOND HYDROSTATIC DRIVE TRACTORS (07) - HYDRAULICS

533861R91

STRIPPER PACKAGE

PARTS ACCESSORY, power beyond, for tractors equipped with double auxiliary valves

1шт.

1

533862R1

COVER, control valve end

1шт.

20159R1

BOLT,Hex, 3/8" - 16 x 5 1/8", Gr 8

SCREW, 3/8-16 x 5-1/8 hex-hd. cap

2шт.

381782R1

BOLT,Hex, 3/8" - 16 x 5 7/8", Gr 8

SCREW, 3/8-16 x 5-7/8 hex-hd. cap

1шт.

2

533863R1

CAP, control valve end cover

1шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd. cap

2шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

4

372764R1

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

15/16 x 1-1/8 x 3/32

2шт.

5

9410360

PLUG

7/8-14 str. thd. o-ring boss

1шт.

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32, control valve end cover small

2шт.

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16 x 3/32, control valve end cover large

1шт.
