Запчасти Case IH 2826 (10-36) - HYDRAULICS, DOUBLE ACTING CHECK VALVE (07) - HYDRAULICS

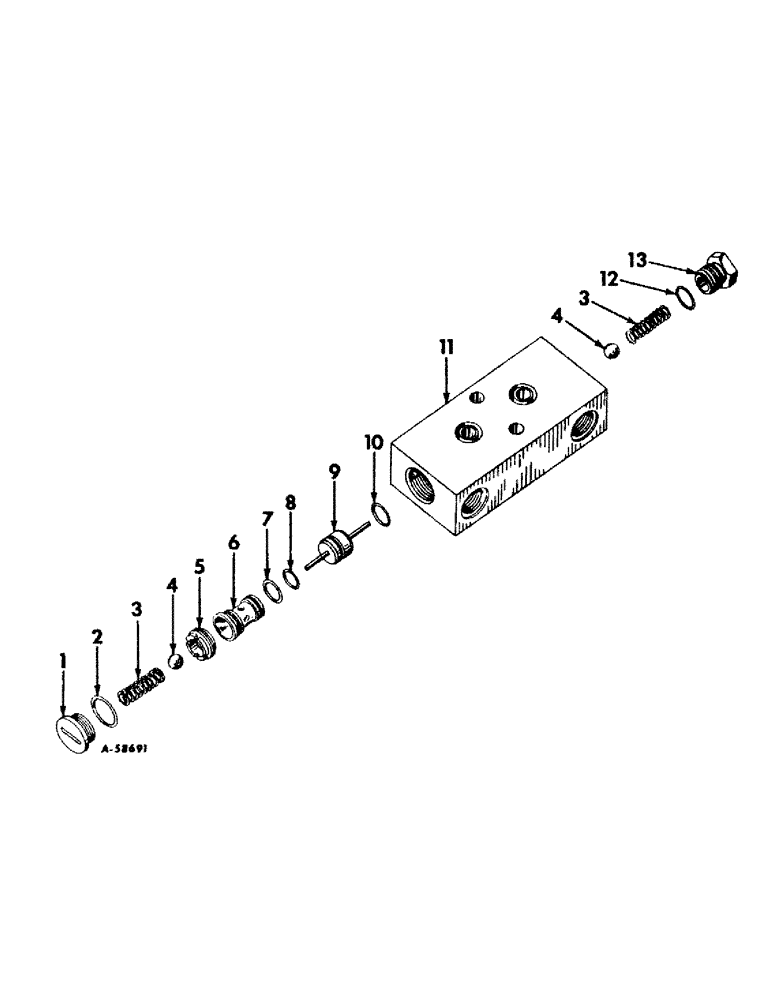

Схема запчастей Case IH 2826 - (10-36) - HYDRAULICS, DOUBLE ACTING CHECK VALVE (07) - HYDRAULICS
13
3
8
1
2
10
4
12
5
3
11
7
9
4
6

Артикул

Название

Примечание

Количество

374083R92

VALVE

ASSY, check

1шт.

1

374088R1

PLUG

check valve

1шт.

2

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

59/64 x 1-1/16 x 7/64, check valve plug

1шт.

3

372649R1

SPRING

check valve

2шт.

4

17016R1

BALL,1/2" Dia

2шт.

5

374172R1

NUT

check valve ball retainer

1шт.

6

374087R21

RETAINER

ASSY, check valve ball

1шт.

7

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk, Ball Retainer, Large

1шт.

8

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

11/16 x 13/16 x 1/16, ball retainer small

1шт.

9

374085R11

PISTON

ASSY, check valve actuator

1шт.

10

606271C1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

5/8 x 13/16 x 3/32, piston

1шт.

11

NSS

NOT SOLD SEPARAT

BLOCK ASSY, check valve, not serviced separately, order check valve, 374083R92

1шт.

12

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, check valve plug

1шт.

13

374089R1

PLUG

check valve

1шт.

Выбрано товаров: 14
