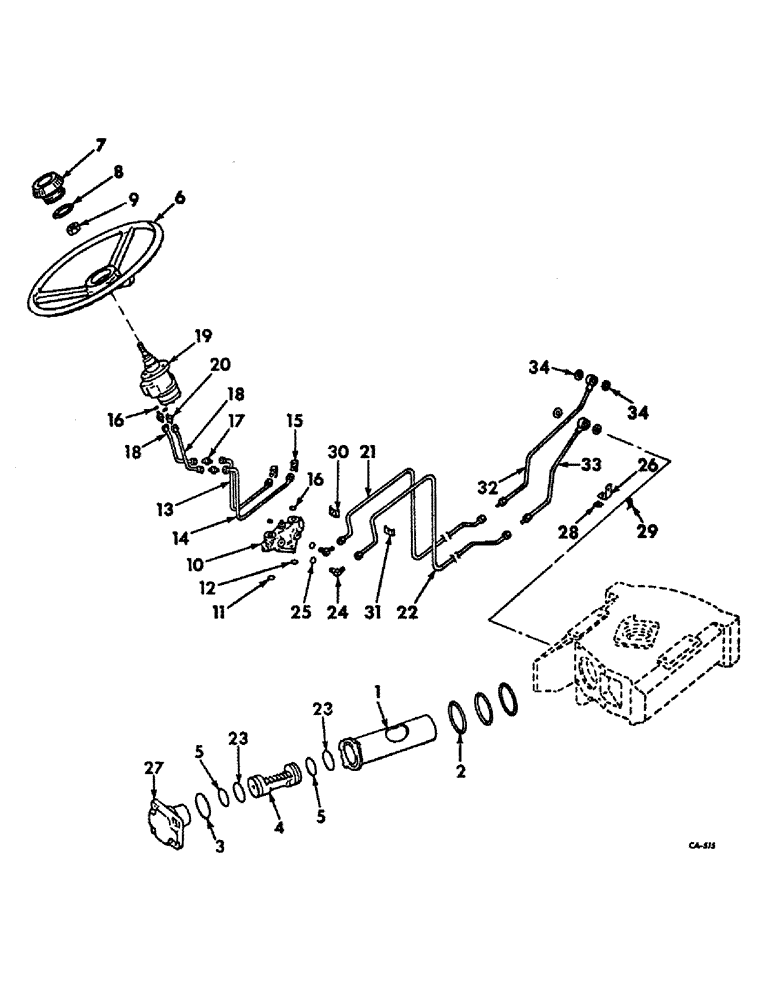

Запчасти Case IH 2826 (10-07) - HYDRAULICS, POWER STEERING, FARMALL TRACTORS (07) - HYDRAULICS

1

367805R2

SLEEVE CYLINDER

SLEEVE, steering cylinder

1шт.

2

254688R1

O-RING,0.21" Thk x 3.85" ID, -344, Cl 5, 75 Duro

3-7/8 x 4-1/4 x 3/16

3шт.

3

384349R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

3-3/4 x 4 x 1/8

1шт.

4

379364R1

PISTON

power steering

1шт.

5

380910R1

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

3 x 3-3/16 x 3/32

2шт.

6

385156R1

WHEEL (STEERING)

WHEEL, 16 in. dia. steering

1шт.

6

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

7

378395R1

CAP

steering wheel

1шт.

8

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32, steering wheel cap

1шт.

9

F19646

LOCK NUT,13/16"-20, Thin

NUT, steering wheel

1шт.

10

527492R91

LOCK VALVE

VALVE ASSY, power steering pilot, for components see list of parts under details of power steering pilot valve

1шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

11

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32, pressure port

1шт.

12

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, return port

1шт.

13

406159R1

TUBE ASSY, valve to hand pump left port lower section, hydrostatic drive tractors

1шт.

13

530379R2

TUBE

ASSY, valve to hand pump left port lower section, gear drive tractors

1шт.

14

406164R1

TUBE

ASSY, valve to hand pump right port lower section, hydrostatic drive tractors

1шт.

14

530380R2

TUBE

ASSY, valve to hand pump right port lower section, gear drive tractors

1шт.

15

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 deg. hyd. flared tube adj. str. thd. 90 deg., valve to hand pump tube, hydrostatic drive tractors

2шт.

15

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION, 3/4-16 37 deg. C-Z hyd flared tube short swivel, valve to hand pump tube, gear drive tractors

2шт.

16

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x .087

4шт.

17

9403216

HYD CONNECTOR,3/4"-16, 37 Degree

UNION, 3/4-16 37 deg C-Z hyd. flared tube, valve to hand pump tube

2шт.

18

406165R2

TUBE ASSY, valve to hand pump upper section, hydrostatic drive tractors

2шт.

18

382578R12

TUBE

ASSY, valve to hand pump upper section, gear drive tractors

2шт.

19

382579R93

PUMP

ASSY, power steering hand, for components see list of parts under details of hydrostatic power steering hand pump

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

4шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

20

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION, 3/4-16 deg. C-Z hyd. flared tube short swivel, upper tube to hand pump

2шт.

21

406166R2

TUBE

ASSY, valve to bolster front port rear section, hydrostatic drive tractors

1шт.

21

396390R1

TUBE

ASSY, valve to bolster front port rear section, gear drive tractors

1шт.

22

406167R2

TUBE

ASSY, valve to bolster rear port rear section, hydrostatic drive tractors

1шт.

534250R1

HOSE

tube bumper

3шт.

22

396392R1

TUBE

ASSY, valve to bolster rear port rear section, gear drive tractors

1шт.

534250R1

HOSE

tube bumper

2шт.

23

378651R1

SEALING RING

RING, rack piston

2шт.

24

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg. hyd. flared tube adj. str. thd. 90 deg., valve to bolster tube

2шт.

25

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, valve to bolster tube elbow

2шт.

26

384484R11

SUPPORT TUBE

SUPPORT ASSY, pressure tube

1шт.

102637

NUT,1/2"-13, G5

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

27

378652R1

HOUSING

COVER, housing end

1шт.

327202R1

BOLT

SCREW, 7/16-14 x 1-7/8 hex-hd. cap

4шт.

183544R1

WASHER

15/32 x 7/8 x 1/8 hardened

4шт.

28

51693D

BAR

WASHER, bevel front frame channel

1шт.

29

381394R1

CLAMP

pressure tube

1шт.

179794

BOLT,Hex, 1/4" - 20 x 11/16"

SCREW, 1/4-20 x 7/8 hex-hd. cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

30

384891R11

CLAMP

STRIP ASSY, hyd. tube clamp

1шт.

179794

BOLT,Hex, 1/4" - 20 x 11/16"

SCREW, 1/4-20 x 11/16 hex-hd. cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

31

384891R1

CLAMP

STRIP, hyd. tubes clamp

1шт.

32

396398R2

TUBE

ASSY, valve to bolster front port front section

1шт.

534250R1

HOSE

tube bumper

1шт.

370922R1

SCREW,Hex, 7/16" - 20 x 1"

pressure tube union

1шт.

588099R1

WASHER

15/32 x 3/4 x 22 ga.

1шт.

33

396508R2

TUBE

ASSY, valve to bolster rear port front section

1шт.

370922R1

SCREW,Hex, 7/16" - 20 x 1"

pressure tube union

1шт.

588099R1

WASHER

15/32 x 3/4 x 22 ga.

1шт.

34

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 x 1/16, pressure tube union

4шт.
