Запчасти Case IH 2826 (08-07) - ELECTRICAL, BATTERY TRAY (06) - ELECTRICAL

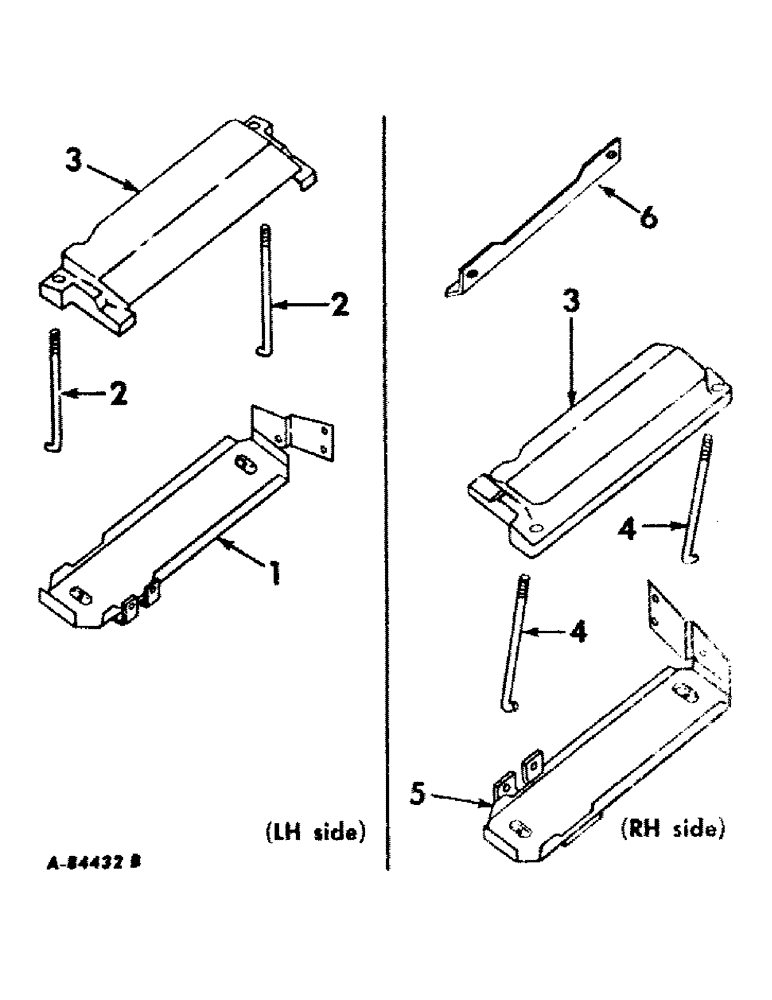

Схема запчастей Case IH 2826 - (08-07) - ELECTRICAL, BATTERY TRAY (06) - ELECTRICAL
6
2
2
4
5
1
3
3
4

Артикул

Название

Примечание

Количество

1

406134R1

TRAY ASSY, battery LH, hydrostatic drive diesel engine tractors

1шт.

1

399048R1

TRAY

ASSY, battery LH, gear drive tractors

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2 for hydrostatic drive tractors Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

NLS

NO LONGER SERVICED

Gear drive tractors Hex, 3/8"-16 x 1 1/2", G5

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

2

377837R1

ROD

battery hold down, hydrostatic drive tractors

2шт.

2

393161R1

ROD

battery hold down, gear drive tractors

2шт.

7500032

BUSHING

NUT, 5/16-18 wing

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .065

2шт.

3

380415R11

COVER

ASSY, battery, carbureted engine tractors, 2 used w/diesel engine tractors

1шт.

4

377837R1

ROD

battery hold down, hydrostatic drive tractors

2шт.

4

393161R1

ROD

battery hold down, gear drive tractors

2шт.

142745

NUT, WING

NUT, 5/16-18 wing

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .065

2шт.

5

406135R1

TRAY ASSY, battery RH, hydrostatic drive tractors

1шт.

5

399055R1

TRAY

ASSY, battery RH, gear drive tractors

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2 for gear drive tractors Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

NLS

NO LONGER SERVICED

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

Hydrostatic drive tractors Hex, 3/8"-16 x 1 1/2", G5

1шт.

311979R1

SCREW

W/NYLON PELLET INSERT, 3/8-16 x 7/8 hex-hd. cap

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

6

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

Выбрано товаров: 23
