Запчасти Case IH 2826 (08-05) - ELECTRICAL, CRANKING MOTOR, DELCO REMY, CARBURETED ENGINE TRACTORS (06) - ELECTRICAL

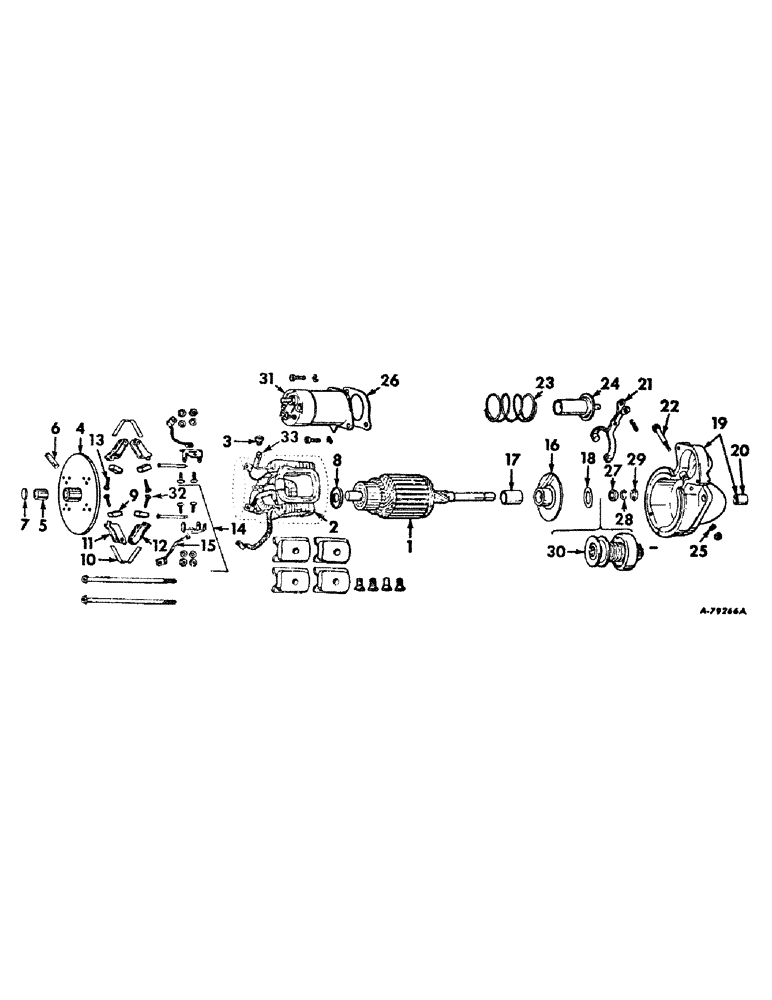

Схема запчастей Case IH 2826 - (08-05) - ELECTRICAL, CRANKING MOTOR, DELCO REMY, CARBURETED ENGINE TRACTORS (06) - ELECTRICAL
33
20
3
15
32
14
8
25
17
30
21
23
2
31
11
13
1
10
22
24
16
29
28
5
7
4
9
12
19
18
27
26
6

Артикул

Название

Примечание

Количество

1108691

MOTOR ASSY, cranking motor, 406131R92, 12 volt

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd. cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

1

1947296

ARMATURE

1шт.

2

1956384

COIL

ASSY, field

1шт.

3

1955946

GROMMET

field frame

1шт.

4

1940385

FUNNEL

FRAME, commutator end

1шт.

5

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

6

1919851

WICK

commutator end

1шт.

7

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

8

1914842

WASHER

commutator end brake

1шт.

9

1946434

BRUSH, COMMUTATOR

BRUSH

4шт.

10

1926622

VALVE SPRING

SPRING, brush

2шт.

11

1940477

HOLDER

brush ground

2шт.

12

1926618

HOLDER

brush insulated

2шт.

13

1959514

SCREW

brush attaching

2шт.

14

1928015

BRACKET

PACKAGE, brush holder support

2шт.

15

1926605

ELECTRICAL WIRE

LEAD, brush ground

2шт.

16

820149

PLATE

ASSY, center bearing

1шт.

1914580

SCREW

center bearing

2шт.

196275

WASHER, center brg. screw lock

2шт.

17

1938596

BUSHING

center bearing

1шт.

18

R15043

WASHER

center brg. and motor drive

1шт.

19

801079

HOUSING ASSY, drive end

1шт.

1916639

WICK, drive end

1шт.

20

1862383

BUSHING

drive end

1шт.

21

1951567

LEVER

shift

1шт.

22

1814529

SCREW, shift lever

1шт.

9428056

NUT, shift lever screw

1шт.

23

1958679

SPRING

plunger return

1шт.

24

1941113

PLUNGER

solenoid switch

1шт.

25

1970988

WASHER

shift lever screw sealing lock

1шт.

26

1952427

GASKET

solenoid switch

1шт.

27

1928021

COLLAR

pinion stop drive end

1шт.

28

1928022

SNAP RING

RING, pinion stop retainer drive end

1шт.

29

1928023

WASHER

COLLAR, drive end spacing

1шт.

30

1851427

DRIVE

ASSY, motor

1шт.

31

1114356

SOLENOID,Starter

SWITCH ASSY, solenoid

1шт.

120622

NUT,#8-32

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

110730

LOCK WASHER

WASHER, 3/8 light lock

1шт.

32

274875

SHAFT

SCREW, brush attaching ground

2шт.

33

1964954

CONNECTOR, Serial Range: field-switch

1шт.

1960908

BOLT (SPREADER)

BOLT, thru

2шт.

1968396

SCREW

pole shoe

8шт.

9427815

SCREW, field lead, Serial Range: attaching-switch

1шт.

Выбрано товаров: 47
