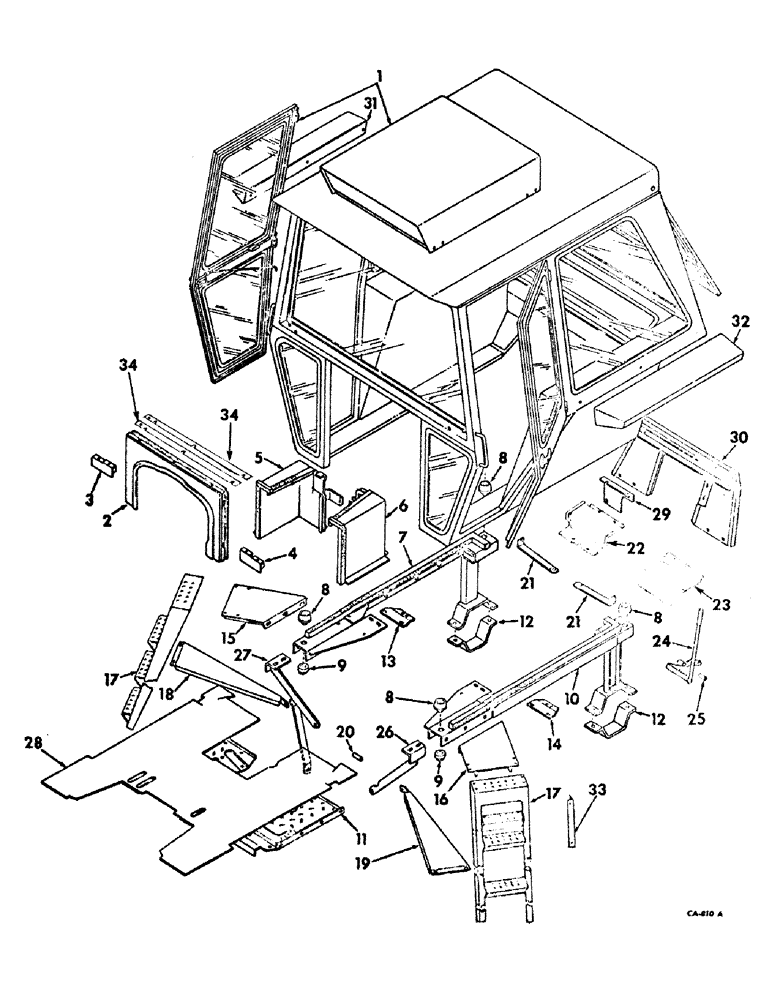

Запчасти Case IH 2826 (13-16) - SUPERSTRUCTURE, TRACTOR CAB AND CONNECTIONS (05) - SUPERSTRUCTURE

1

536040R91

PACKAGE, tractor cab w/o upholstery, consists of tractor cab without upholstery, ref nos 2, 8, 9, 34 and attaching hardware, Farmall tractors w/serial no. 10645 and below, International tractors w/serial no. 7630 and below

1шт.

1

536039R91

PACKAGE, tractor cab w/upholstery, consists of tractor cab with upholstery, ref nos 2, 8, 9, 34 and attaching hardware, Farmall tractors w/serial no. 10646 to 12136, International tractors w/serial no., Serial Range: 7631-7651

1шт.

1

529296R93

CAB ASSY, tractor, Farmall tractors w/serial no. 12137 and above, International tractors w/serial no. 7652 and above

1шт.

PO11454A

BOLT

eye

2шт.

2

529289R2

SHROUD, upper cowl

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16-18 x 3/4 znd hex, washer hd. lock

4шт.

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

5/16-18 x 1-1/4 znd hex, washer hd. lock

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z hex, washer hd. lock

7шт.

3

529150R2

ANGLE, front filled RH

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd. cap

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

529149R2

ANGLE, front fill LH

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd. cap

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

529291R2

COVER, battery RH

1шт.

6

529290R3

COVER, battery LH

1шт.

7

529052R1

MOUNT, right main

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd. cap, Farmall tractors

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd. cap, International tractors

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

8шт.

8

529147R2

MOUNT, rubber shock

4шт.

9

529148R2

WASHER, rebound

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex

8шт.

271730

SWASH PLATE,Hex, 5/8" - 11 x 3 3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 znd hex-hd. cap

4шт.

651282R1

WASHER, 11/16 x 1-1/2 x .10 ga. CDP

8шт.

10

529051R1

MOUNT, left main

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd. cap, Farmall tractors

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd. cap, International tractors

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

8шт.

11

406279R4

PLATFORM, rear frame

1шт.

432416

PLUG,5/16"

5/16 C-Z button

5шт.

12

529053R1

CLAMP, axle carrier

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

180193

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

SCREW, 1/2-13 x 3-3/4 znd hex-hd. cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

13

529134R1

TIE PLATE, right

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd. cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

8шт.

14

529054R1

TIE PLATE, left

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd. cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

8шт.

15

529135R1

MOUNT, right step

1шт.

120377

NUT,3/8" - 16, Gr 5

7шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd. cap

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

7шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

7шт.

16

529136R1

MOUNT, left step

1шт.

120377

NUT,3/8" - 16, Gr 5

7шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd. cap

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

7шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

7шт.

17

529137R1

STEP, formed

2шт.

18

529139R2

BRACE, right step

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd. cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

2шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 znd hex-hd. cap

1шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, 5/8-11 x 4 znd hex-hd. cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

19

529138R2

BRACE, left step

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd. cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

2шт.

20

364030R1

SPACER

3/4 x 1-1/2 extra strong pipe

1шт.

21

529140R1

BRACE, rear

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 znd hex-hd cap

2шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, 5/8-11 x 4 znd hex-hd. cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

22

529142R3

PANEL, right rear

1шт.

120376

NUT,5/16"-18, G5

4шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd. cap

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

23

529141R2

PANEL, left rear

1шт.

120376

NUT,5/16"-18, G5

4шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd. cap

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

24

529143R1

LEVER

ASSY, IPTO

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 znd hex-hd. cap

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga. C-Z

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

25

529144R1

SPACER

BUSHING, IPTO lever

1шт.

26

529145R1

BRACE, left frt.

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd. cap

2шт.

275250R1

SCREW, 5/8-11 x 2-1/4 12 pt. hd-cap

1шт.

12258

ELECTRIC CABLE

WASHER, 21/32 x 1-1/4 x 11 ga.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

27

529146R11

BRACE ASSY, right front

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 and hex-hd. cap

2шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 znd hex-hd. cap

1шт.

88691

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5, Full Thd

Hex, 3/4"-10 x 1-1/4", G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

21211R1

WASHER

25/32 x 1-1/2 x 7 ga. C-z

1шт.

28

529151R2

MAT

floor

1шт.

29

529152R2

PANEL, rear filler

1шт.

30

129153R2

PANEL, lower rear

1шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051

2шт.

31

529295R1

FENDER ASSY, RH

1шт.

120376

NUT,5/16"-18, G5

3шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd. cap

3шт.

120379

WASHER, 5/16 C-Z med. lock

3шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

3шт.

32

529294R1

FENDER ASSY, LH

1шт.

120376

NUT,5/16"-18, G5

3шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 3/4 znd hex-hd. cap

3шт.

120377

NUT,3/8" - 16, Gr 5

WASHER, 5/16 C-Z med. lock

3шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

3шт.

33

533541R1

ANGLE, step LH

2шт.

33

533542R1

ANGLE, step RH

2шт.

34

535745R1

SHIM, upper cowl shroud

2шт.

2751847R1

PRODUCT GRAPHIC

IH emblem

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

14шт.

385059R1

SCREW,Cross Flat Hd, #10 - 24 x 7/8"

10-24 x 7/8 cr-rec-flt-hd. mach

4шт.

533540R91

PARTS ACCESSORY, two piece step, for tractors equipped with cab and front mounted cultivators, consists of (2) angle, LH 533541R1, (2) angle, RH 533542R1, (12) nut 120377, (12) screw 180120, (12) washer 120382

1шт.
